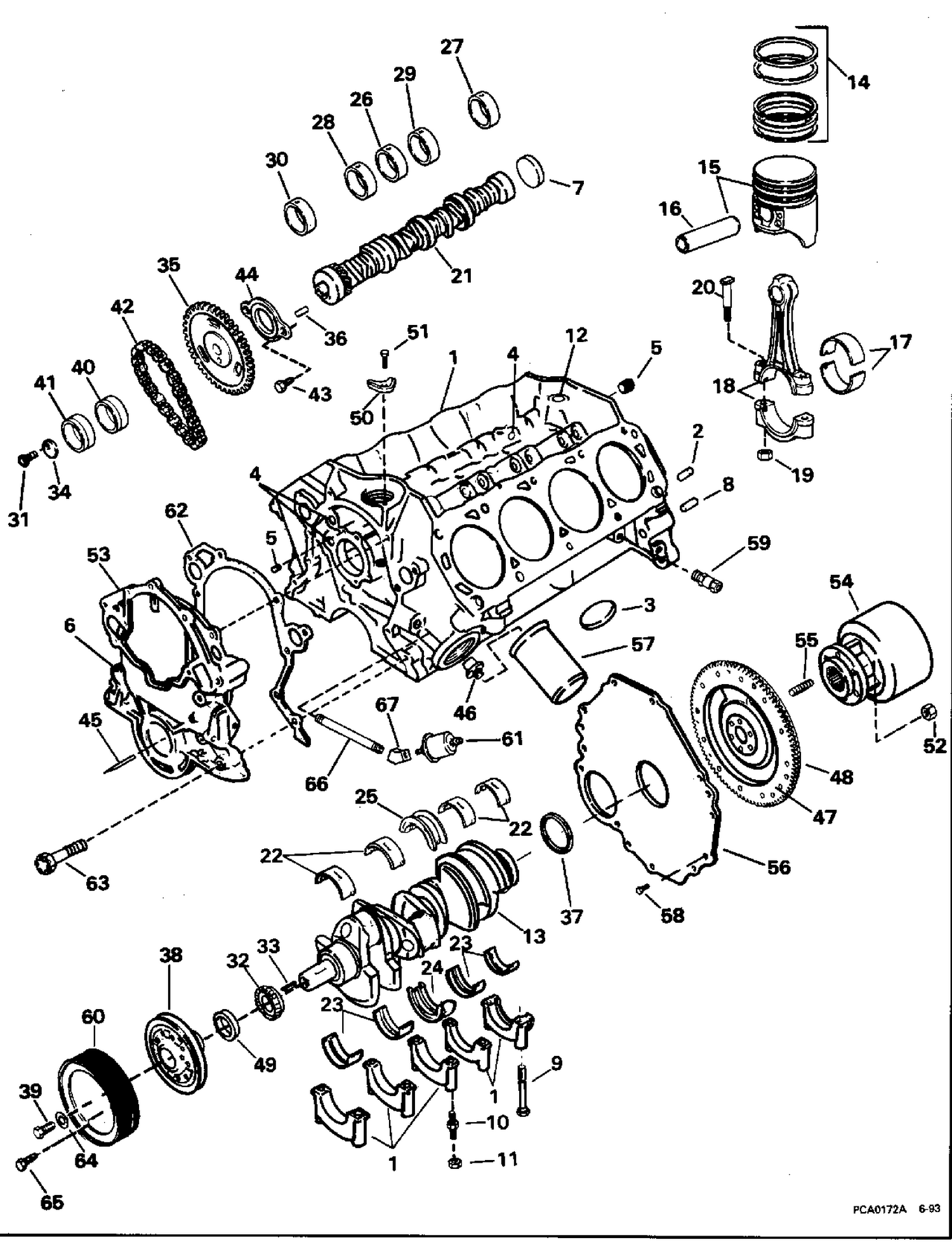

| Ref | Part Number | Description |
|---|
| 1 |
3853892 |
PARTIAL ENGINE |
| 2 |
3853007 |
DOWEL, Cylinder head |
| 3 |
3852650 |
PLUG, Core hole |
| 4 |
3853008 |
PLUG, Oil level hole |
| 5 |
3853108 |
PLUG, Oil gallery |
| 6 |
3853008 |
PLUG, Oil level hole |
| 7 |
3852766 |
PLUG, Rear, cam, standard |
| 7 |
3853009 |
PLUG, Rear, cam, 0.60 in. O.S. |
| 8 |
3853076 |
DOWEL, Adapter to block |
| 9 |
3853065 |
BOLT, Main cap |
| 10 |
3853066 |
STUD, Main cap |
| 11 |
3853026 |
NUT, Main cap |
| 12 |
3853010 |
PLUG, Oil gallery |
| 13 |
3852792 |
CRANKSHAFT |
| 14 |
3853844 |
RING SET, 0.020 in. O.S. |
| 14 |
3853879 |
RING SET, 0.030 in. O.S. |
| 14 |
3853885 |
RING SET, 0.040 in. O.S. |
| 14 |
3853900 |
RING SET, Standard |
| 15 |
3853846 |
PISTON ASSY., 0.003 in. O.S. |
| 15 |
3853876 |
PISTON ASSY., 0.020 in. O.S. |
| 15 |
3853878 |
PISTON ASSY., 0.040 in. O.S. |
| 15 |
3857019 |
Piston Ay. This part replaces 3853897. |
| 15 |
3857020 |
Piston Ay. This part replaces 3853896. |
| 15 |
3857022 |
Piston Ay. This part replaces 3853877. |
| 16 |
3852773 |
PIN, Piston, standard |
| 17 |
3852775 |
BEARING, Rod, standard |
| 17 |
3853039 |
BEARING, Rod, 0.001 in. U.S. |
| 17 |
3853040 |
BEARING, Rod, 0.002 in. U.S. |
| 17 |
3853041 |
BEARING, Rod, 0.010 in. U.S. |
| 17 |
3853042 |
BEARING, Rod, 0.020 in. U.S. |
| 17 |
3853043 |
BEARING, Rod, 0.030 in. U.S. |
| 17 |
3853044 |
BEARING, Rod, 0.040 in. U.S. |
| 18 |
3853901 |
CONNECTING ROD |
| 19 |
3852777 |
NUT, Connecting rod |
| 20 |
3852776 |
BOLT, Connecting rod |
| 21 |
3852778 |
CAMSHAFT |
| 22 |
3853045 |
BRG., Main, upper, 0.001 in. U.S. |
| 22 |
3853046 |
BRG., Main, upper, 0.002 in. U.S. |
| 22 |
3853048 |
BRG., Main, upper, 0.020 in. U.S. |
| 22 |
3853049 |
BRG., Main, upper, 0.030 in. U.S. |
| 22 |
3858945 |
Bearing Kit This part replaces 3852797. |
| 22 |
3858946 |
Main Brg Kit .010 This part replaces 3853047. |
| 23 |
3853050 |
BRG., Main, lower, 0.001 in. U.S. |
| 23 |
3853051 |
BRG., Main, lower, 0.002 in. U.S. |
| 23 |
3853053 |
BRG., Main, lower, 0.020 in. U.S. |
| 23 |
3853054 |
BRG., Main, lower, 0.030 in. U.S. |
| 23 |
3858945 |
Bearing Kit This part replaces 3852798. |
| 23 |
3858946 |
Main Brg Kit .010 This part replaces 3853052. |
| 24 |
3853060 |
BEARING, Main, center, lower, 0.001 in. U.S. |
| 24 |
3853061 |
BEARING, Main, center, lower, 0.002 in. U.S. |
| 24 |
3853063 |
BEARING, Main, center, lower, 0.020 in. U.S. |
| 24 |
3853064 |
BEARING, Main, center, lower, 0.030 in. U.S. |
| 24 |
3858945 |
Bearing Kit This part replaces 3852800. |
| 24 |
3858946 |
Main Brg Kit .010 This part replaces 3853062. |
| 25 |
3853055 |
BEARING, Main, center, upper, 0.001 in. U.S. |
| 25 |
3853056 |
BEARING, Main, center, upper, 0.002 in. U.S. |
| 25 |
3853058 |
BEARING, Main, center, upper, 0.020 in. U.S. |
| 25 |
3853059 |
BEARING, Main, center, upper, 0.030 in. U.S. |
| 25 |
3858945 |
Bearing Kit This part replaces 3852799. |
| 25 |
3858946 |
Main Brg Kit .010 This part replaces 3853057. |
| 26 |
3852781 |
BEARING, Center, standard |
| 26 |
3853019 |
BEARING, Center, 0.015 in. U.S. |
| 27 |
3852782 |
BEARING, Rear, standard |
| 27 |
3853020 |
BEARING, Rear, 0.015 in. U.S. |
| 28 |
3852783 |
BEARING, Front intermediate, std. |
| 28 |
3853022 |
BEARING, Front intermediate, 0.015 in. U.S. |
| 29 |
3852784 |
BEARING, Rear intermediate, std. |
| 29 |
3853023 |
BEARING, Rear intermediate, 0.015 in. U.S. |
| 30 |
3852780 |
BEARING, Front, standard |
| 30 |
3853018 |
BEARING, Front, 0.015 in. U.S. |
| 31 |
3852791 |
BOLT, Eccentric |
| 32 |
3852794 |
SPROCKET, Crankshaft |
| 33 |
3852795 |
KEY, Sprocket |
| 34 |
3852790 |
WASHER, Camshaft sprocket |
| 35 |
3852785 |
SPROCKET, Camshaft |
| 36 |
3852786 |
DOWEL PIN |
| 37 |
3852805 |
OIL SEAL, Rear |
| 38 |
3853905 |
DAMPER, Crankshaft |
| 38 |
3855196 |
DAMPER, Crankshaft |
| 39 |
3853021 |
BOLT, Damper |
| 40 |
3852673 |
ECCENTRIC, Fuel pump, outer |
| 41 |
3852789 |
ECCENTRIC, Fuel pump, inner |
| 42 |
3853903 |
CHAIN, Timing |
| 43 |
3852788 |
BOLT, Oil pump to block |
| 44 |
3852787 |
PLATE, Standard |
| 44 |
3853024 |
PLATE, 0.002 in. O.S. |
| 44 |
3853025 |
PLATE, 0.004 in. O.S. |
| 45 |
3852768 |
POINTER, Timing |
| 46 |
3853035 |
INSERT, Oil filter |
| 47 |
3853953 |
FLYWHEEL |
| 48 |
3852804 |
RING GEAR, Flywheel |
| 49 |
3853827 |
OIL SEAL, Front cover |
| 50 |
3853078 |
CLAMP, Distributor |
| 51 |
3853077 |
SCREW & WASHER, Clamp |
| 52 |
3853273 |
LOCKNUT, Coupler |
| 53 |
3853893 |
COVER, Front |
| 54 |
3853862 |
COUPLING, Flywheel |
| 55 |
3853274 |
STUD, Coupler |
| 56 |
3853003 |
COVER, Flywheel |
| 57 |
0502900 |
OIL FILTER This part replaces 0173231. |
| 58 |
3852421 |
SCREW, Baffle |
| 59 |
3854494 |
PETCOCK, Water drain |
| 60 |
3854188 |
PULLEY, Crankshaft |
| 60 |
3855088 |
PULLEY, Crankshaft |
| 61 |
3853800 |
OIL PRESSURE SENDER |
| 62 |
3852767 |
GASKET, Front cover |
| 63 |
3853011 |
BOLT, Front cover, 2 in. |
| 63 |
3853012 |
BOLT, Cover to block, 1 3/4 in. |
| 63 |
3853013 |
BOLT, Front cover, 2 1/4 in. |
| 63 |
3853014 |
BOLT, Front cover, 2 1/2 in. |
| 64 |
3853075 |
WASHER, Damper |
| 65 |
3853557 |
SCREW, Brace to alterntr bracket |
| 66 |
3852711 |
FITTING, Sending unit |
