Parts Catalog

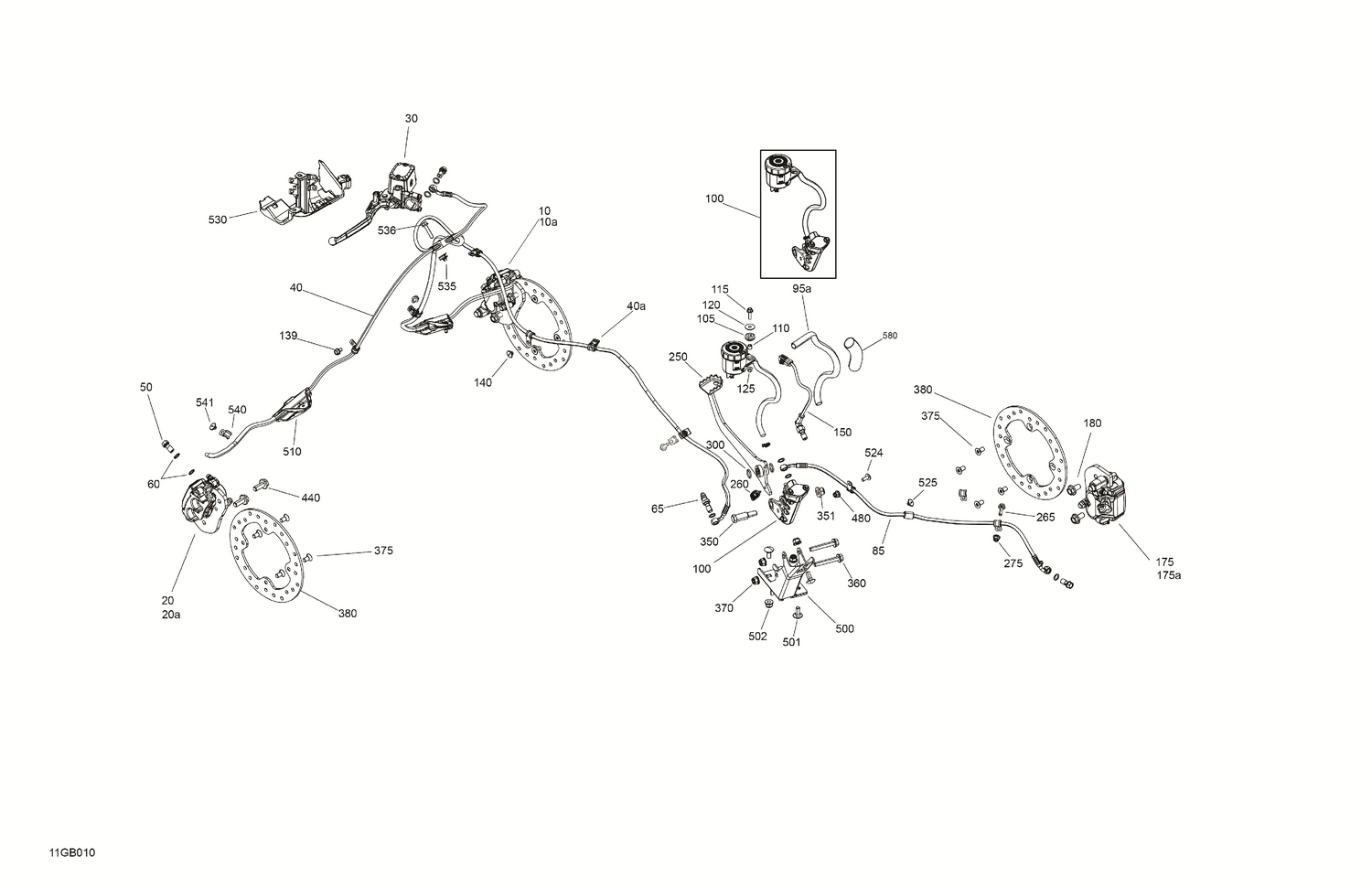

03- Mechanic - Brake System

Parts (47)

Ref	Part Number	Description
10	705600861	RH Front Caliper Ass'y
10a	705601014	RH Organic Brake Pad Kit
20	705600862	LH Front Caliper Ass'y
20a	705601015	LH Organic Brake Pad Kit
30	705601430	LH Front Master Cylinder
40	705601524	Front Hose
50	705600609	Banjo Bolt (M10 x 1.25 thread)
60	705601628	Copper Washer
65	705601051	Bleeding Screw
85	705601302	RH Rear Hose
95a	219704407	Tubing 10 MM 1000MM Long
100	705601273	Rear Master Cylinder
105	414036300	Grommet
110	293900112	Bushing
115	207652044	Hex.Flange Screw M5 X 20
120	224060201	Flat Washer
125	233251434	Flange Elastic Nut M5
139	210261640	Hex. Flange Screw M6 X 16
140	390406500	Pop Rivet 3/16"
150	705601250	Brake Switch
175	705602190	RH Rear Brake Caliper This part replaces 705600859.
175a	705601014	RH Organic Brake Pad Kit
180	207502046	Hex. Flange Screw M10 X 20
250	705602163	Deep Black, Brake Pedal This part replaces 705601155.
260	705600792	Brake Pedal Spring
265	207662044	Hex. Flange Screw M6 X 20
275	233261414	Hex. Flange Elastic Nut M6 x 1.0
300	293300144	O-Ring
350	250000513	Shoulder Screw M10
351	233201436	Hex. Flange Elastic Nut M10
360	207685544	Hex. Flange Screw M8 X 55
370	233281414	Hex. Flange Elastic Nut M8
375	235381646	Torx Screw M8 X 16, Scotch Grip
380	705601997	Disc Brake This part replaces 705600999.
440	207502546	Hex. Flange Screw M10 X 25
480	233261414	Hex. Flange Elastic Nut M6 x 1.0
500	705202000	Brake Pedal Bracket
501	207782044	Carriage Bolt, M8 X 20
502	233281414	Hex. Flange Elastic Nut M8
510	705602016	Front Hose Guard
524	250000755	Torx Screw M6 X 16
525	390402400	Pop Rivet 3/16"
530	705600983	Front Hose Bracket
535	250100198	Panel Nut M6 X 1.0
536	207563044	Hex. Flange Screw M6 X 30, Scotch Grip
540	518321570	Open Clamp
541	390402300	Pop Rivet 3/16"
