| Ref | Part Number | Description |
|---|
| 1 |
0987519 |
CONNECTOR & LEAD, Oil |
| 3 |
0914975 |
COVER, Terminal |
| 6 |
0987520 |
CONNECTOR & LEAD, Temperature |
| 9 |
3853478 |
SEAL, Temperature switch This part replaces 0915237. |
| 10 |
3853479 |
TERMINAL, Temperature switch This part replaces 0915238. |
| 11 |
3853480 |
HOUSING, Knock sensor This part replaces 0915239. |
| 12 |
0379948 |
SCREW, Retainer to adapter |
| 13 |
3854711 |
SWITCH, Water temperature This part replaces 0986888. |
| 14 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 15 |
0311069 |
GASKET, Housing |
| 16 |
0313416 |
GASKET, Thermostat |
| 17 |
0314809 |
GASKET |
| 18 |
3852610 |
TEE, Oil pressures This part replaces 0912751. |
| 19 |
3854254 |
HOUSING & PLUG ASSY This part replaces 0987533. |
| 0987524 |
0987524 |

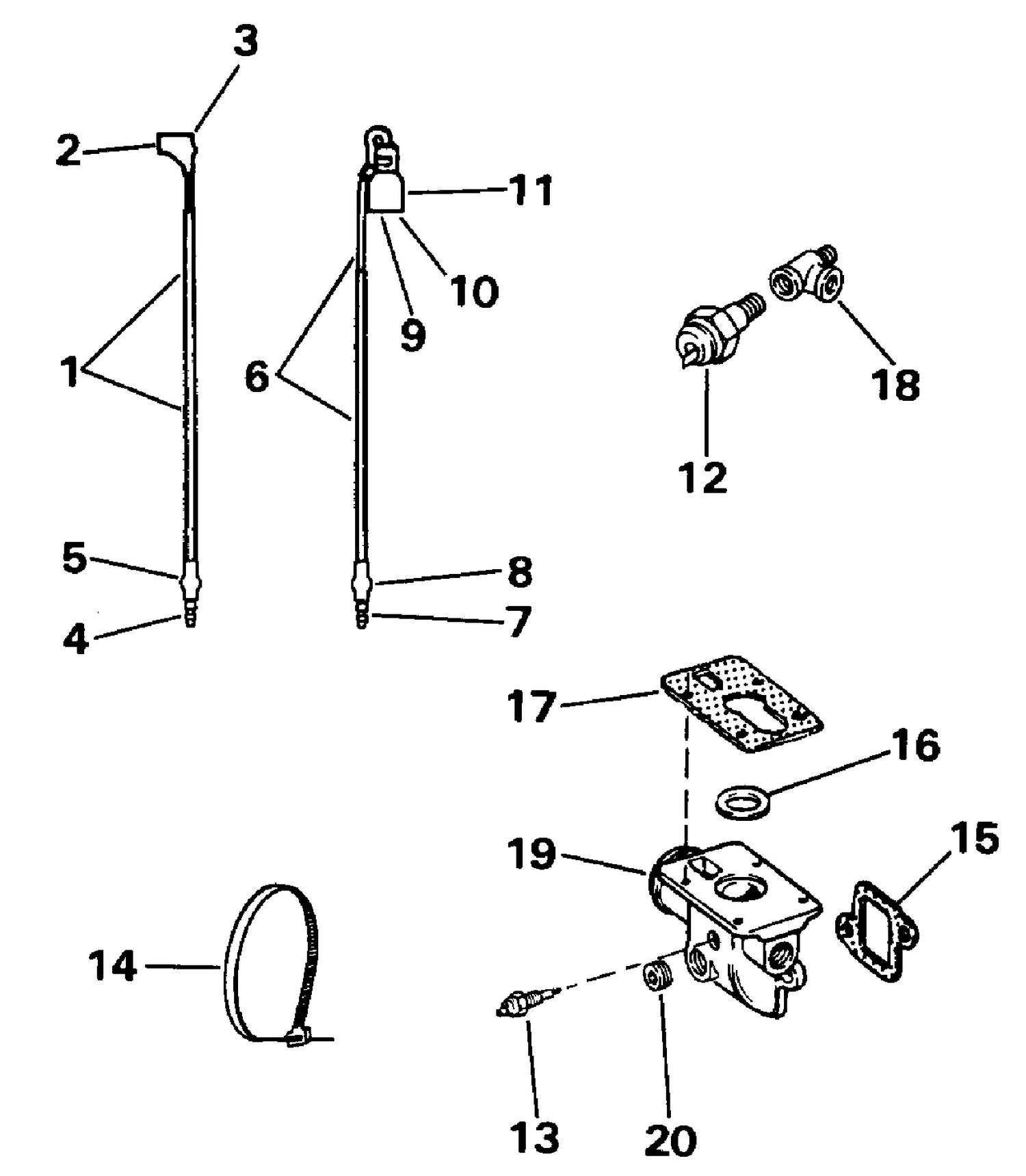

AUDIBLE WARNING KIT |
