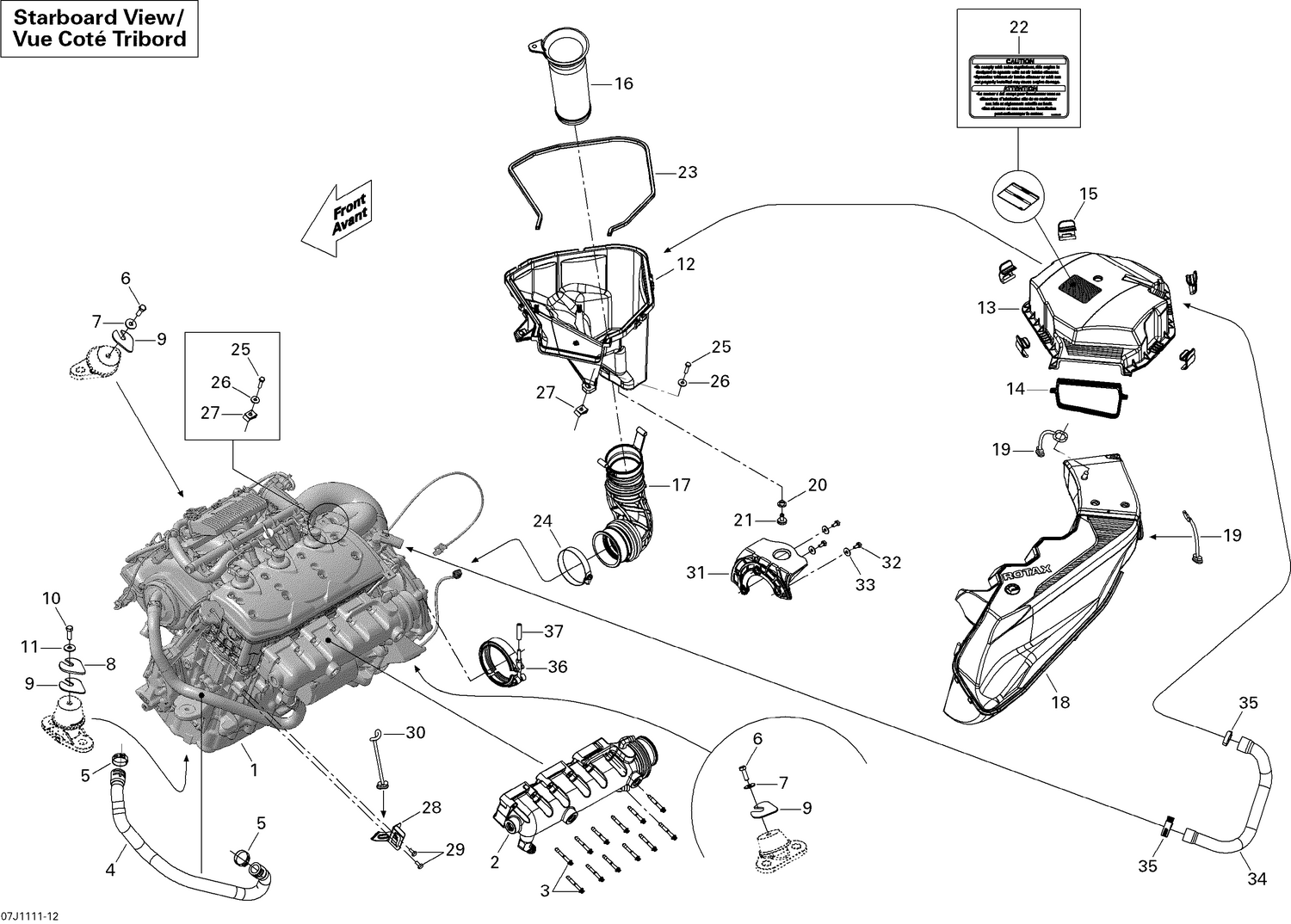

| Ref | Part Number | Description |
|---|
| 1 |
420150394 |
Engine Long Block This part replaces 420150338. |
| 2 |
296000422 |
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001434. |
| 3 |
420641198 |
Torx Flange Screw M6 X 45 |
| 4 |
420822173 |
FORMED HOSE - Call your local BRP dealership |
| 5 |
293650217 |
Crimp Clamp |
| 6 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 7 |
234082600 |
Flat Washer 8 mm, Stainless |
| 8 |
270000025 |
SHIM 1.3 MM - Call your local BRP dealership |
| 9 |
270000024 |
SHIM 0.4 MM - Call your local BRP dealership |
| 10 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 11 |
234082600 |
Flat Washer 8 mm, Stainless |
| 12 |
273000250 |
AIR SILENCER LOW - Call your local BRP dealership |
| 13 |
273000249 |
Air Silencer Upper |
| 14 |
293250190 |
SEAL - Call your local BRP dealership |
| 15 |
269501718 |
Clip |
| 16 |
273000359 |
Intake Hose This part replaces 273000252. |
| 17 |
273000251 |
CONNECTOR HOSE - Call your local BRP dealership |
| 18 |
273000253 |
INTAKE TUBE - Call your local BRP dealership |
| 19 |
269501299 |
Strap |
| 20 |
293720064 |
GROMMET - Call your local BRP dealership |
| 21 |
275500454 |
CHECK VALVE - Call your local BRP dealership |
| 22 |
219902673 |
Caution Decal, Air Silencer |
| 23 |
293200123 |
NEOPRENE SEAL - Call your local BRP dealership |
| 24 |
293650179 |
Tridon Clamp |
| 25 |
207362560 |
Hex. Screw M6 X 25, Scotch Grip |
| 26 |
234062600 |
Flat Washer M6, Stainless |
| 27 |
420942108 |
Panel Nut M6 X 1 |
| 28 |
273000260 |
AIR BOX BRACKET - Call your local BRP dealership |
| 29 |
207361260 |
Hex. Screw M6 X 12, Scotch Grip |
| 30 |
273000261 |
Strap |
| 31 |
270000735 |
AIR BOX SUPPORT - Call your local BRP dealership |
| 32 |
207361260 |
Hex. Screw M6 X 12, Scotch Grip |
| 33 |
234062600 |
Flat Washer M6, Stainless |
| 34 |
270000948 |
FORMED HOSE - Call your local BRP dealership This part replaces 270000807. |
| 35 |
293650051 |
Tridon Gear Clamp |
| 36 |
274001417 |
Exhaust Clamp |
