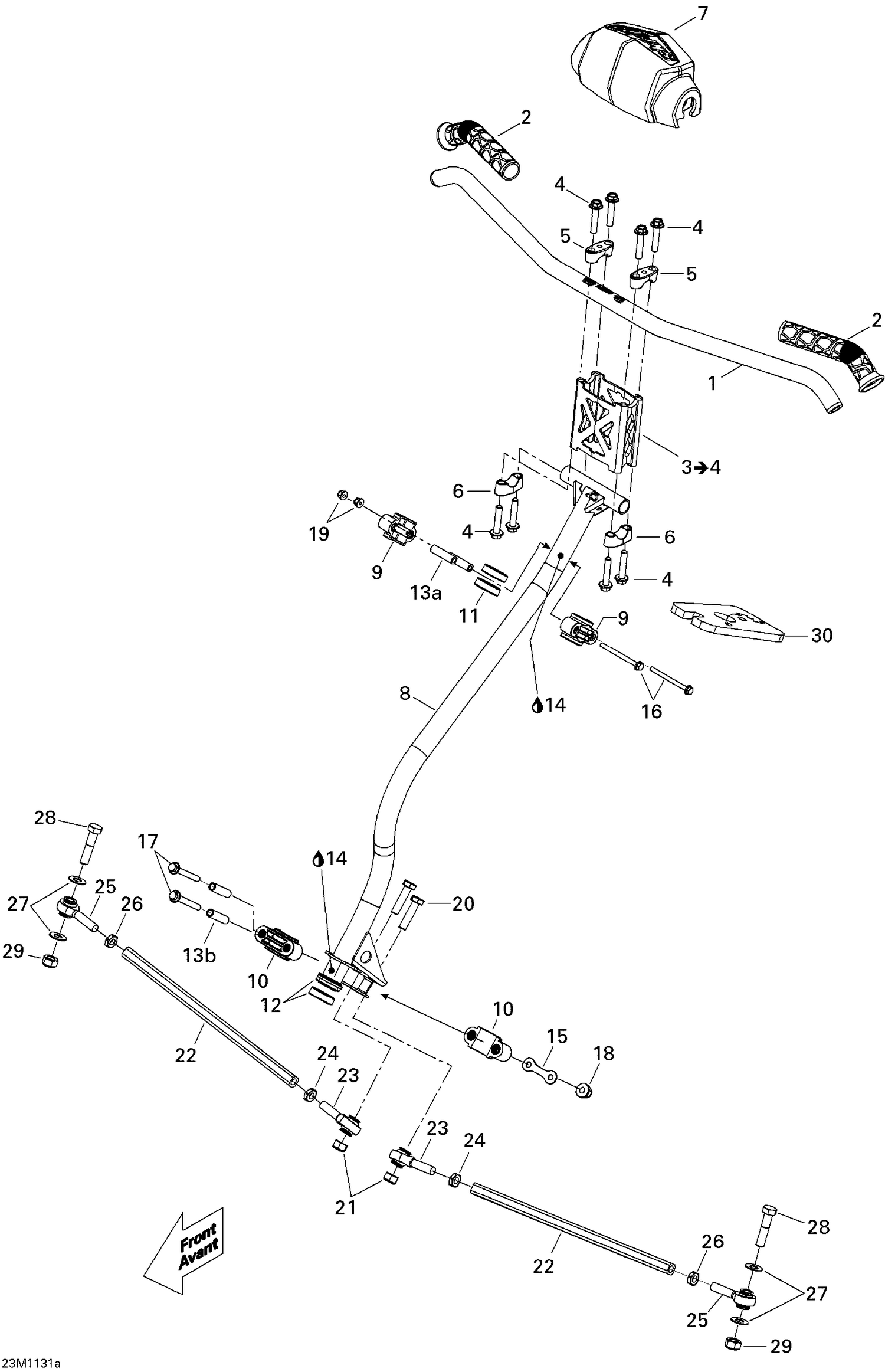

07- Steering STD
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506152710 | BLACK HANDLE BAR - Call your local BRP dealership This part replaces 506152362. |
| 2 | 506152486 | Grip This part replaces 506152226. |
| 4 | 250000285 | Hex. Flange Screw M8 x 40 |
| 5 | 506152751 | Steering Support This part replaces 506152395. |
| 6 | 506152751 | Steering Support This part replaces 506152395. |
| 7 | 506152192 | Steering Pad |
| 8 | 506152963 | Steering Column This part replaces 506152473. |
| 9 | 506152508 | Upper Half-Housing |
| 10 | 506152217 | Lower Half-Housing |
| 11 | 506152509 | Upper Anti-Vibration Gasket |
| 12 | 506152518 | Lower Vibration Ring |
| 13a | 506152297 | Housing Bushing |
| 13b | 506152388 | Lower Housing Bushing |
| 14 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 15 | 506152389 | Stopper Plate |
| 16 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 17 | 207686534 | Hex. Flange Screw M8 x 65 |
| 18 | 233281414 | Hex. Flange Elastic Nut M8 |
| 19 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 20 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 21 | 232500416 | Elastic Stop Nut M10 |
| 22 | 506152377 | ROD_LINK - Call your local BRP dealership |
| 23 | 506152081 | LH Thread Ball Joint |
| 24 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 25 | 506152019 | RH Threaded Ball Joint |
| 26 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 27 | 506152194 | Washer |
| 28 | 207004544 | Hex. Screw M10 X 45 |
| 29 | 232500416 | Elastic Stop Nut M10 |
