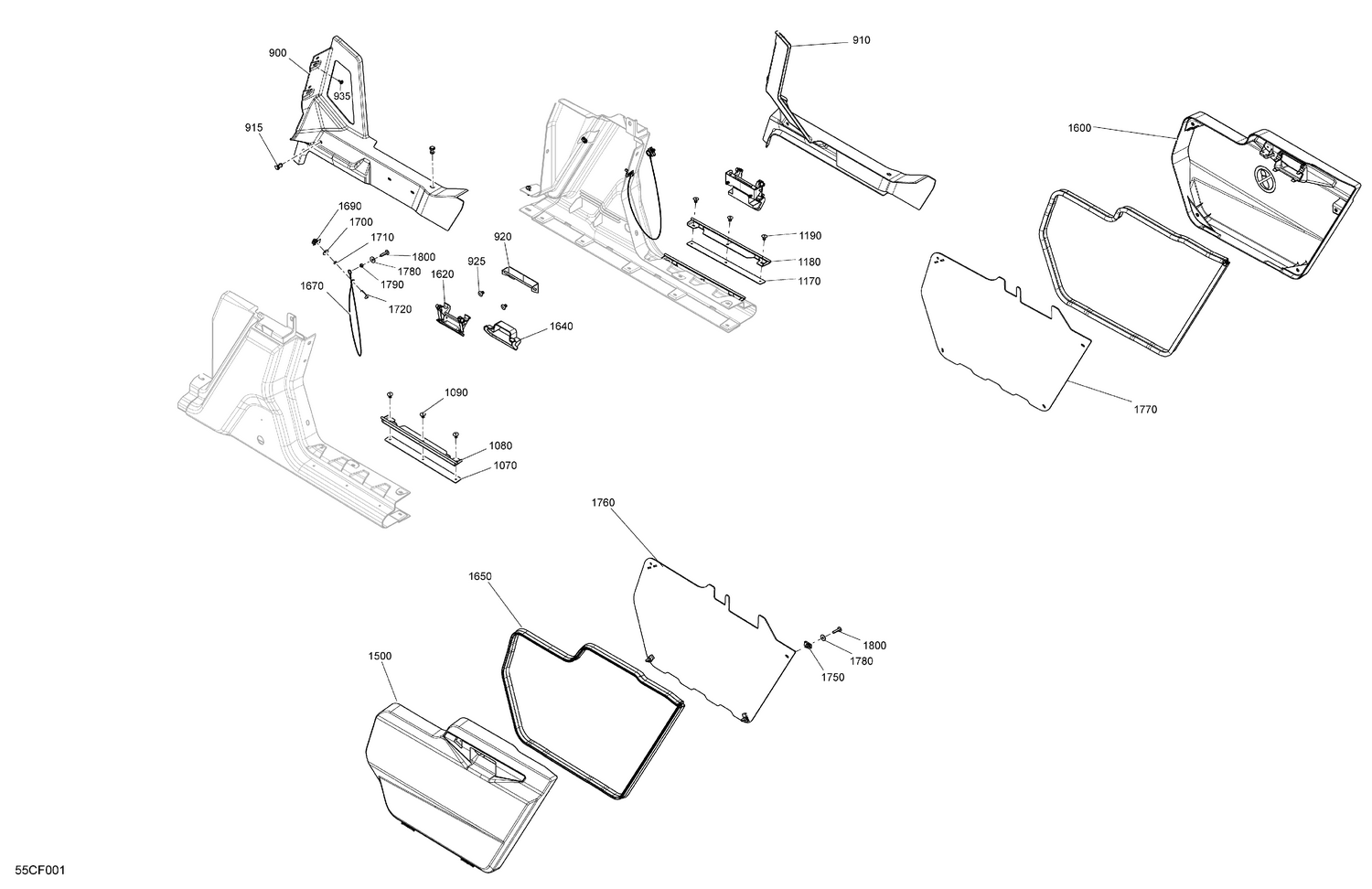

| Ref | Part Number | Description |
|---|
| 900 |
705014160 |
LH Central Body Panel |
| 910 |
705014161 |
RH Central Body Panel |
| 915 |
293150230 |
Tuflok Plastic Rivet |
| 920 |
705018362 |
Deep Black, Pivot Support |
| 925 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 935 |
250000720 |
Torx Screw K50 X 16 |
| 1070 |
705014755 |
Reinforcement Panel |
| 1080 |
705018363 |
Deep Black, Pivot Support |
| 1090 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 1170 |
705014755 |
Reinforcement Panel |
| 1180 |
705018363 |
Deep Black, Pivot Support |
| 1190 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 1500 |
705014162 |
Deep Black, LH Rear Door Panel |
| 1600 |
705014163 |
Deep Black, RH Rear Door Panel |
| 1620 |
269003103 |
Seat Latch |
| 1640 |
705014752 |
Latch Trim |
| 1650 |
219704387 |
Gasket 4100Mm Long |
| 1670 |
705014763 |
Cable Retaining |
| 1690 |
250100198 |
Panel Nut M6 X 1.0 |
| 1700 |
234062670 |
Stainless Steel Flat Washer |
| 1710 |
708300737 |
Bushing |
| 1720 |
250000807 |
Torx Truss Screw M6 X 25 |
| 1750 |
250100198 |
Panel Nut M6 X 1.0 |
| 1760 |
705015379 |
LH Reinforcement Panel |
| 1770 |
705015380 |
RH Reinforcement Panel |
| 1780 |
234062670 |
Stainless Steel Flat Washer |
| 1790 |
708300737 |
Bushing |
