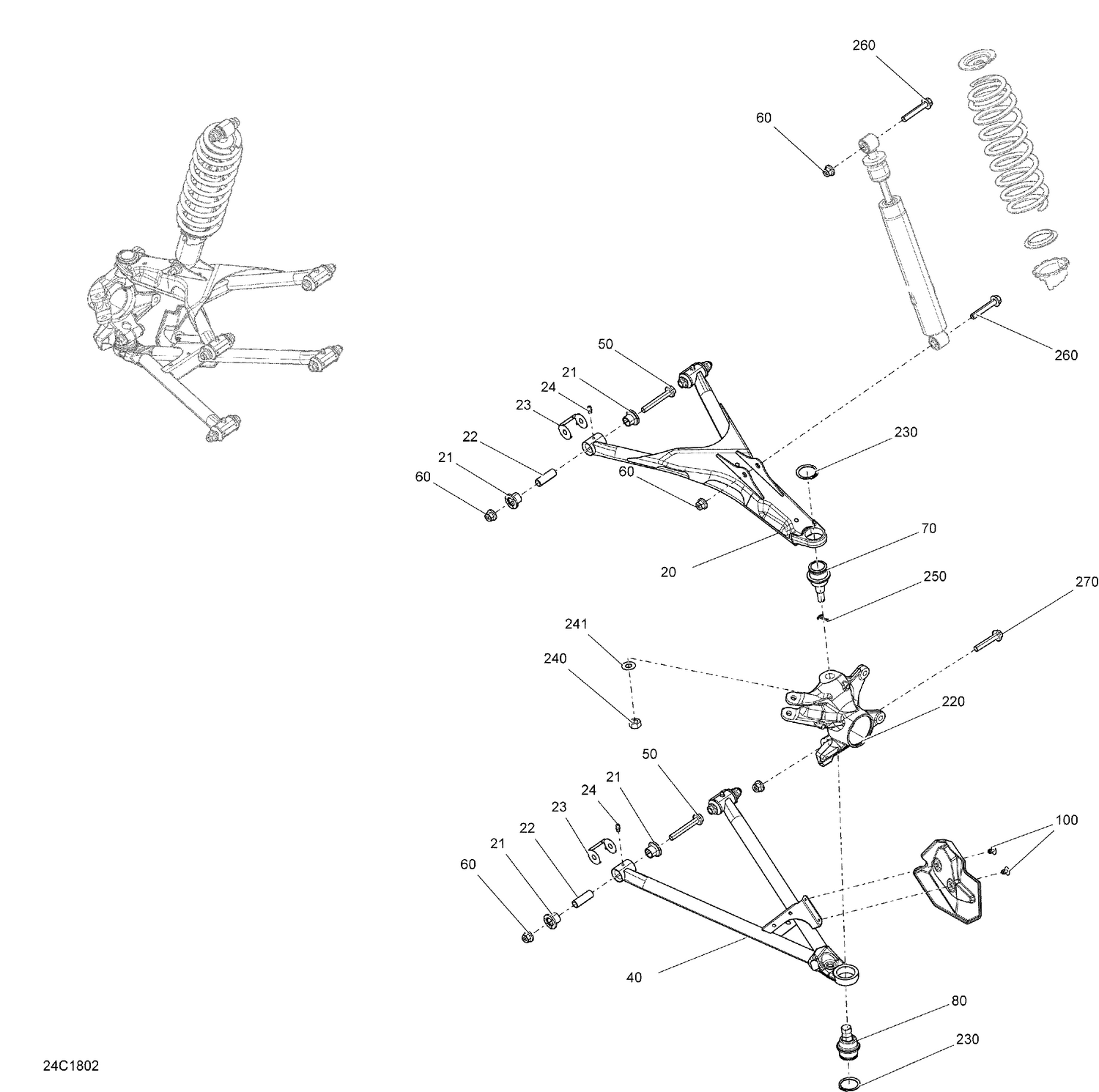

07- Front Suspension Defender - XTP
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 706203257 | Red, LH Front Upper Suspension Arm |
| 20 | 706203258 | Red, RH Front Upper Suspension Arm |
| 21 | 703500875 | Suspension Arm Bushing Kit This part replaces 706202088. |
| 22 | 703500875 | Suspension Arm Bushing Kit |
| 23 | 703500875 | Suspension Arm Bushing Kit |
| 24 | 408200700 | Grease Fitting |
| 40 | 706203045 | Red, LH Front Lower Suspension Arm |
| 40 | 706203046 | Red, RH Front Lower Suspension Arm |
| 50 | 207607046 | Hex. Flange Screw M10 X 70 |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 |
| 70 | 706203084 | Ball Joint |
| 80 | 706202045 | Ball Joint |
| 100 | 293150104 | Pop Rivet 3/16" |
| 160 | 706202134 | LH CV joint Guard |
| 160 | 706202135 | RH CV joint Guard |
| 220 | 706205047 | RH Knuckle This part replaces 706202028. |
| 220 | 706205517 | LH Knuckle This part replaces 706202027. |
| 230 | 293370035 | Circlip |
| 240 | 250100099 | Nut M12 |
| 241 | 706200281 | Hardened Washer This part replaces 250200086. |
| 250 | 211400017 | Cotter Pin |
| 260 | 207606046 | Hex. Flange Screw M10 X 6 |
