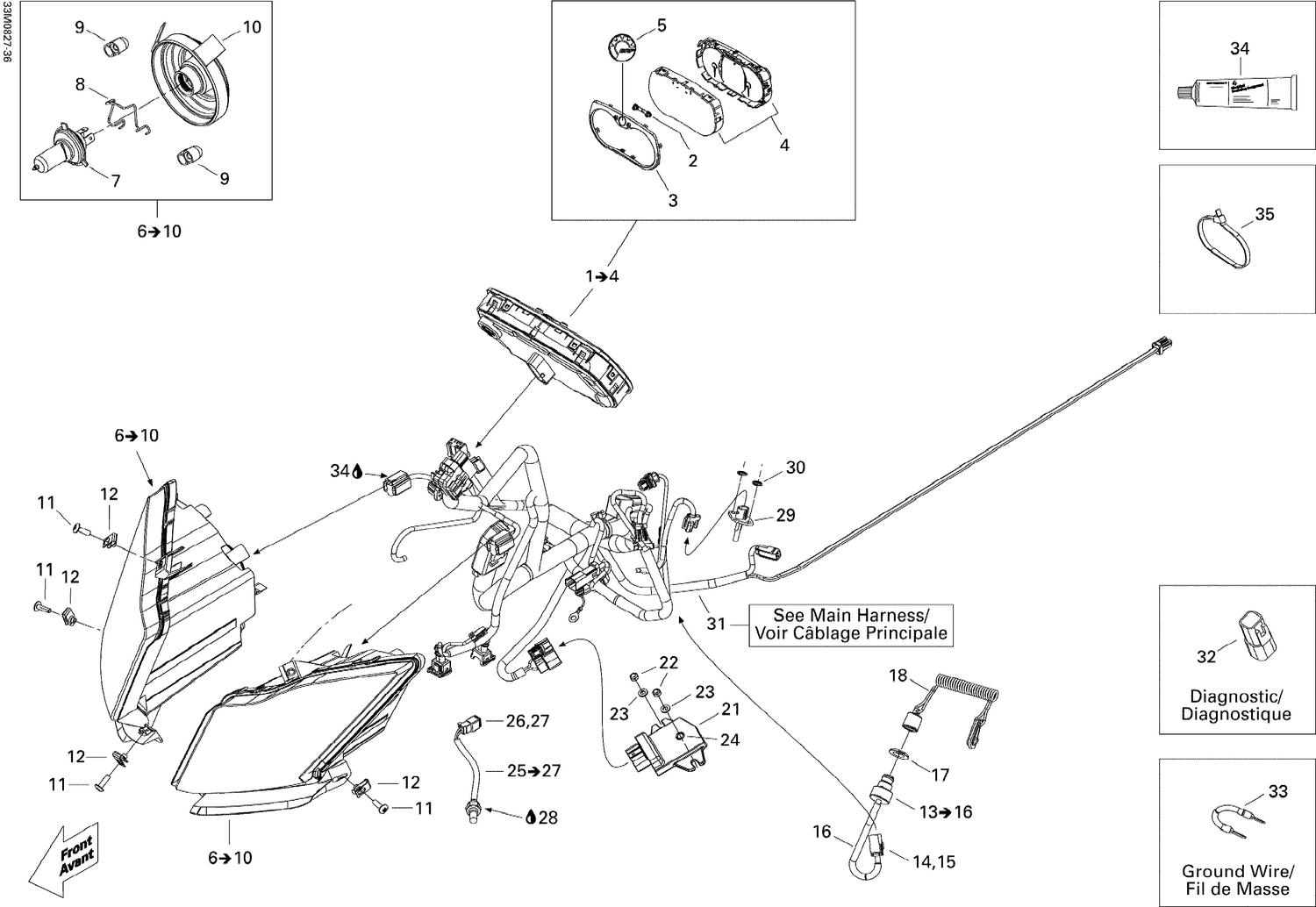

10- Electrical System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button This part replaces 415129347. |
| 3 | 415129370 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 6 | 517304194 | RH Headlamp Ass'y This part replaces 515176362. |
| 6 | 517304195 | LH Headlamp Ass'y This part replaces 515176363. |
| 7 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 8 | Not | Available As Spare Part - Bulb Holder |
| 9 | 515176498 | Cap |
| 10 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 11 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 12 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 14 | 515175232 | Male Terminal |
| 15 | 515175494 | Male Housing, 3 Circuits |
| 16 | 409902000 | Tubing 12 mm |
| 17 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 18 | 515178284 | DESS This part replaces 515176461. |
| 21 | 515176364 | Voltage Regulator |
| 22 | 232561414 | Elastic Stop Nut M6 |
| 23 | 234061410 | Flat Washer 6 mm |
| 24 | 234461608 | External Serrated Lock Washer 6 mm |
| 26 | 515175670 | Female Terminal Housing, 2 Circuits |
| 27 | 278000632 | Female Terminal |
| 28 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 29 | 515176366 | Air Temperature Sensor |
| 30 | 389804300 | Push Nut |
| 31 | 515176598 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 32 | 278002704 | Diagnostic Connector This part replaces 278002148. |
| 33 | 515176358 | Ground Wire |
| 34 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 35 | 293750008 | Tie Wrap 368 mm |
| 35 | 414115200 | Tie-Rap 180 mm |
