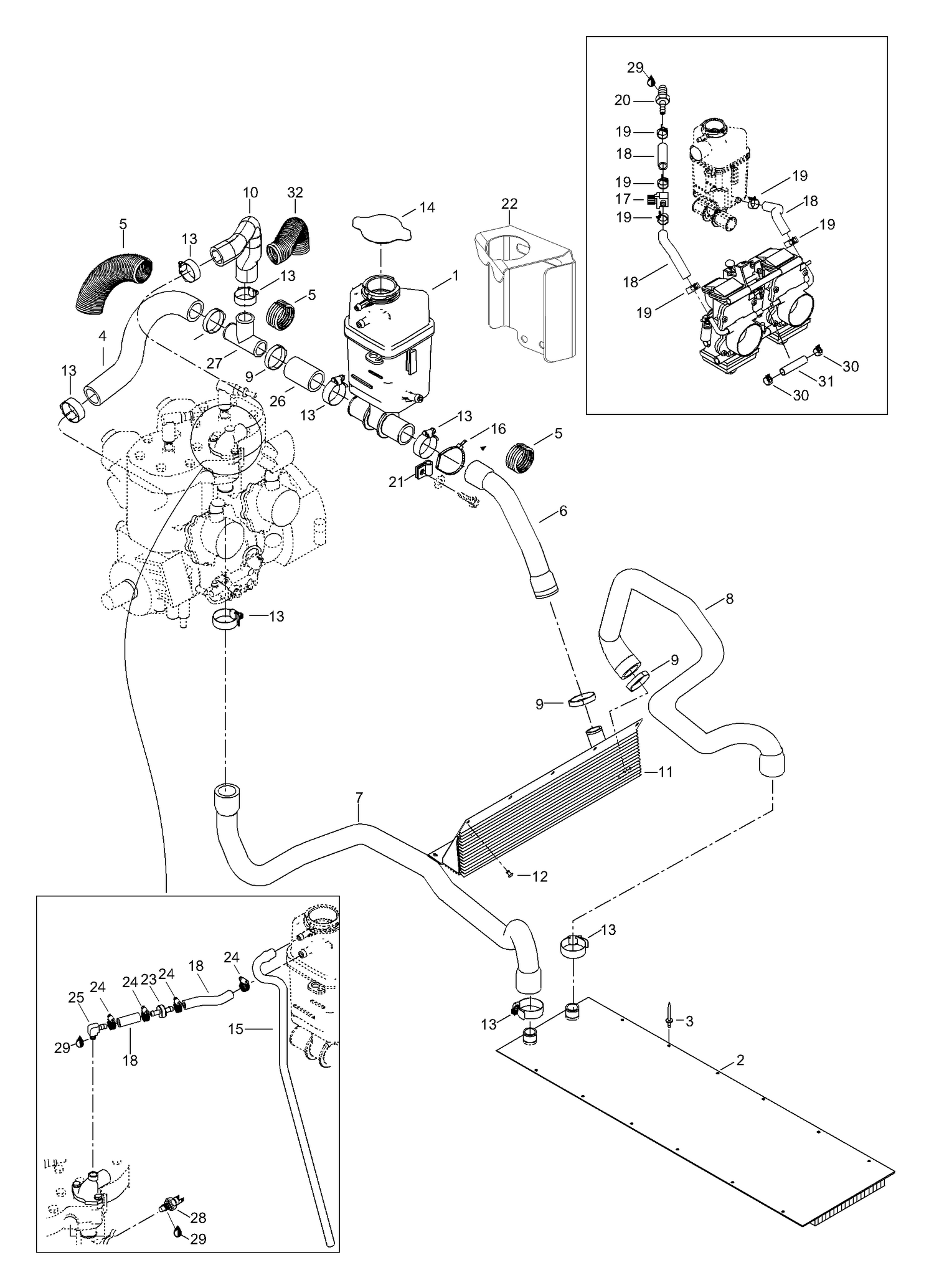

01- Radiator, Hoses
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000167 | Tank Coolant This part replaces 509000140. |
| 2 | 5246130 | Radiator |
| 3 | 36083 | Rivet |
| 4 | 509000141 | ENGINE INLET HOSE - Call your local BRP dealership |
| 5 | 390003 | Protective shield |
| 6 | 509000144 | RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 7 | 5347901 | Hose, engine->rear rad. |
| 8 | 5347902 | Hose, front rad.->rear ra |
| 9 | 509000045 | Hose clamp |
| 10 | 509000142 | Hose, sender->T-piece |
| 11 | 509000146 | Front radiator |
| 12 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 13 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 14 | 509000187 | Pressure Cap |
| 15 | 39038 | Overflow hose 9.5/6.5 |
| 16 | 293750008 | Tie-Rap 368 mm This part replaces 27100. |
| 17 | 512059324 | Valve |
| 18 | 509000093 | Hose |
| 19 | 414655700 | Hose clamp |
| 20 | 293710082 | Connector |
| 21 | 27025 | Clamp |
| 22 | 605348409 | Heat protection plate |
| 23 | 509000153 | Valve.check |
| 24 | 293650170 | Tridon Gear Clamp This part replaces 293650128. |
| 25 | 293700020 | Fitting elbow |
| 26 | 509000143 | Hose |
| 27 | 509000219 | T-Fitting This part replaces 414619900. |
| 28 | 515175930 | Sender temperature |
| 29 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
| 31 | 404161956 | Hose |
