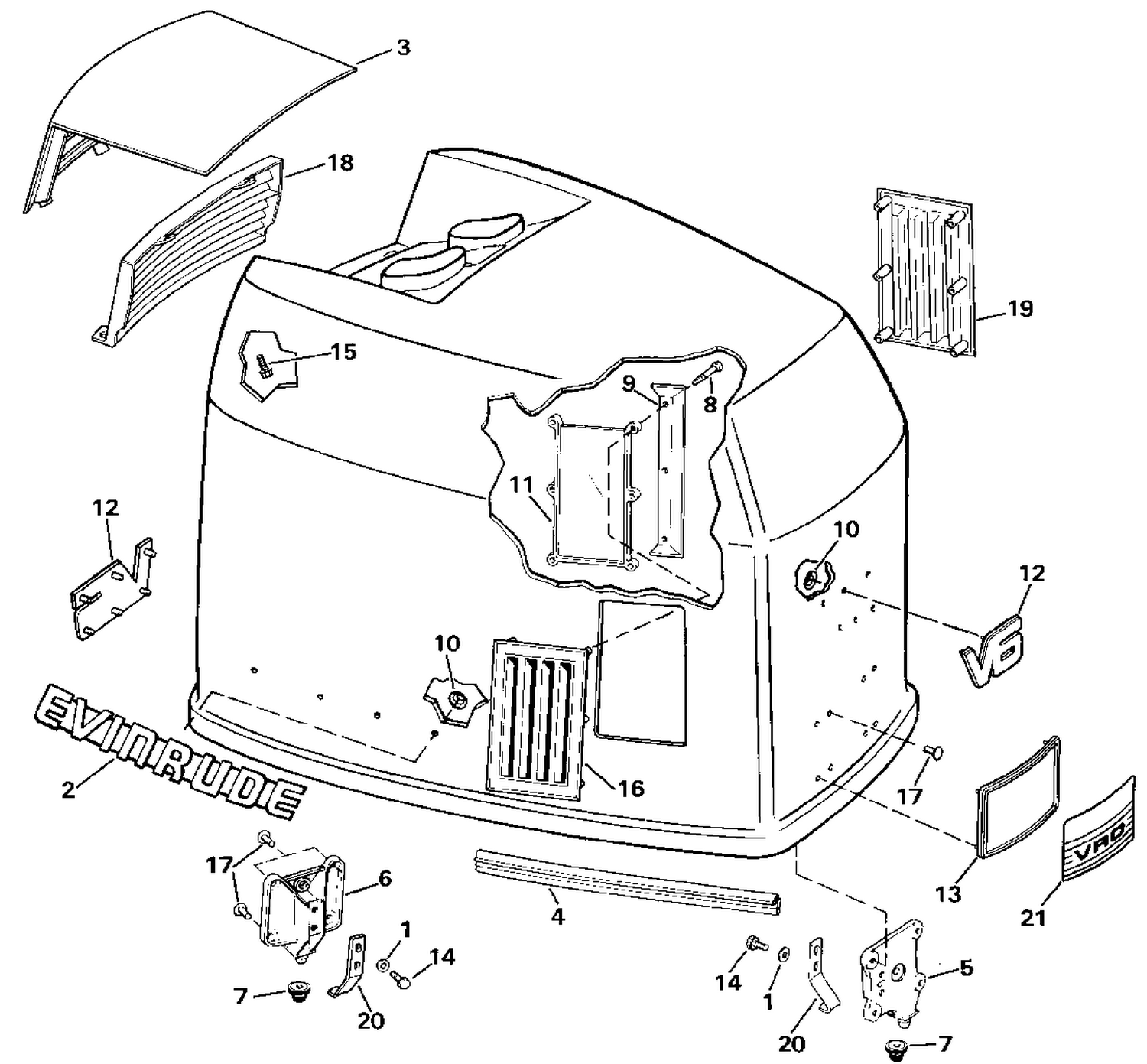

ENGINE COVER - EVINRUDE - 200STL
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0210305 | APPLIQUE |
| 3 | 0331944 | TILT HANDLE |
| 5 | 0329762 | LOCATING BRACKET, Front |
| 6 | 0394976 | LOCATING BRACKET, Rear |
| 9 | 0329866 | BRACKET, Louver mtg |
| 11 | 0329737 | BAFFLE, 175STL |
| 12 | 0210499 | APPLIQUE, Front |
| 13 | 0210312 | APPLIQUE, Engine cover, front |
| 16 | 0210175 | LOUVER, Starboard |
| 18 | 0331945 | BAFFLE |
| 19 | 0210174 | LOUVER, Port |
| 21 | 0210725 | PLANE, Applique, front |
| 0283136 | 0283305 | ENGINE COVER ASSY., 200 This part replaces 0283136. |
| 0283354 | 0283354 | DECAL SET |
