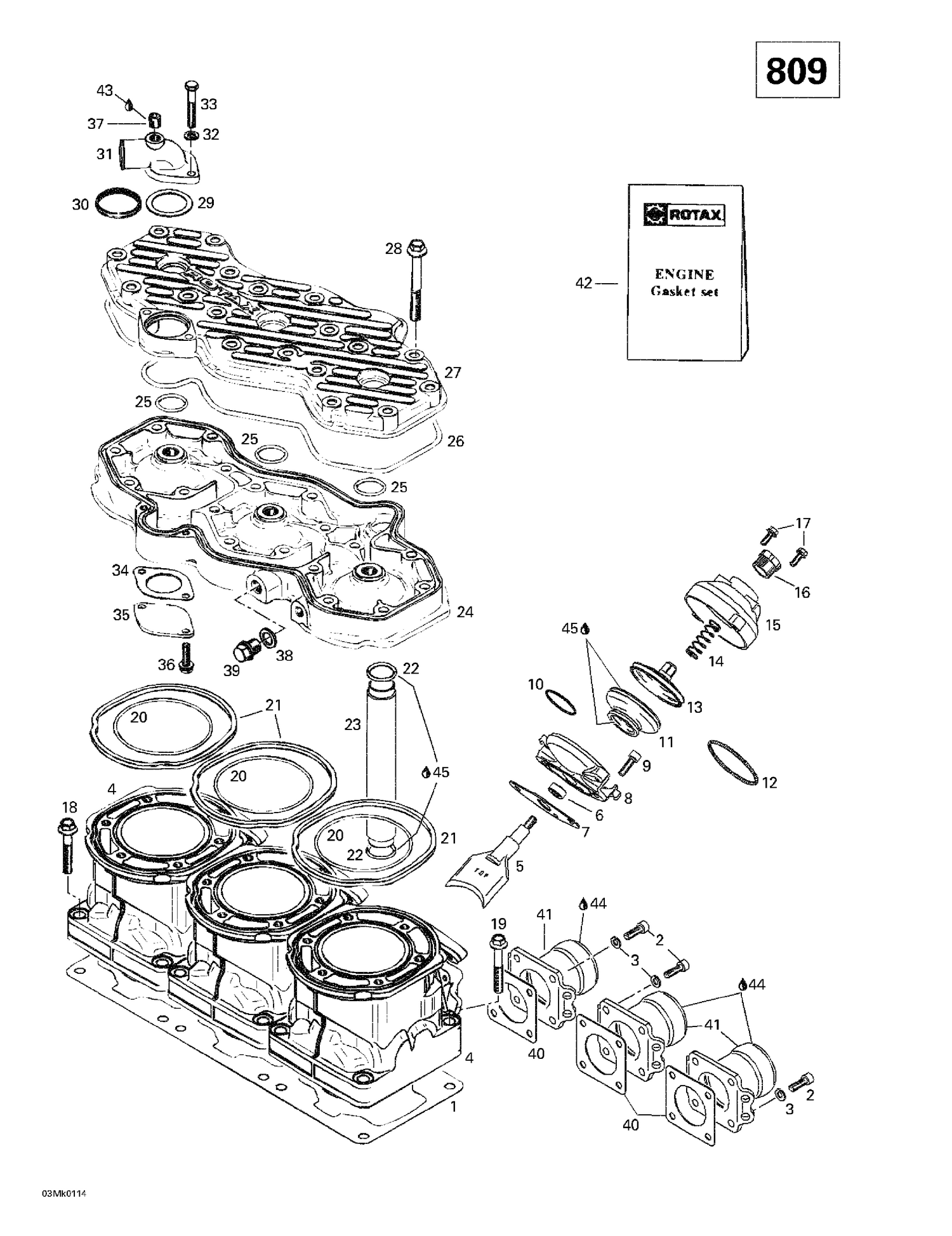

| Ref | Part Number | Description |
|---|
| 1 |
420931622 |
GASKET 0.6 MM - Call your local BRP dealership |
| 2 |
205062544 |
Socket Head Screw M6 X 25 |
| 3 |
234161471 |
Lock Washer M6, Black |
| 4 |
420923480 |
Cylinder (Nicasil Coated) |
| 5 |
420854303 |
Exhaust Valve |
| 6 |
420950732 |
Oil Seal This part replaces 420950730. |
| 7 |
420250239 |
Gasket |
| 8 |
420854266 |
Valve Housing |
| 9 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 10 |
420838255 |
Hose Spring This part replaces 420838253. |
| 11 |
420260723 |
Exhaust Bellows This part replaces 290260723. |
| 12 |
420939281 |
Hose Spring This part replaces 290239048. |
| 13 |
420854449 |
Exhaust Valve This part replaces 420854448. |
| 14 |
420239941 |
SPRING - Call your local BRP dealership |
| 15 |
420911552 |
Valve Cover |
| 16 |
420241221 |
Adjuster Screw |
| 17 |
420841555 |
Hex. Tapping Screw M5 X 20 |
| 18 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 19 |
420640441 |
Collar Hex. Screw M8 x 53.5 |
| 20 |
420831792 |
O-Ring |
| 21 |
420931320 |
SEAL RING - Call your local BRP dealership |
| 22 |
420430373 |
O-Ring This part replaces 420430370. |
| 23 |
420922450 |
Water Tube |
| 24 |
420913638 |
Cylinder Head |
| 25 |
420430782 |
O-Ring |
| 26 |
420950310 |
O-RING - Call your local BRP dealership |
| 27 |
420923493 |
Cylinder Head Cover |
| 28 |
420640959 |
Collar Hex Screw M8 X 68.5 This part replaces 420841996. |
| 29 |
420927745 |
RETAINING DISK - Call your local BRP dealership |
| 30 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 31 |
420922485 |
Exhaust Socket |
| 32 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 33 |
207064044 |
Hex. Screw M6 X 40 |
| 34 |
420850339 |
Gasket This part replaces 420850338. |
| 35 |
420926260 |
COVER - Call your local BRP dealership |
| 36 |
420240580 |
TAPTITE SCREW M6 X 16 - Call your local BRP dealership |
| 37 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 38 |
420250016 |
Aluminum Sealing Ring This part replaces 420250015. |
| 39 |
420841924 |
Plug screw This part replaces 420841921. |
| 40 |
420850552 |
Gasket |
| 41 |
420978818 |
Exhaust Socket |
| 42 |
420888790 |
GASKET SET - Call your local BRP dealership |
| 43 |
293800060 |
Loctite 243, 10 ml |
| 44 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
