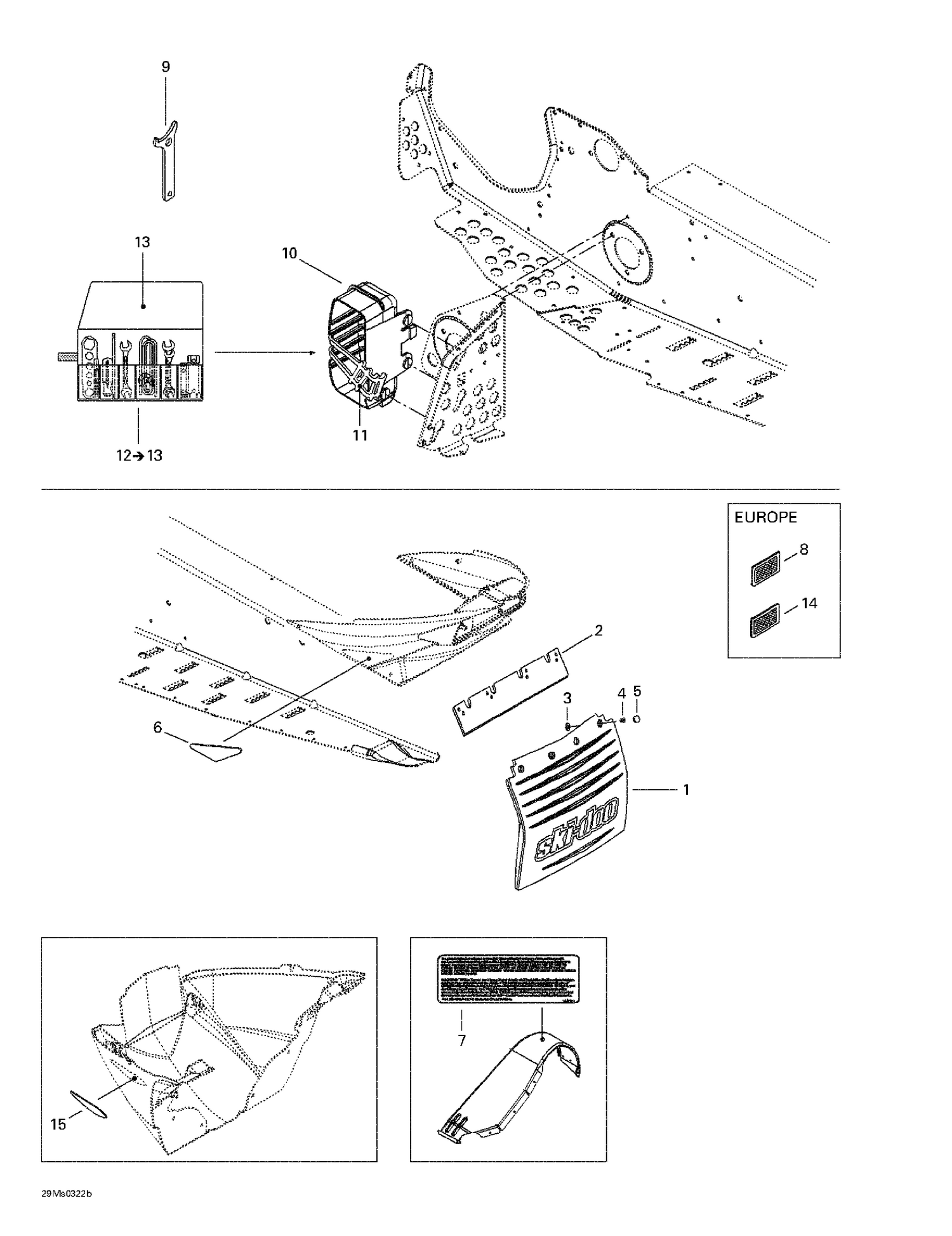

09- Utilities
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572103803 | Snow Guard |
| 2 | 572108200 | REINFORCEMENT - Call your local BRP dealership |
| 3 | 517225900 | Flat Washer |
| 4 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 5 | 415073300 | Cap |
| 6 | 520000237 | REAR REFLECTOR, RED - Call your local BRP dealership |
| 7 | 516001681 | Pending Label |
| 8 | 520000271 | Amber, Reflector |
| 9 | 529000035 | Adjustment Wrench This part replaces 529032900. |
| 10 | 520000322 | TRUNK - Call your local BRP dealership |
| 11 | 570069700 | LATCH - Call your local BRP dealership |
| 13 | 520000047 | Tool Bag |
| 14 | 415037900 | White, Reflector |
| 520000311 | Réflecteur | Arrière, Ambre 520000311 |
| 520000311 | Rear | Reflector, Amber 520000311 |
