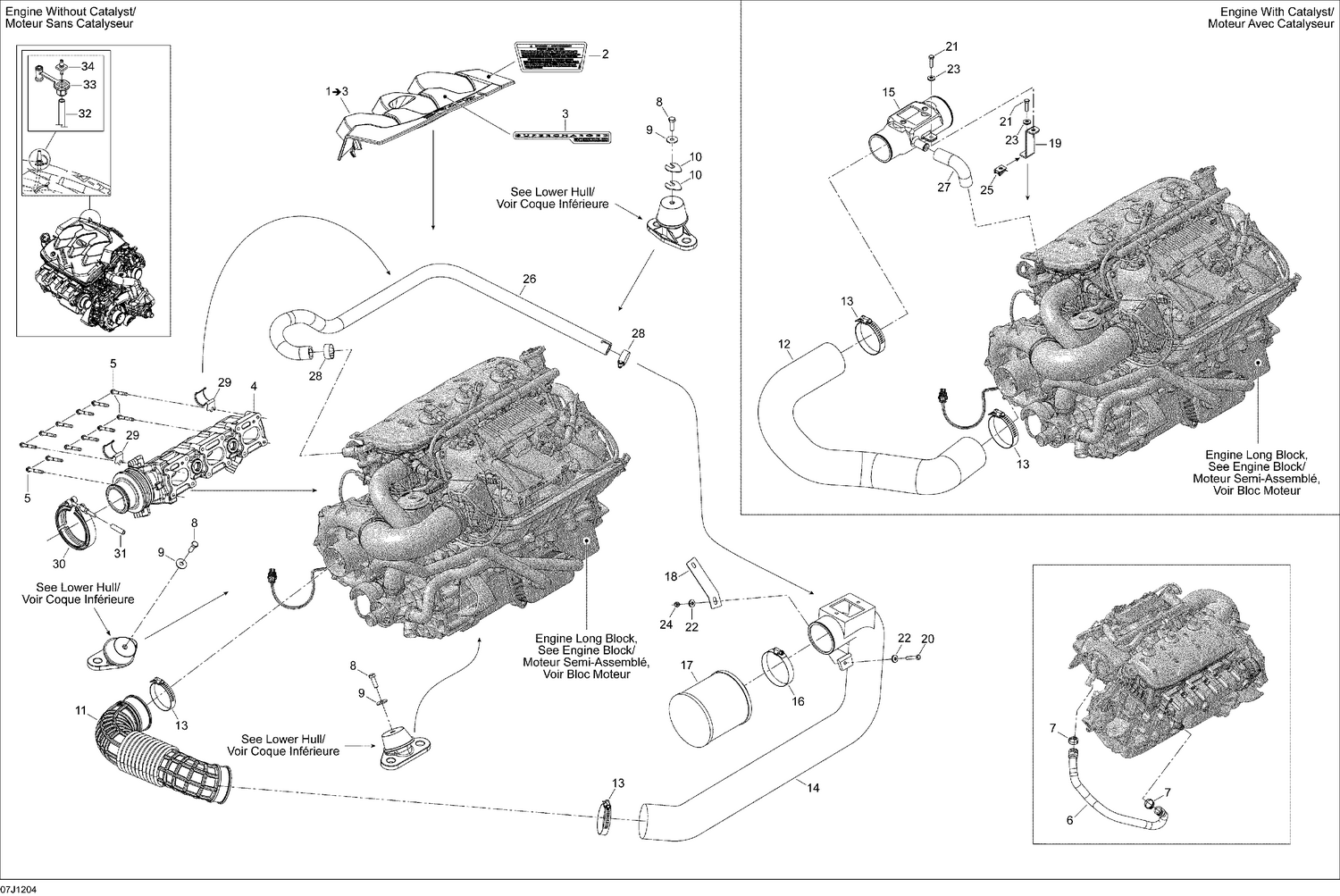

| Ref | Part Number | Description |
|---|
| 2 |
219902674 |
WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership |
| 3 |
219902676 |
IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership |
| 4 |
296000422 |
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001434. |
| 5 |
420641198 |
Torx Flange Screw M6 X 45 |
| 6 |
420822173 |
FORMED HOSE - Call your local BRP dealership |
| 7 |
293650217 |
Crimp Clamp |
| 8 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 9 |
234082600 |
Flat Washer 8 mm, Stainless |
| 10 |
270000025 |
SHIM 1.3 MM - Call your local BRP dealership |
| 13 |
293650179 |
Tridon Clamp |
| 16 |
293650179 |
Tridon Clamp |
| 17 |
204250466 |
Air Filter This part replaces 204250436. |
| 26 |
270000808 |
FORMED HOSE - Call your local BRP dealership |
| 28 |
293650051 |
Tridon Gear Clamp |
| 29 |
275500664 |
Retainer |
| 30 |
274001417 |
Exhaust Clamp |
| 31 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 32 |
270000469 |
HOSE 3 MM - Call your local BRP dealership |
| 33 |
293830120 |
GROMMET CAP - Call your local BRP dealership |
