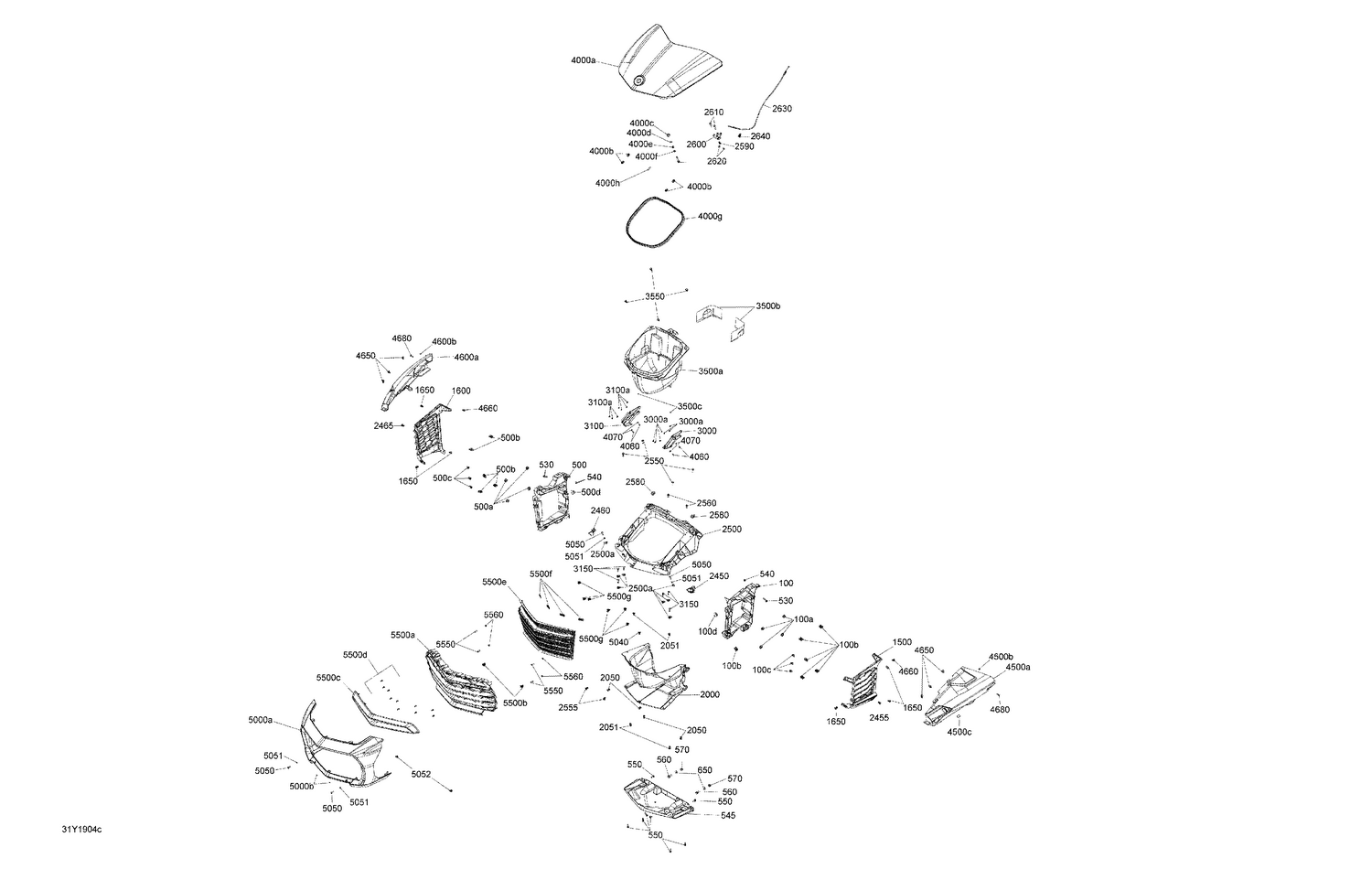

| Ref | Part Number | Description |
|---|
| 100a |
709000582 |
Grommet This part replaces 293720053. |
| 100b |
250100208 |
Panel Nut M6 X 1.0 |
| 100c |
250000958 |
Panel Nut M5 X 0.8 |
| 100d |
414916600 |
Black, Nylon Cap |
| 500a |
709000582 |
Grommet This part replaces 293720053. |
| 500b |
250100208 |
Panel Nut M6 X 1.0 |
| 500c |
250000958 |
Panel Nut M5 X 0.8 |
| 500d |
414916600 |
Black, Nylon Cap |
| 530 |
207663054 |
Hex. Flange Screw M6 X 30 |
| 540 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 545 |
708200405 |
Front Skid Plate |
| 550 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 560 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 565 |
234082430 |
Flat Washer M8 |
| 570 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 1500 |
708200860 |
LH Side Vent |
| 1600 |
708200859 |
RH Side Vent |
| 1650 |
293150230 |
Tuflok Plastic Rivet |
| 2000 |
708200362 |
Front Air Duct Module |
| 2050 |
293150230 |
Tuflok Plastic Rivet |
| 2051 |
293150230 |
Tuflok Plastic Rivet |
| 2450 |
708200493 |
LH Front Union Link |
| 2455 |
293150230 |
Tuflok Plastic Rivet |
| 2460 |
708200494 |
RH Front Union Link |
| 2465 |
293150230 |
Tuflok Plastic Rivet |
| 2500a |
250000958 |
Panel Nut M5 X 0.8 |
| 2550 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 2555 |
293150230 |
Tuflok Plastic Rivet |
| 2560 |
210262050 |
Hexagonal Head Screw |
| 2580 |
705000321 |
Oval Washer |
| 2590 |
705003911 |
Spring |
| 2600 |
705007379 |
Latch |
| 2610 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 2620 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 2630 |
517305742 |
Hood Cable |
| 2640 |
710002896 |
Tie-Rap Clip |
| 3000a |
234051670 |
Flat Washer M5 |
| 3100a |
234051670 |
Flat Washer M5 |
| 3150 |
250000715 |
Torx Truss Screw M5 X 20 |
| 3500a |
708200403 |
Front Storage Bin |
| 3500b |
708200490 |
Heat Shield Sheet |
| 3500c |
705006633 |
Stopper |
| 3550 |
293150230 |
Tuflok Plastic Rivet |
| 4000b |
250000958 |
Panel Nut M5 X 0.8 |
| 4000c |
269501943 |
Elastic Nut Housing M8 |
| 4000d |
234082410 |
Flat Washer 8 mm |
| 4000e |
232180600 |
Hex. Jam Nut M8 |
| 4000f |
705002223 |
Lug |
| 4000g |
219704371 |
Neoprene Seal 3000 mm Long |
| 4000h |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 4060 |
250000578 |
Torx Truss Screw M5 X 16, T25 |
| 4070 |
234051670 |
Flat Washer M5 |
| 4500b |
705006634 |
Polyurethane Stopper |
| 4500c |
293830143 |
Rubber Pad |
| 4600a |
708200402 |
Bare, RH Front Fairing This part replaces 708200842. |
| 4600a |
708200451 |
Steel Black, RH Vent Panel |
| 4600a |
708200559 |
Monolith Black, RH Vent Panel |
| 4600a |
708200671 |
Oxford Blue - RH Vent Panel |
| 4600a |
708200680 |
Vegas White Pearl, RH Vent Panel |
| 4600a |
708200843 |
Liquid Titan, RH Vent Panel |
| 4600b |
705006634 |
Polyurethane Stopper |
| 4650 |
293150230 |
Tuflok Plastic Rivet |
| 4660 |
293150230 |
Tuflok Plastic Rivet |
| 4680 |
250000715 |
Torx Truss Screw M5 X 20 |
| 5000b |
705006633 |
Stopper |
| 5040 |
293150230 |
Tuflok Plastic Rivet |
| 5050 |
250000715 |
Torx Truss Screw M5 X 20 |
| 5051 |
234051670 |
Flat Washer M5 |
| 5052 |
293150230 |
Tuflok Plastic Rivet |
| 5500a |
708200404 |
Front Grille |
| 5500b |
517302785 |
Edge Clip |
| 5500c |
708200534 |
Front Mouth |
| 5500d |
250000577 |
Torx Truss Screw K40 X 12 |
| 5500e |
708200393 |
Front Deflector Grille |
| 5500f |
705004838 |
Flat Clip |
| 5500g |
517302785 |
Edge Clip |
| 5550 |
250000578 |
Torx Truss Screw M5 X 16, T25 |
