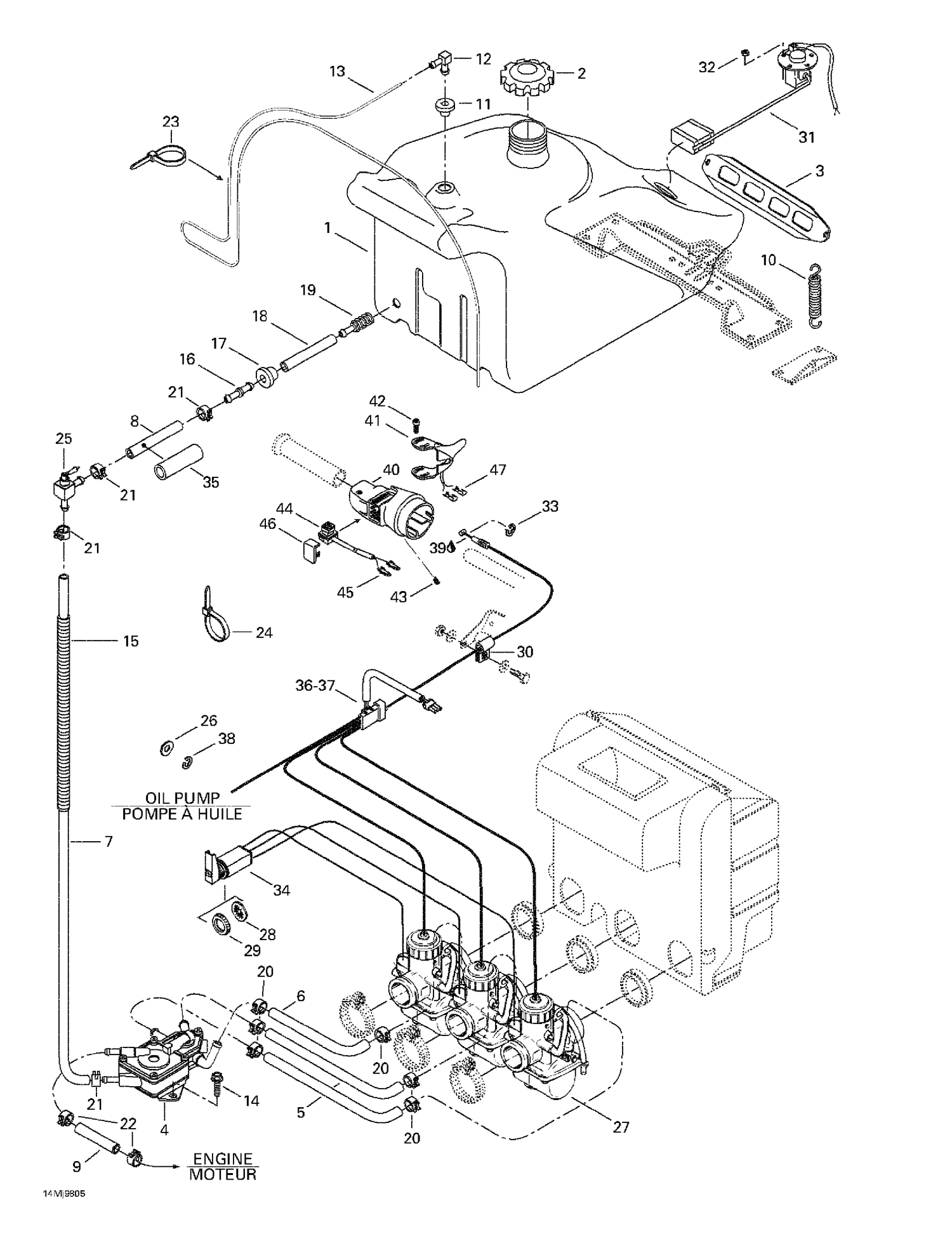

02- Fuel System
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572088000 | Fuel Tank |
| 2 | 513033722 | Fuel Tank Cap 91 Octane This part replaces 572073900. |
| 3 | 517249200 | Fuel Tank Bracket |
| 4 | 513032929 | FUEL PUMP - Call your local BRP dealership This part replaces 403901700. |
| 5 | 415117800 | Tube |
| 6 | 415117900 | Formed Tube |
| 7 | 415046200 | Formed Hose |
| 8 | 415112100 | Hose |
| 9 | 219704549 | Hose This part replaces 219704439. |
| 10 | 415107100 | Spring This part replaces 414893700. |
| 11 | 709200285 | Grommet This part replaces 570135100. |
| 12 | 414814100 | Male Connector |
| 13 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 14 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership This part replaces 732601067. |
| 15 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 16 | 414872700 | Male Connector |
| 17 | 707800347 | Grommet This part replaces 570273900. |
| 18 | 415097800 | POLYURETHANE HOSE 7.6MM - Call your local BRP dealership |
| 19 | 414872100 | Fuel Filter Strainer |
| 20 | 414420700 | Spring Clamp |
| 21 | 414655700 | Spring Clamp |
| 22 | 414415200 | Spring Clamp |
| 23 | 414115200 | Tie-Rap 180 mm |
| 24 | 293750008 | Tie Wrap 368 mm This part replaces 748001001. |
| 25 | 415112200 | Shut-Off Valve |
| 26 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 30 | 414176000 | Open Clamp |
| 31 | 415080800 | Fuel Sensor Ass'y |
| 32 | 232551414 | Elastic Stop Nut M5 This part replaces 228551045. |
| 33 | 414274500 | Circlip |
| 35 | 513032904 | Hose |
| 38 | 414753500 | Circlip |
| 39 | 293550004 | Dielectric Grease, 150 g This part replaces 413701700. |
| 41 | 572091000 | HEAT THROTTLE HANDLE (38 MM) - Call your local BRP dealership |
| 42 | 732601143 | Flange Screw |
| 43 | 414440800 | Socket Set Screw M8 X 10 |
| 44 | 515177362 | Emergency Stop Switch This part replaces 414612700. |
| 45 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 46 | 572100901 | Switch Cover |
