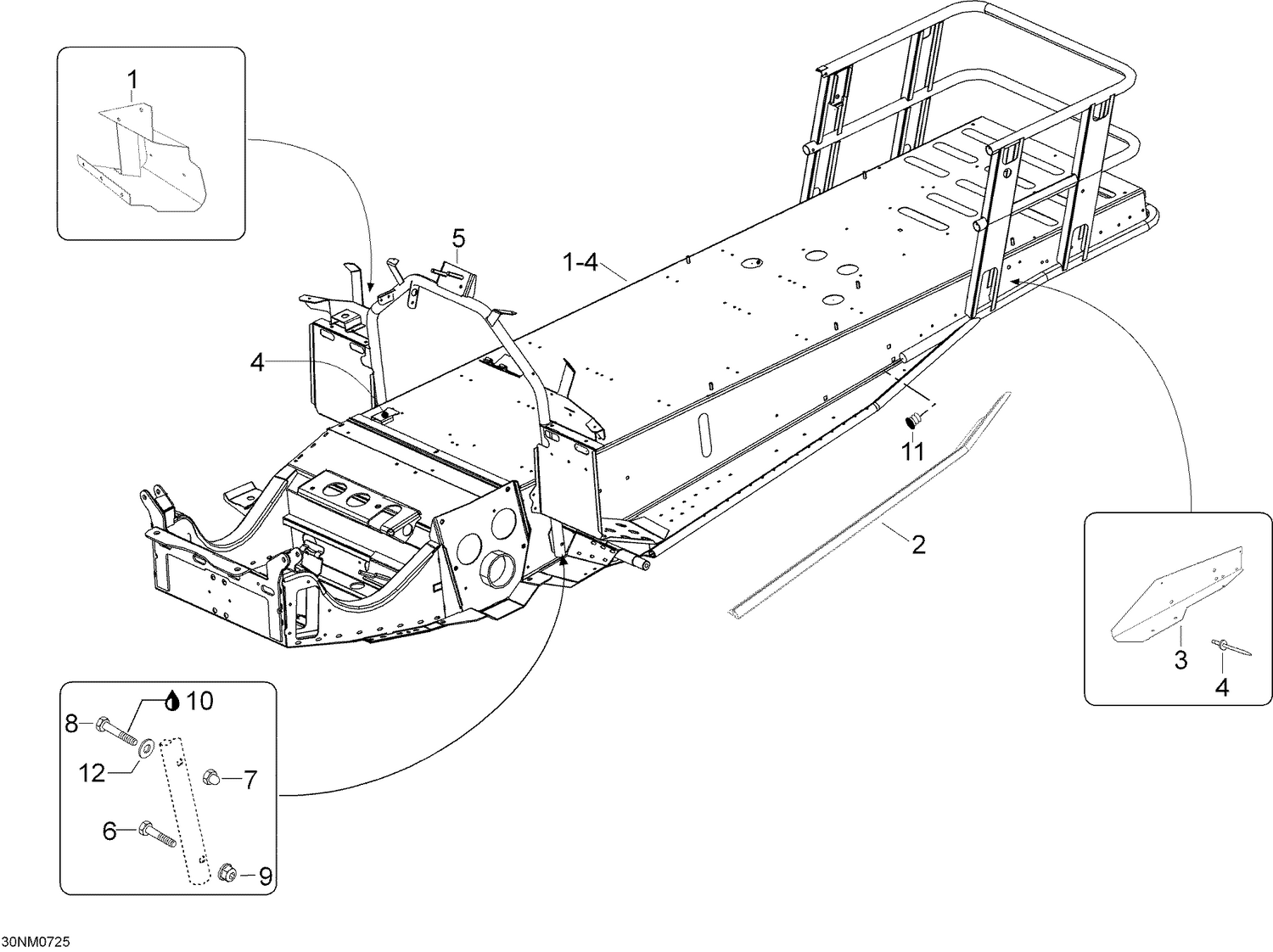

| Ref | Part Number | Description |
|---|
| 1 |
605350839 |
R.H. Footrest |
| 1 |
605350840 |
LH TOE REST - Call your local BRP dealership |
| 2 |
605250773 |
LH REINFORCEMENT - Call your local BRP dealership |
| 2 |
605250774 |
RH REINFORCEMENT - Call your local BRP dealership |
| 3 |
605350845 |
LH CONER SUPPORT - Call your local BRP dealership |
| 3 |
605350846 |
R.H. Reinforcement |
| 4 |
Not |
Available As Spare Part - Rivet |
| 5 |
605151693 |
Steering support |
| 6 |
40003 |
Hex. screw M6 x 35 |
| 7 |
33051 |
Nut M6 |
| 8 |
40002 |
Hex. screw M6 x 40 |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 10 |
293800060 |
Loctite 243, 10ml |
| 11 |
28210 |
Plug |
