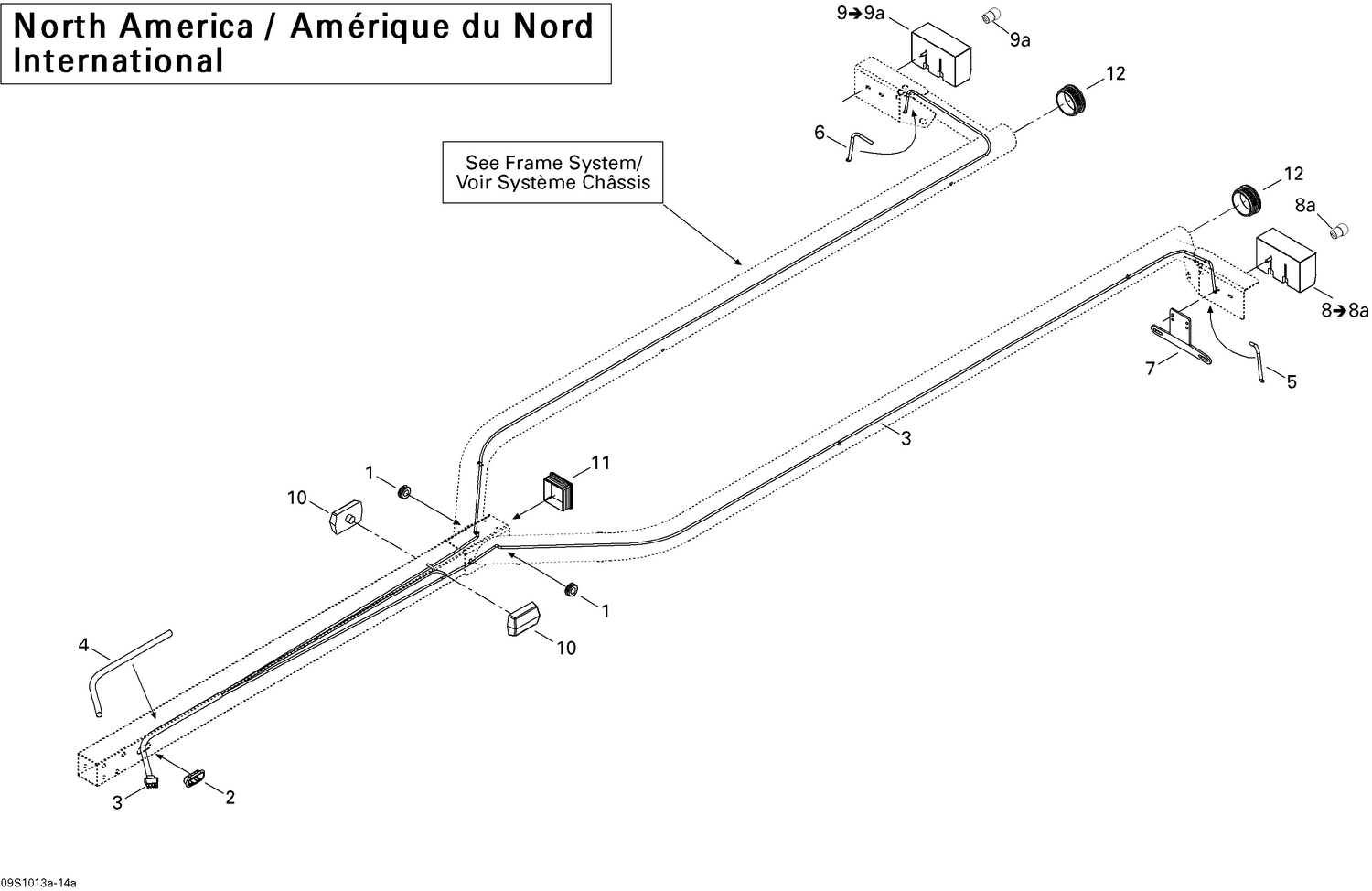

| Ref | Part Number | Description |
|---|
| 1 |
269800143 |
Protector |
| 2 |
262000050 |
PROTECTOR - Call your local BRP dealership |
| 3 |
278002554 |
Wiring Harness |
| 4 |
219704398 |
Was 409901600 Tubing 19mm |
| 5 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 6 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 7 |
269800142 |
SUPPORT - Call your local BRP dealership |
| 8a |
Not |
Available As Spare Part - Bulb 2057 12V32 |
| 9a |
Not |
Available As Spare Part - Bulb 2057 12V32 |
| 10 |
278002887 |
LATERAL LIGHT - Call your local BRP dealership This part replaces 278002481. |
| 11 |
262000053 |
CAP - Call your local BRP dealership |
