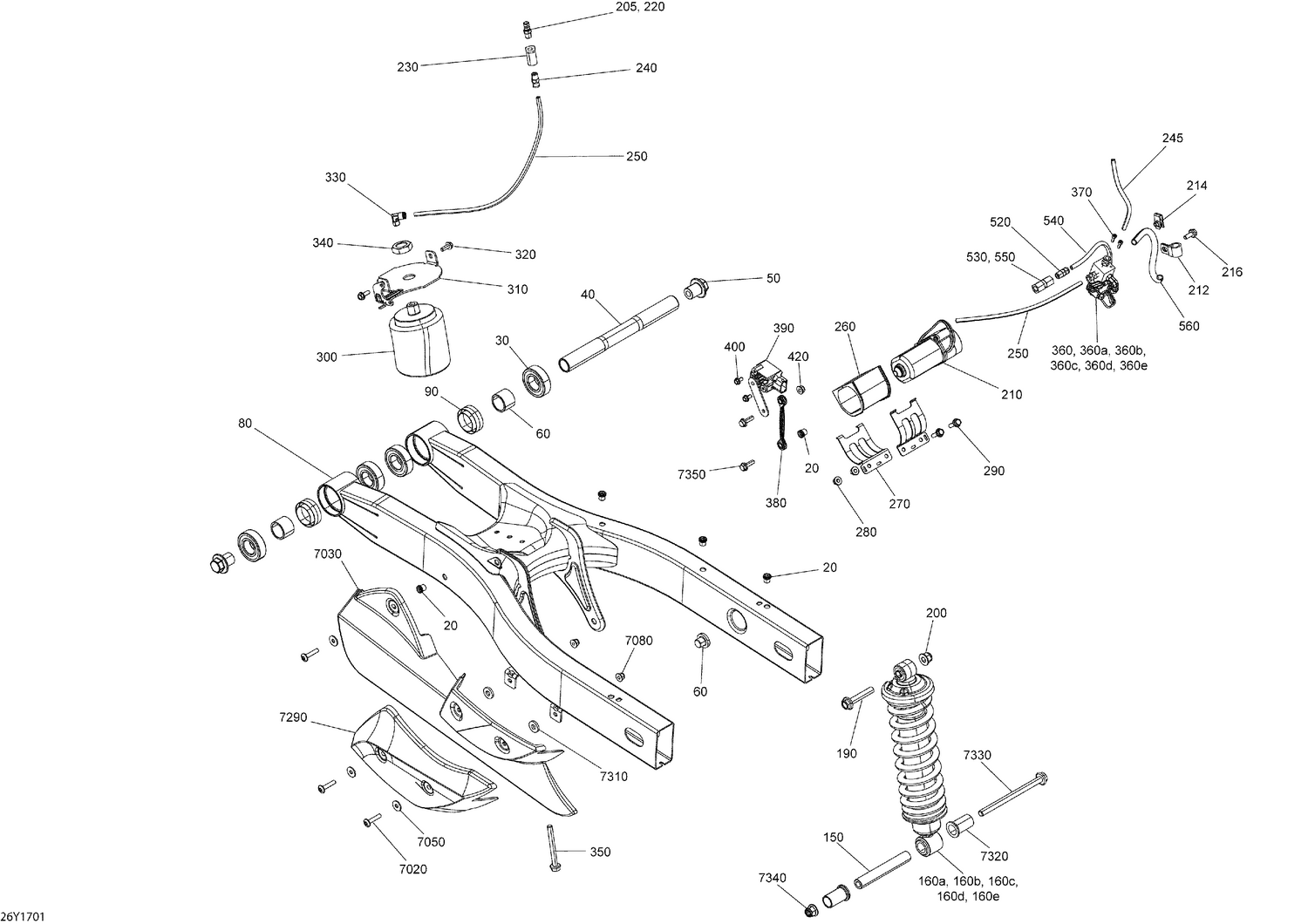

08- Suspension, Rear - All Models
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 293450275 | Insert |
| 30 | 293350115 | Ball Bearing This part replaces 293350055. |
| 40 | 706001182 | Swing Arm Axle |
| 50 | 706001579 | Bolt M20 |
| 60 | 706001152 | Spacer |
| 80 | 706001574 | Swing Arm |
| 90 | 706001366 | Sleeve |
| 150 | 706000409 | Shock Absorber Shaft |
| 160a | 706001552 | Shock Absorber |
| 160b | 706001542 | Shock Absorber Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160e | 503191609 | Urethane Cushion |
| 190 | 207605554 | Hex. Flange Screw M10 X 55 |
| 200 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 205 | 706002797 | Air Valve This part replaces 706000678. |
| 220 | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 230 | 706000735 | Pneumatic Connector |
| 240 | 706000869 | Connector |
| 300 | 219800175 | Air Damper Kit |
| 310 | 706001082 | Support Plate |
| 320 | 210261050 | Hex. Forming Screw M6 X 10 |
| 330 | 706001018 | Elbow 90° |
| 340 | 250100119 | Jam Nut M20 |
| 350 | 207687544 | Hex. Flange Screw M8 X 75 |
| 360a | 706000869 | Connector |
| 360b | 414115200 | Tie-Rap 180 mm |
| 360c | 219704455 | Was 293800018 Loctite 592, 50 ml |
| 360d | 219704425 | Tubing 6 Mm 3000Mm Long |
| 360e | 706000928 | Elbow 90° |
| 7020 | 250000350 | Torx Truss Screw M6 X 20 |
| 7020 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 7030 | 705002092 | Lower Belt Guard |
| 7050 | 234062670 | Stainless Steel Flat Washer |
| 7080 | 233261494 | Hex. Flange Elastic Nut M6 |
| 7290 | 705009446 | Belt Guard Moulding |
| 7310 | 705003696 | Adhesive Spacer |
| 7320 | 706000410 | Spacer |
| 7330 | 230604034 | Hex. Flange Screw M10 X 140 |
| 7340 | 233201434 | Hex. Flange Elastic Nut M10 |
