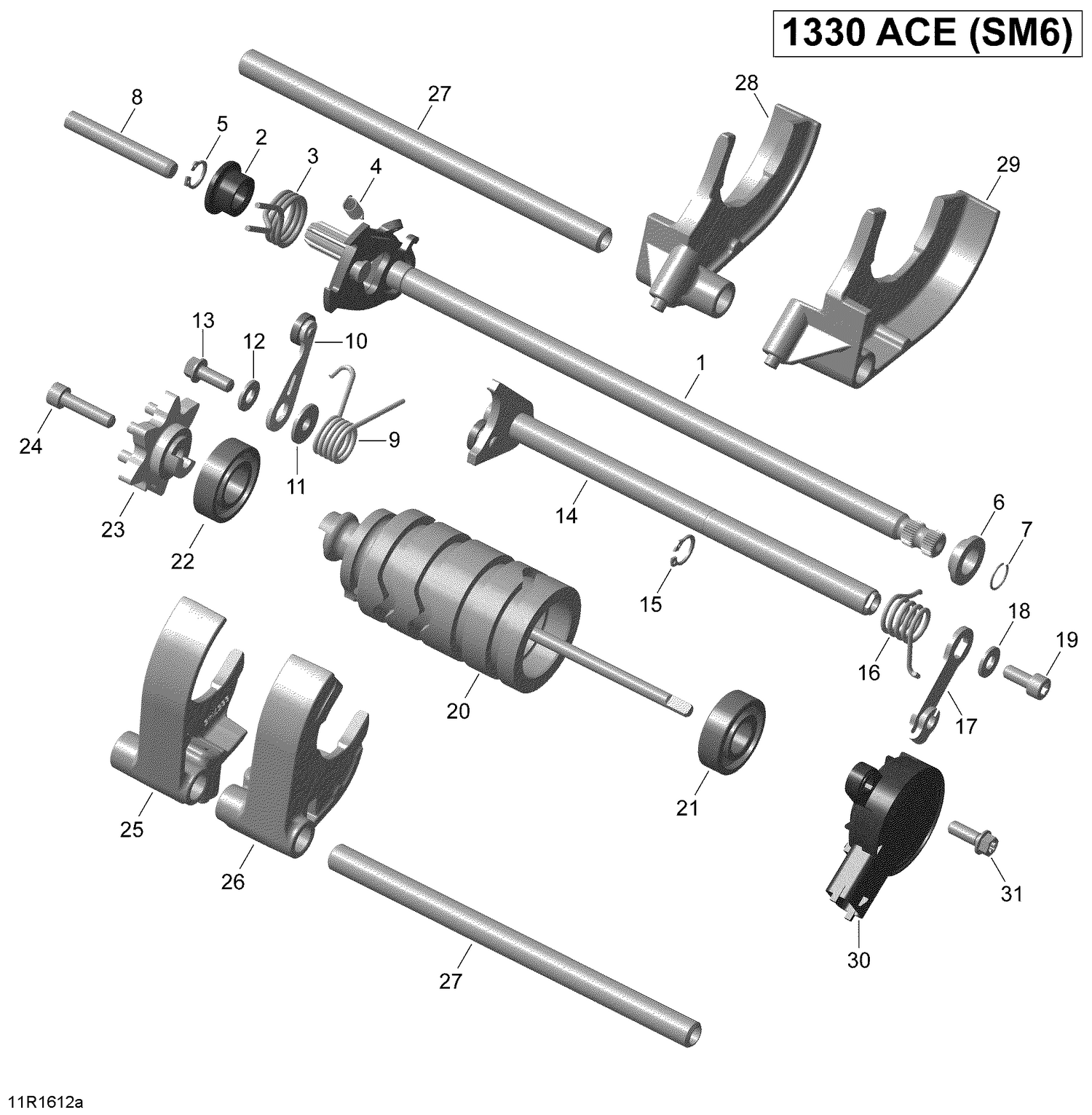

05- Shifting System - SM6
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420247948 | Sleeve |
| 3 | 420239422 | SPRING - Call your local BRP dealership |
| 4 | 420239431 | Spring This part replaces 420239430. |
| 5 | 420945060 | Retaining Ring 11 X 1 |
| 6 | 420247662 | Step Ring - Call your local BRP dealership |
| 7 | 420245440 | Snap Ring |
| 8 | 420229384 | Pin 8, M6 X 55 |
| 9 | 420239243 | Index Spring |
| 10 | 420248489 | Index Lever |
| 11 | 420227716 | Step Ring |
| 12 | 224061121 | Flat Washer |
| 13 | 420440164 | Torx Flange Screw M6 X 16 |
| 15 | 420945470 | Retaining Ring |
| 16 | 420838419 | Spring |
| 17 | 420248275 | Control Lever |
| 18 | 224061121 | Flat Washer |
| 19 | 420840391 | Allen Screw M6 X 14 |
| 20 | 420657166 | SHIFT DRUM - Call your local BRP dealership |
| 21 | 420932290 | Ball Bearing |
| 22 | 420232625 | Ball Bearing |
| 23 | 420657172 | Shim Index |
| 24 | 420840686 | Allen Screw M8 X 40 |
| 25 | 420657148 | Shift Fork This part replaces 420657147. |
| 26 | 420657572 | Shift Fork This part replaces 420657142. |
| 27 | 420657150 | Fork Spindle |
| 28 | 420657139 | Shift Fork This part replaces 420657137. |
| 29 | 420657570 | Shift Fork This part replaces 420657133. |
| 30 | 420265120 | Angle Rotation Sensor - Call your local BRP dealership |
