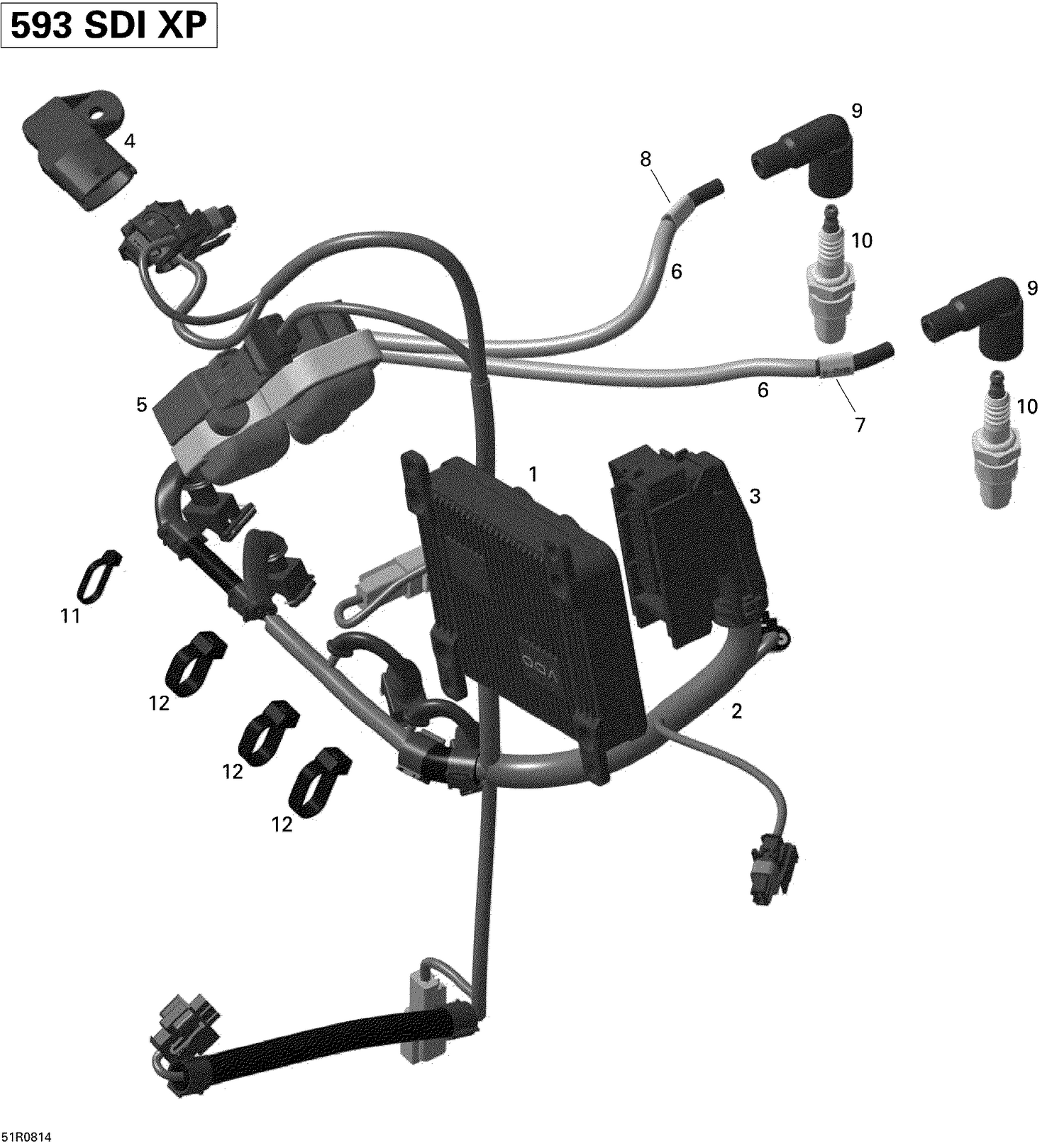

| Ref | Part Number | Description |
|---|
| 1 |
420665872 |
ELECTRONIC BOX - Call your local BRP dealership |
| 2 |
420665450 |
ENGINE WIRING HARNESS ASS'Y - Call your local BRP dealership |
| 3 |
420664450 |
ECM Connector |
| 4 |
707000995 |
Pressure And Temperature Sensor This part replaces 420874650. |
| 5 |
278001546 |
Ignition Coil |
| 6 |
420664302 |
SPARK PLUG CABLE, 190 MM - Call your local BRP dealership |
| 7 |
420660632 |
SLEEVE, MAG SIDE - Call your local BRP dealership |
| 8 |
420660630 |
SLEEVE, PTO SIDE - Call your local BRP dealership |
| 9 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 10 |
512060029 |
Spark Plug NGK BR8ECS |
| 11 |
420866714 |
Tie Rap |
