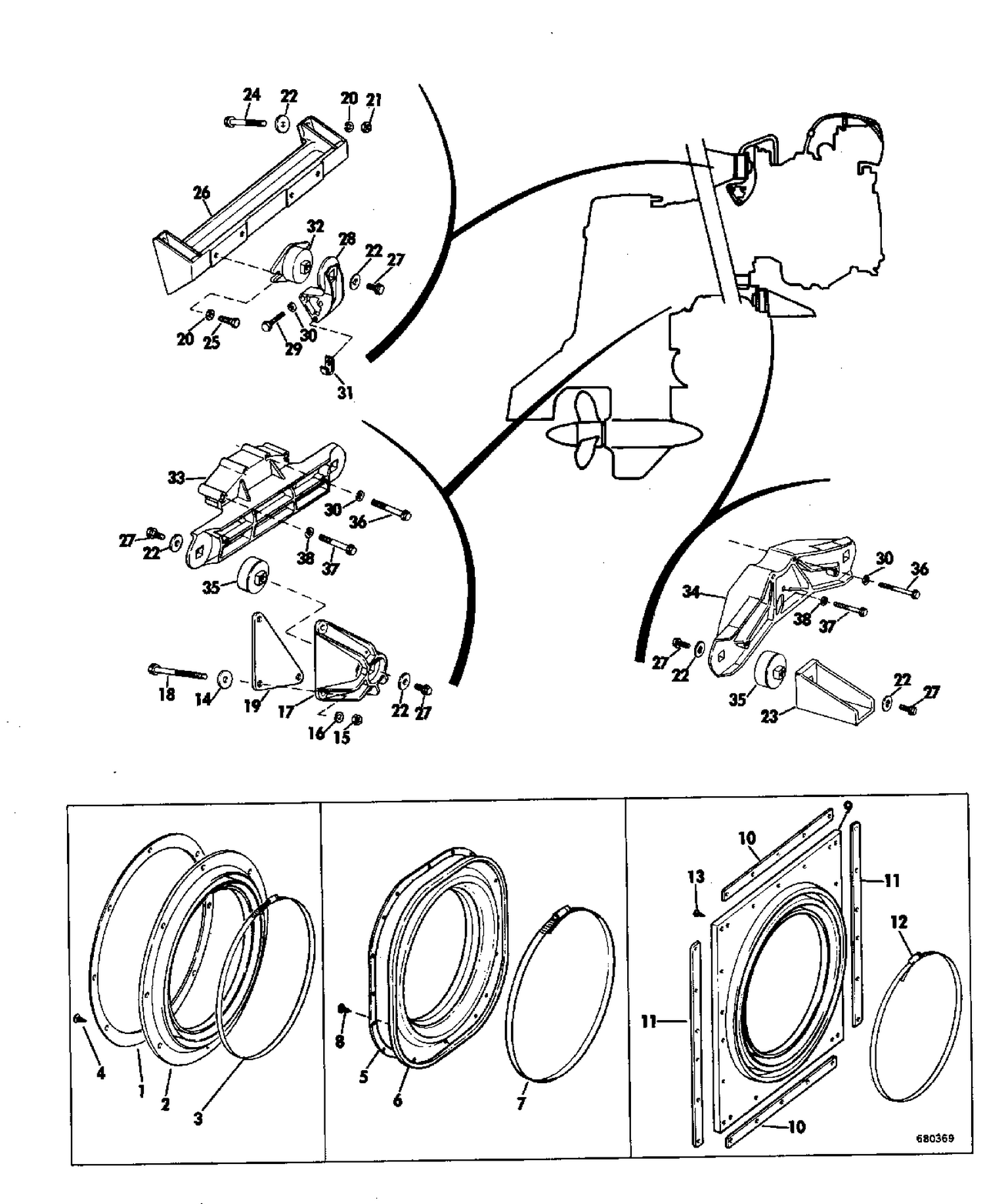

| Ref | Part Number | Description |
|---|
| 1 |
0308455 |
RING, Transom seal |
| 2 |
0308456 |
SEAL |
| 3 |
0308735 |
CLAMP, Seal |
| 5 |
0313081 |
PLATE, Transom seal |
| 6 |
0313080 |
SEAL |
| 7 |
0308735 |
CLAMP, Seal |
| 9 |
0310975 |
SEAL |
| 10 |
0310978 |
PLATE,Transom seal,short |
| 11 |
0310979 |
PLATE,Transom seal,long |
| 12 |
0308735 |
CLAMP, Seal |
| 14 |
0121025 |
CLIP,Contact retainer |
| 16 |
0343600 |
WASHER, Screw, pulley This part replaces 0305273. |
| 17 |
0310976 |
BRACKET, Port |
| 17 |
0310977 |
BRACKET, Starboard |
| 18 |
0310980 |
BOLT |
| 19 |
0311000 |
SHIM |
| 20 |
0121025 |
CLIP,Contact retainer |
| 22 |
0343600 |
WASHER, Screw, pulley This part replaces 0305273. |
| 23 |
0308478 |
BRACKET |
| 24 |
0308683 |
SCREW |
| 25 |
0309484 |
SCREW |
| 26 |
0310974 |
BRACKET |
| 28 |
0308477 |
BRACKET, Upper |
| 30 |
0306353 |
LKWASH,Brace to pump |
| 31 |
0310947 |
CLAMP |
| 32 |
0378688 |
RUBBER MOUNT ASSY.,Upper |
| 33 |
0310965 |
BRACKET, Lower |
| 34 |
0308476 |
BRACKET,Lower |
| 35 |
0378764 |
RUBBER MOUNT ASSY.,Lower |
| 36 |
0308689 |
SCREW |
| 37 |
0308748 |
SCREW |
| 0379814 |
0379814 |
TRANSOM MOUNTING ADAPTER KIT |
| 0381104 |
0381104 |
TRANSOM SEAL ASSEMBLY, Round opening |
| 0381105 |
0381105 |
TRANSOM SEAL ASSEMBLY,Square opening |
| 0382068 |
0382068 |
TRANSOM SEAL ASSEMBLY, Oval opening |
