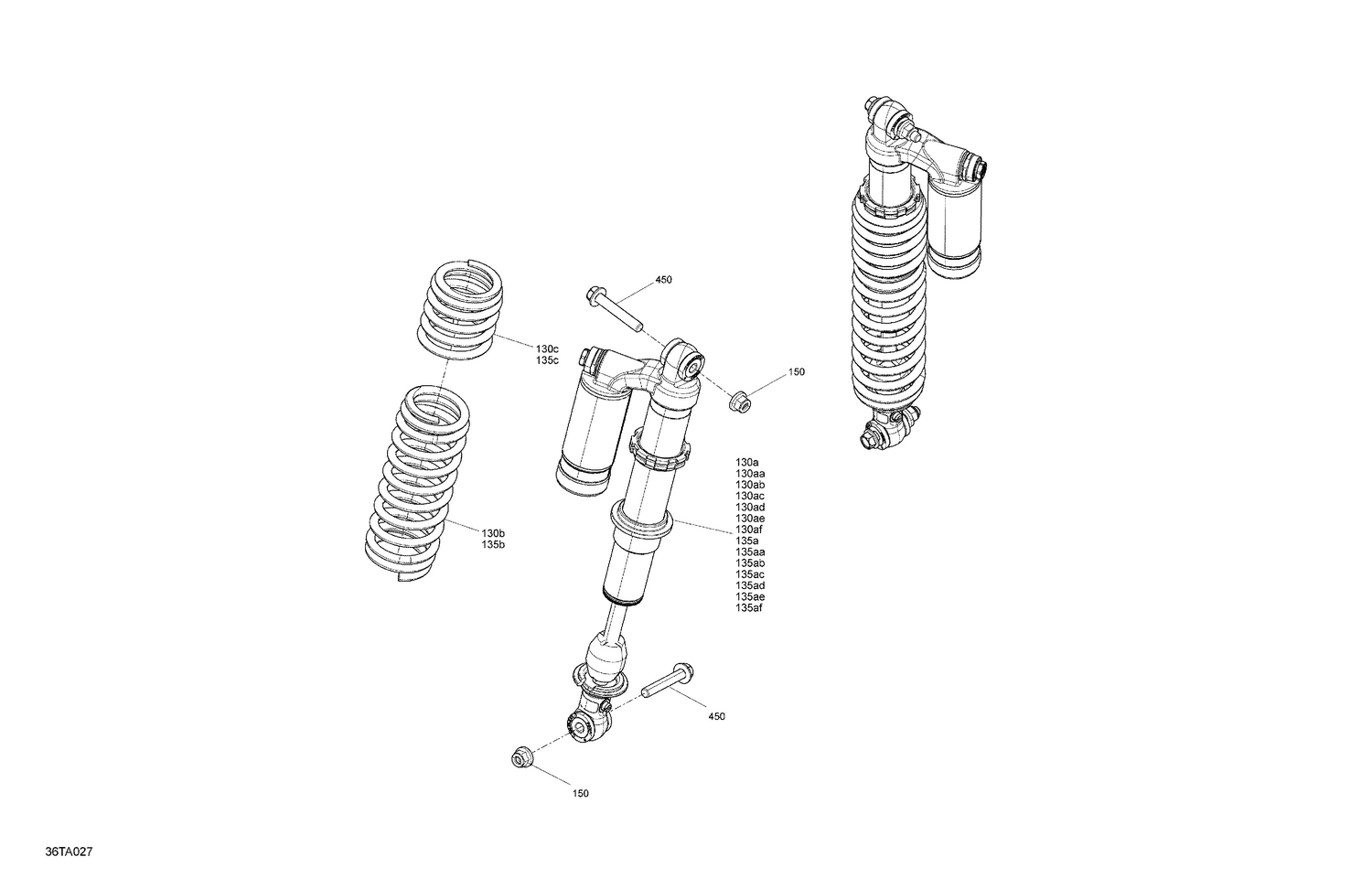

05- Suspension - Rear Shocks - XXC
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 706004492 | Rear Shock Absorber This part replaces 706003827. |
| 130aa | 715900649 | Bushing |
| 130ab | 715900472 | Seal |
| 130ac | 715900473 | Sleeve |
| 130ad | 715900650 | Spacer |
| 130ae | 715900651 | Spacer |
| 130af | 715900652 | Coupling Sleeve |
| 130b | 706004093 | Carbon Black, Compression Spring |
| 130c | 706004094 | Carbon Black, Compression Spring |
| 135a | 706004492 | Rear Shock Absorber This part replaces 706003827. |
| 135aa | 715900649 | Bushing |
| 135ab | 715900472 | Seal |
| 135ac | 715900473 | Sleeve |
| 135ad | 715900650 | Spacer |
| 135ae | 715900651 | Spacer |
| 135af | 715900652 | Coupling Sleeve |
| 135b | 706004093 | Carbon Black, Compression Spring |
| 135c | 706004094 | Carbon Black, Compression Spring |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 |
