Parts Catalog

⚓ Флот 📚 Manuals Replacements 38,231,304 parts
Home / BRP / Can-Am 3-Wheel Vehicles / 2018 / F3 Series / F3 S SM6 & SE6, 2018 000D8JA00 000D8JF00 000D8JG00 000D8JH00 000E6JA00 000E6JB00 000E6JC00 000E6JD00 000E6JF00 000E6JG00 000E6JH00 000E6JJ00 000E6JK00 000E6JL00 000E6JM00 000E6JN00 000E6JP00 / 10- Rear Harness S & STD

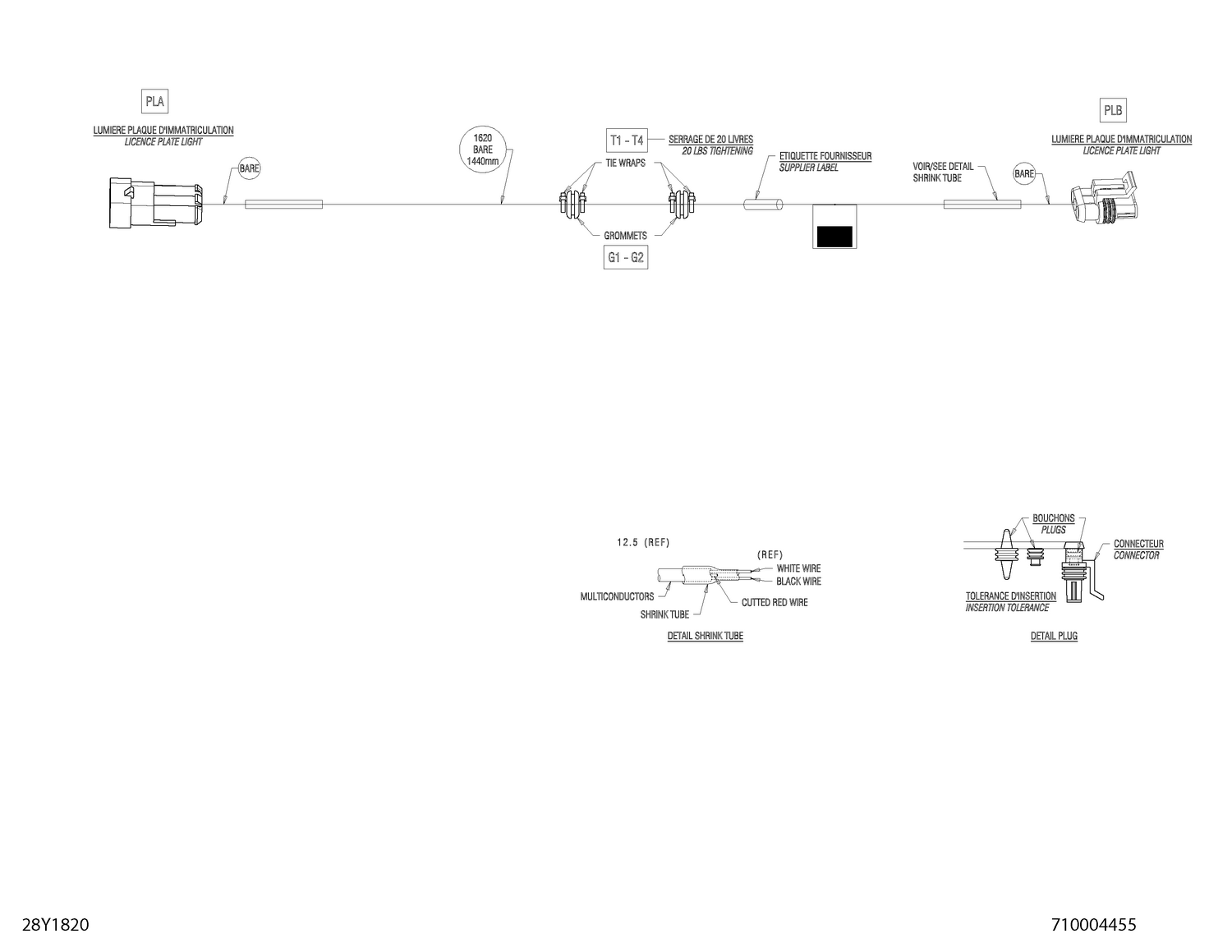

10- Rear Harness S & STD

10- Rear Harness S & STD

Parts (7)

RefPart NumberDescription
PLA 409013700 Plug
PLA 515176164 Male Terminal
PLA 515176621 Wire Seal
PLA 710000568 Housing
PLB 409013700 Plug
PLB 409209600 Female Housing, 3 Circuits
PLB 515176621 Wire Seal
