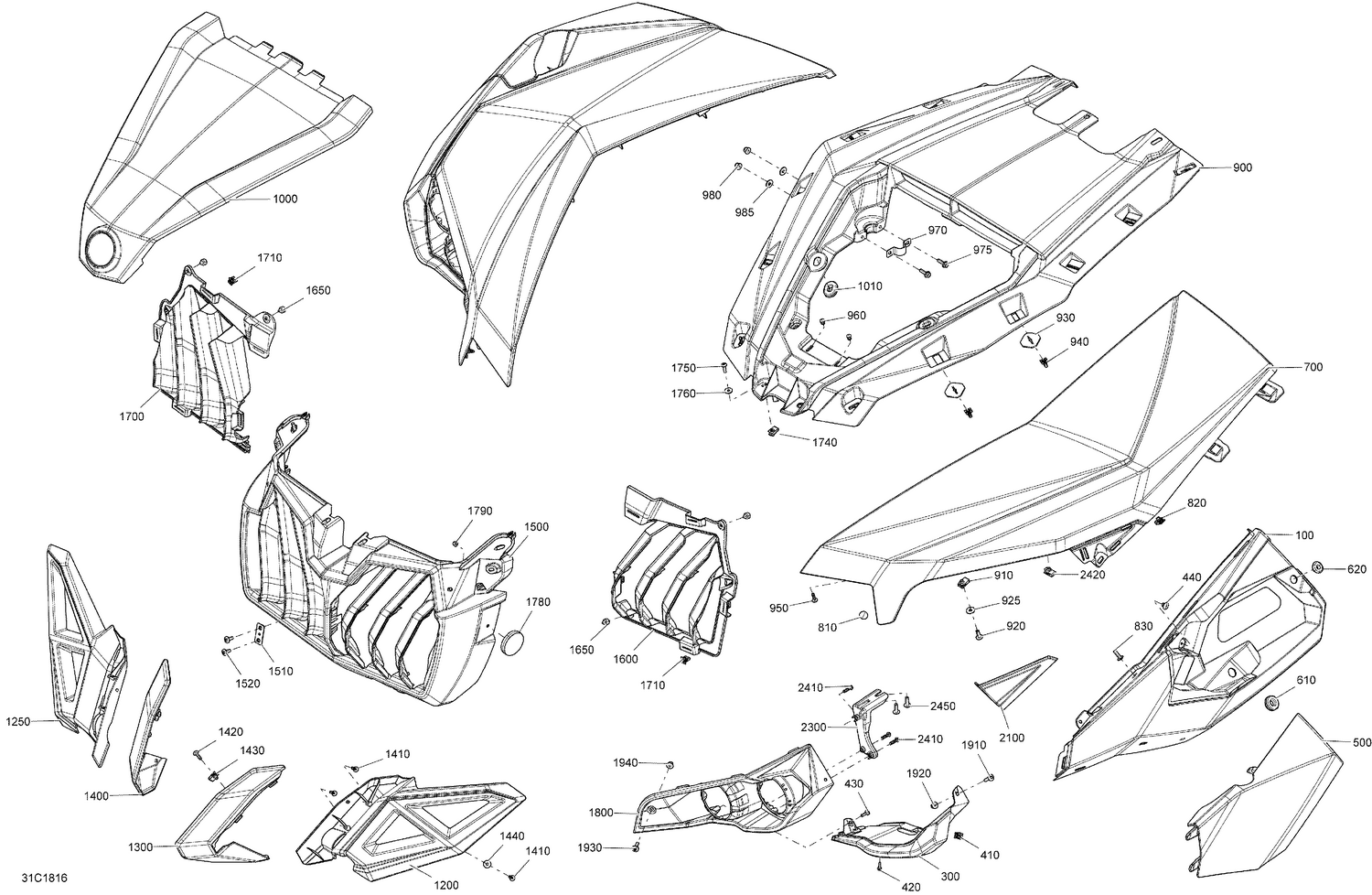

09- Body Front Part Maverick MAX - Package XMR
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705012061 | PAINTED SUNBURST YELLOW LH FRONT FENDER - Call your local BRP dealership |
| 100 | 705012062 | PAINTED SUNBURST YELLOW RH FRONT FENDER - Call your local BRP dealership |
| 300 | 705012065 | PAINTED SUNBURST YELLOW LH FRONT TRIM - Call your local BRP dealership |
| 400 | 705012066 | Painted Sunburst Yellow RH Front Trim |
| 410 | 517302785 | Edge Clip |
| 420 | 250000202 | Self Tapping Screw #8 X 5/8 |
| 430 | 250000720 | Torx Screw K50 X 16 |
| 440 | 293150104 | Pop Rivet 3/16" |
| 500 | 705012067 | Painted Sunburst Yellow LH Cover Fender |
| 500 | 705012068 | Painted Sunburst Yellow RH Cover Fender |
| 610 | 517303756 | Grommet |
| 620 | 705003264 | Grommet |
| 700 | 705012073 | Painted Carbon Black Left Fixed Hood |
| 800 | 705012074 | PAINTED CARBON BLACK RIGHT FIXED HOOD - Call your local BRP dealership |
| 810 | 414644300 | Black, Dart |
| 820 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 830 | 250000722 | Torx Screw M6 X 20 |
| 900 | 705007960 | FIXE CENTER HOOD - Call your local BRP dealership |
| 910 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 920 | 250000722 | Torx Screw M6 X 20 |
| 925 | 234062670 | Stainless Steel Flat Washer |
| 930 | 705003841 | Support Plate |
| 940 | 517302785 | Edge Clip |
| 950 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 960 | 293150104 | Pop Rivet 3/16" |
| 970 | 705006623 | Clamp |
| 975 | 207662054 | Hex. Flange Screw M6 X 20 |
| 980 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 985 | 234062670 | Stainless Steel Flat Washer |
| 1000 | 705011741 | Painted Deep Black Hood |
| 1010 | 705005156 | Oval Washer |
| 1200 | 705007497 | LH Bumper Grille |
| 1250 | 705007498 | RH Bumper Grille |
| 1300 | 705012075 | TRIM_BUMPER FL B-354 - Call your local BRP dealership |
| 1400 | 705012076 | TRIM_BUMPER FR B-354 - Call your local BRP dealership |
| 1410 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1420 | 250000724 | Torx Screw M5 X 20 |
| 1430 | 250000958 | Panel Nut M5 X 0.8 |
| 1440 | 250200025 | Washer M5 |
| 1500 | 705005784 | Front Radiator Grille |
| 1510 | 705006635 | Radiator Grille Bracket |
| 1520 | 250000721 | Torx Truss Screw M6 X 16 |
| 1600 | 705005983 | LH Rear Radiator Grille |
| 1650 | 293830005 | Rubber Bumper |
| 1700 | 705005984 | RH Rear Radiator Grille |
| 1710 | 517302785 | Edge Clip |
| 1740 | 250000958 | Panel Nut M5 X 0.8 |
| 1750 | 250000724 | Torx Screw M5 X 20 |
| 1760 | 250200025 | Washer M5 |
| 1780 | 705011222 | Amber Reflector |
| 1800 | 705004508 | LH Front Facia |
| 1900 | 705004509 | RH Front Facia |
| 1910 | 250000758 | Torx Screw M6 X 25 |
| 1920 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1930 | 250000712 | Torx Screw M6 X 20 |
| 1940 | 233261434 | Flange Elastic Nut M6 |
| 2100 | 705005992 | LH Front Facia Trim |
| 2200 | 705005993 | RH Front Facia Trim |
| 2300 | 705006078 | LH Front Facia Support |
| 2400 | 705006079 | RH Front Facia Support |
| 2410 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 2420 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
