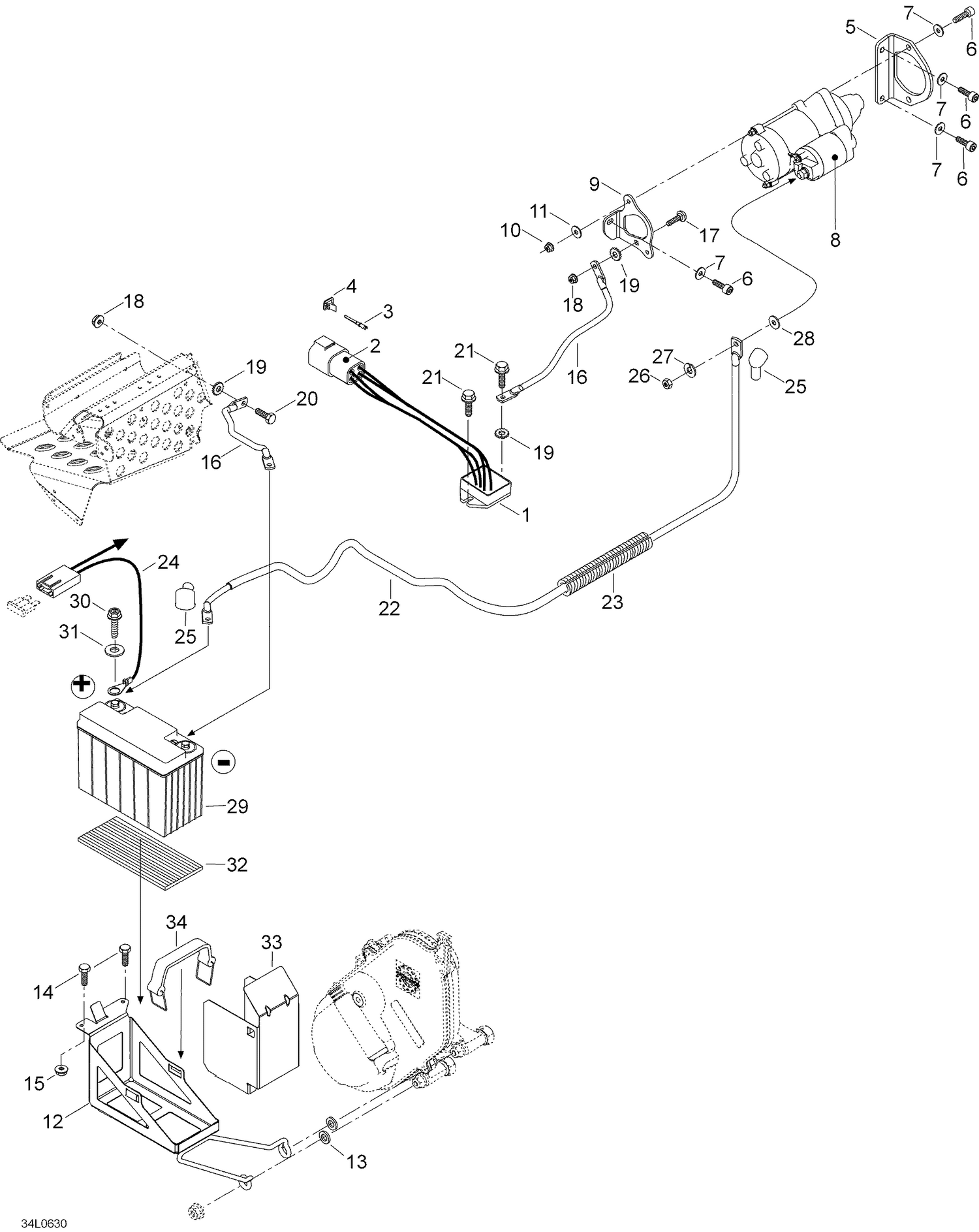

| Ref | Part Number | Description |
|---|
| 2 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 3 |
515175568 |
Connector |
| 4 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 5 |
515175659 |
Starter bracket, PTO-side |
| 6 |
40305 |
Socket head screw M8 x 20 |
| 7 |
20014 |
Spring washer A8 |
| 8 |
515175141 |
Starter |
| 9 |
515175633 |
STARTER SUPPORT MAG SIDE - Call your local BRP dealership |
| 9 |
515175660 |
Starter bracket, MAG-side |
| 10 |
33009 |
Nut elastic M5 |
| 11 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 12 |
515175848 |
Battery support |
| 13 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 14 |
40247 |
Screw M5 x 16 |
| 15 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 16 |
515175483 |
GROUND WIRE - Call your local BRP dealership |
| 17 |
40866 |
Locking screw M6 x 20 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 19 |
20017 |
Serrated lock washer M6 |
| 20 |
40029 |
Hex. screw M6 x 16 |
| 21 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 22 |
515175634 |
Battery wire |
| 23 |
28012 |
Tubing |
| 24 |
5446894 |
Wire, fuse-battery |
| 25 |
570151000 |
Cap protection |
| 26 |
33006 |
Nut M8 |
| 27 |
20014 |
Spring washer A8 |
| 28 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 30 |
207161644 |
Screw M6 x 16 |
| 31 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 32 |
5347314 |
Rubber blanket |
| 33 |
515175643 |
DEFLECTOR - Call your local BRP dealership |
