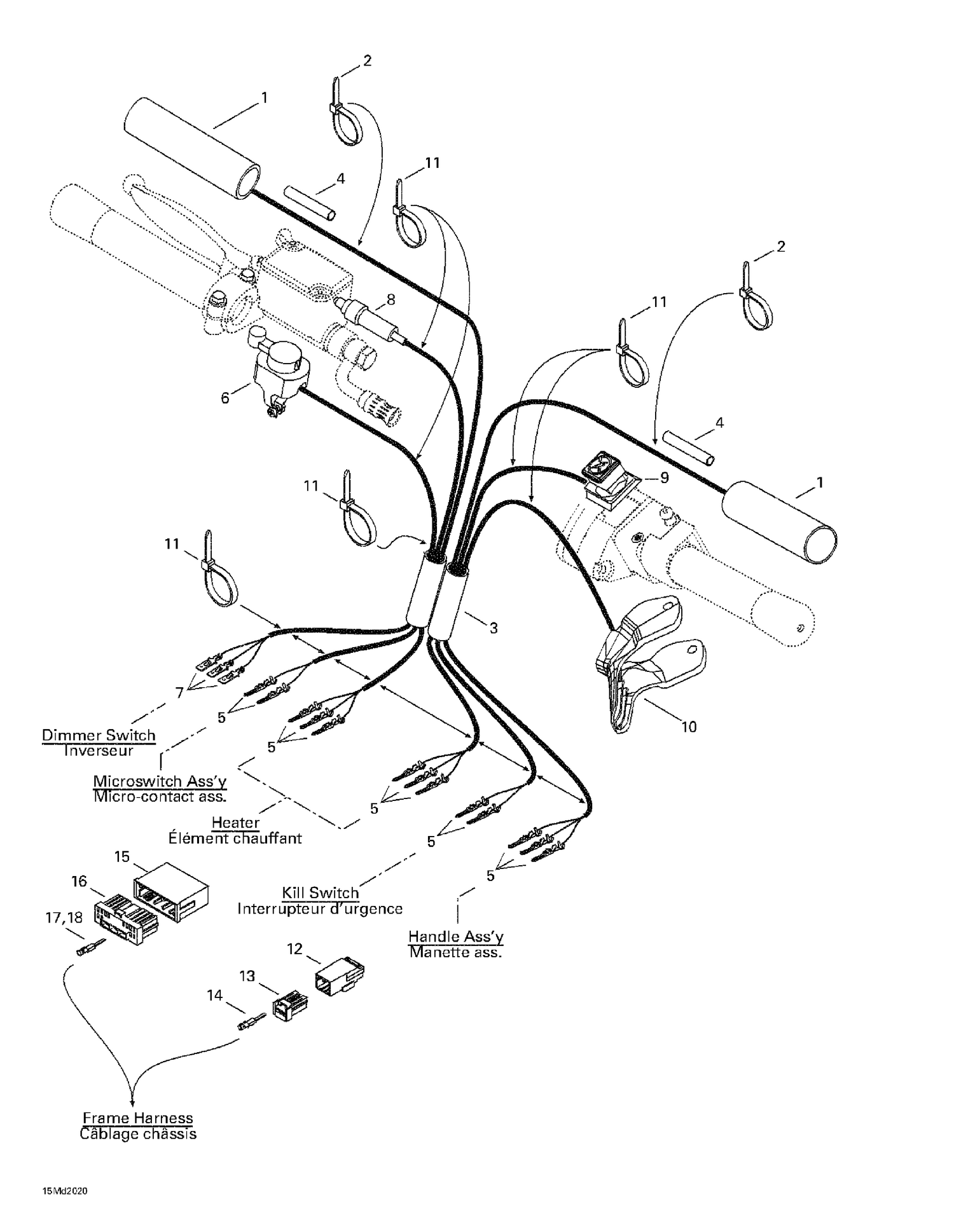

07- Steering System
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515175573 | Heating Grip This part replaces 515175389. |
| 2 | 293750001 | Tie Wrap 94 mm |
| 3 | 515175314 | GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 4 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 5 | 515175232 | Male Terminal |
| 6 | 515175391 | Dimmer Switch |
| 7 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 8 | 507032366 | Microswitch This part replaces 507032284. |
| 9 | 515175410 | Kill Switch |
| 10 | 512060214 | Handle Ass'y This part replaces 512059152. |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 515175494 | Male Housing, 3 Circuits |
| 13 | 515175495 | Female Housing, 3 Circuits |
| 14 | 515175231 | Female Terminal |
| 15 | 515175352 | MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 16 | 515175350 | Female Terminal Housing, 13 Circuits |
| 17 | 515175231 | Female Terminal |
