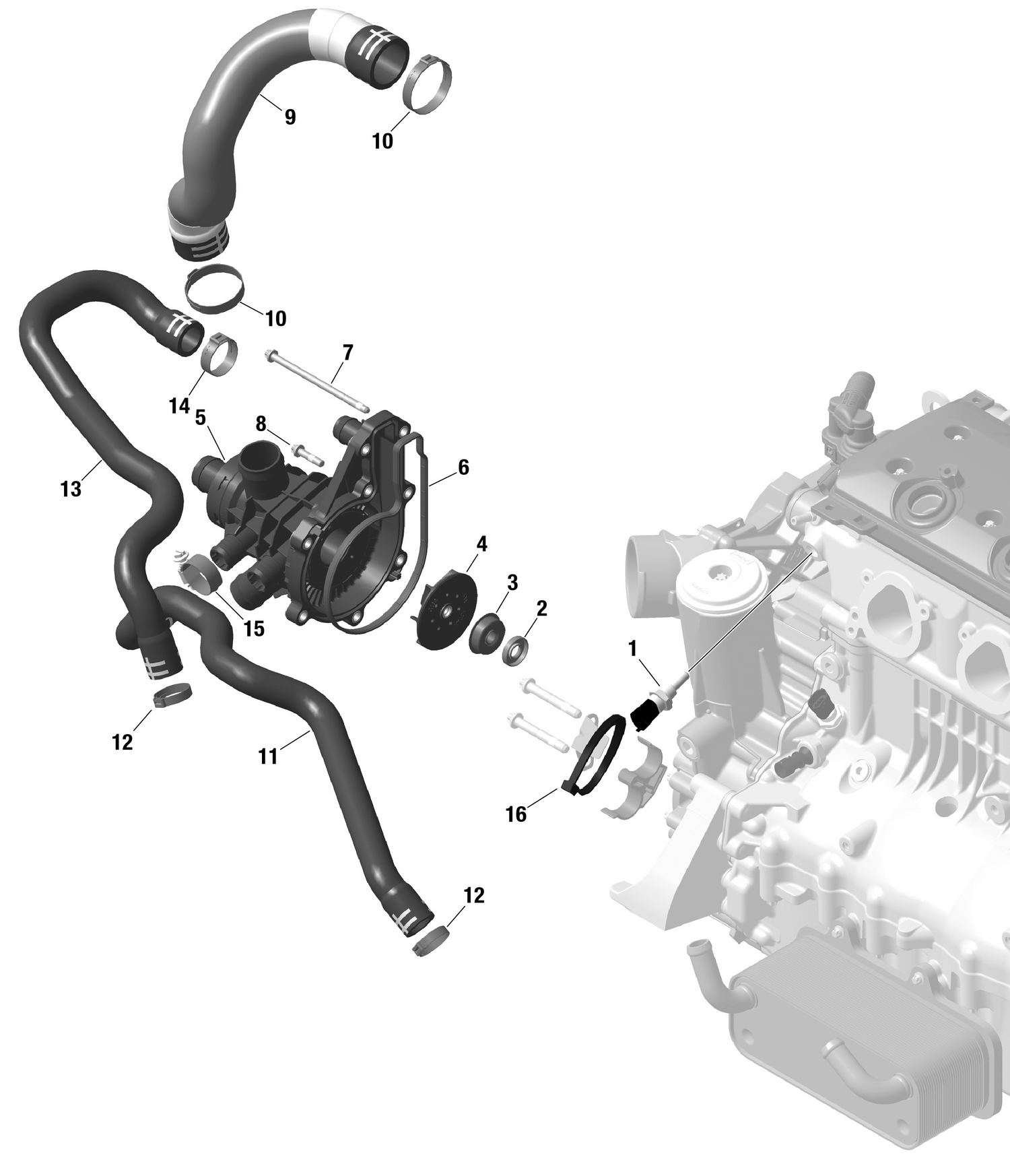

01- ROTAX - Engine Cooling
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 278002895 | Temperature Sensor |
| 4 | 420922804 | Impeller |
| 7 | 420641338 | Torx Flange Screw M6 X 105 |
| 8 | 420641238 | Torx Flange Screw M6 X 25 |
| 9 | 420922823 | Formed Hose |
| 10 | 420851687 | Oetiker Clamp |
| 11 | 420822763 | Formed Hose |
| 12 | 420853161 | Clamp |
| 13 | 420822768 | Formed Hose |
| 14 | 420851671 | Clamp 28.4 31.6 |
| 15 | 293650019 | Tridon Gear Clamp |
