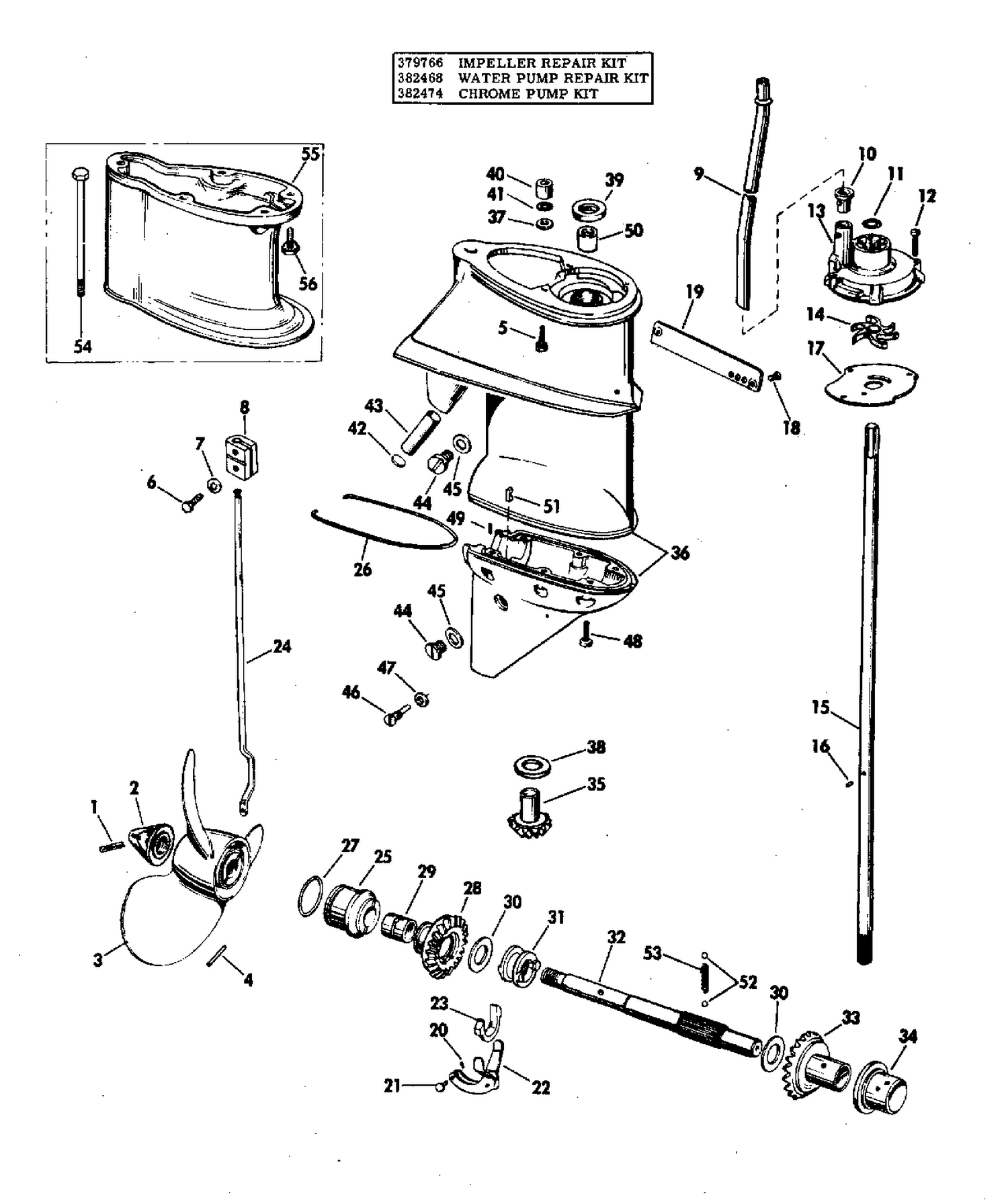

| Ref | Part Number | Description |
|---|
| 2 |
0376501 |
NUT, Propeller |
| 3 |
0379717 |
PROPELLER 9 X 9 |
| 3 |
0383629 |
PROPELLER 9 X 10 (STD) |
| 3 |
0592959 |
PROPELLER 9 x 10 |
| 4 |
0307949 |
DRIVE PIN, Propeller |
| 5 |
0309705 |
SCREW This part replaces 0307155. |
| 8 |
0304081 |
CONNECTOR 5 " EXTENSION KIT |
| 9 |
0313777 |
TUBE, Water, standard |
| 9 |
0313778 |
TUBE, Wataer long 5 INCH LONGER PARTS |
| 12 |
0302508 |
SCREW, Impeller housing |
| 13 |
0313543 |
HOUSING, Impeller |
| 14 |
0375638 |
IIMPELLER, Water pump |
| 15 |
0315385 |
DRIVESHAFT, Standard |
| 15 |
0315386 |
DRIVE, Shaft long 5 INCH LONGER PARTS |
| 16 |
0300771 |
PIN, Impeller |
| 17 |
0303069 |
PLATE, Impeller housing |
| 18 |
0303587 |
SCRES,Cover plate This part replaces 0302509. |
| 19 |
0302505 |
COVER, Water by-pass |
| 22 |
0375755 |
LEVER & PIN ASSY. |
| 23 |
0302500 |
CRADLE |
| 24 |
0303098 |
ROD, Lower shfit, standard |
| 24 |
0303257 |
ROD, Shift, lower, long |
| 25 |
0383757 |
GEARCASE HEAD ASSY |
| 26 |
SEAL, |
Gearcase |
| 28 |
0316504 |
GEAR, Reverse |
| 29 |
0303997 |
BUSHING, Reaverse gear |
| 30 |
0301884 |
WASHER, Thrust |
| 31 |
0316501 |
SHIFT, Clutch dog |
| 32 |
0316502 |
SHAFT, Propeller |
| 33 |
0384566 |
GEAR & BUSHING, Forward |
| 34 |
0302496 |
BEARING, Front |
| 35 |
0308617 |
PINION, Draft shaft |
| 36 |
0389691 |
GEARCASE & BRG. ASSY. This part replaces 0383851. |
| 41 |
0301877 |
O RING SHIFT ROD |
| 47 |
0307853 |
O RING |
| 48 |
0330562 |
SCREW, Gearcase This part replaces 0304070. |
| 49 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 54 |
0304135 |
SCREW, Exh. hsg. to gearcase, rear, long |
| 55 |
0327563 |
EXTENSION. GEARCASE 5 INCH LONGER PARTS This part replaces 0304136. |
| 0301967 |
0301967 |
O RING |
| 0304801 |
0304801 |
MOUNT, Rubber, exhaust tube, upper front |
| 0313524 |
0324455 |
SPACER, Exh. hsg. to imp. hsg This part replaces 0313524. |
| 0383845 |
0383845 |
EXTENSION KIT ASSEMBLY 5 INCH LONGER PARTS |
| 0384577 |
0384577 |
GEARCASE ASSY, Less drive shaft & pump |
