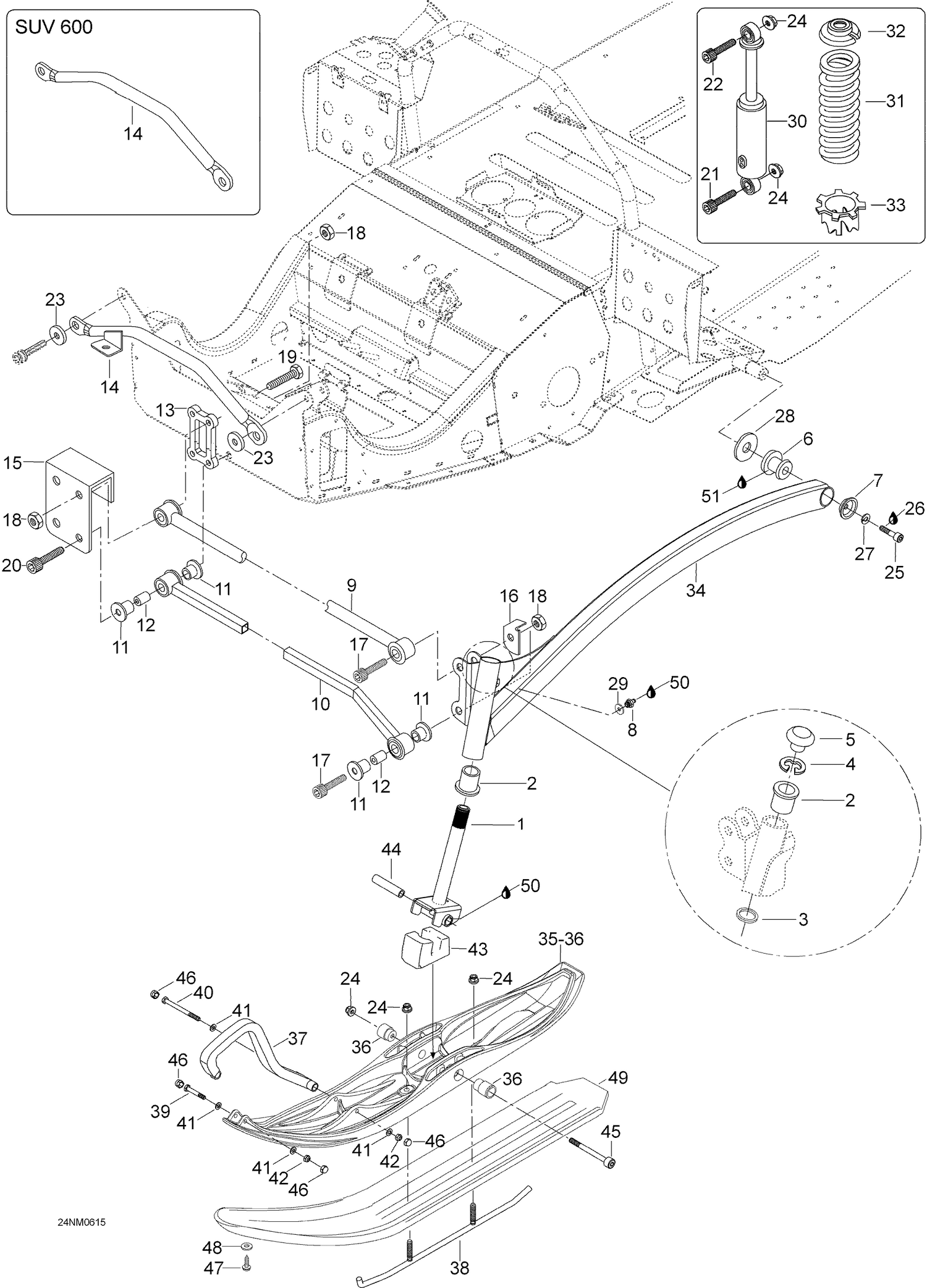

| Ref | Part Number | Description |
|---|
| 1 |
506151234 |
Ski Leg |
| 2 |
505070003 |
Cushion |
| 3 |
505070004 |
WASHER - Call your local BRP dealership |
| 4 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 5 |
572091300 |
Cap |
| 6 |
570062200 |
DAMPER - Call your local BRP dealership |
| 7 |
705007171 |
Cup This part replaces 506115800. |
| 8 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011. |
| 11 |
506149100 |
CUSHION - Call your local BRP dealership |
| 12 |
605450024 |
BUSHING - Call your local BRP dealership |
| 13 |
M5345384 |
Lower Link Plate |
| 15 |
M5345716 |
Painted Link Plate |
| 16 |
605448861 |
RH Plate Locking |
| 16 |
605448862 |
LH Plate Locking |
| 17 |
M40371 |
Screw Allen M12 X 55 |
| 18 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 19 |
M40185 |
Screw M12 X 75 |
| 20 |
M40370 |
SCREW ALLEN M12 X 75 - Call your local BRP dealership |
| 21 |
M40837 |
Screw M10 X 55 |
| 22 |
M40254 |
SCREW M10 X 65 - Call your local BRP dealership |
| 23 |
605449801 |
WASHER - Call your local BRP dealership |
| 24 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074. |
| 25 |
M40810 |
Screw Allen M8 X 20 |
| 26 |
293800060 |
Loctite 243, 10 ml |
| 27 |
234181401 |
Lock Washer 8 mm |
| 28 |
503146700 |
WASHER - Call your local BRP dealership |
| 29 |
M20007 |
WASHER - Call your local BRP dealership |
| 31 |
M25061 |
White Spring |
| 32 |
230076 |
Spring Seat This part replaces M230076. |
| 33 |
M230078 |
CAM - Call your local BRP dealership |
| 34 |
605251767 |
SWING ARM WELD LH B - Call your local BRP dealership |
| 34 |
605251768 |
Swing Arm Weld RH |
| 36 |
605348392 |
Bushing |
| 37 |
505070963 |
Black, Handle |
| 38 |
860202822 |
Carbide Round Runner Kit This part replaces 605352643. |
| 39 |
207085044 |
Hex. Screw M8 X 50 |
| 40 |
207089044 |
Hex. Screw M8 X 90 This part replaces M40264. |
| 41 |
234081410 |
Flat Washer 8 mm |
| 42 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 43 |
605348458 |
SKI STOPPER - Call your local BRP dealership |
| 44 |
506133300 |
Spacer |
| 45 |
40225 |
Allen Screw M10x140 8.8zn(1=10pcs) This part replaces M40225. |
| 46 |
28056 |
Cover This part replaces M28056. |
| 47 |
XXX |
Not Available As Spare Parts |
| 48 |
XXX |
Not Available As Spare Parts |
| 49 |
XXX |
Not Available As Spare Parts |
| 50 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
