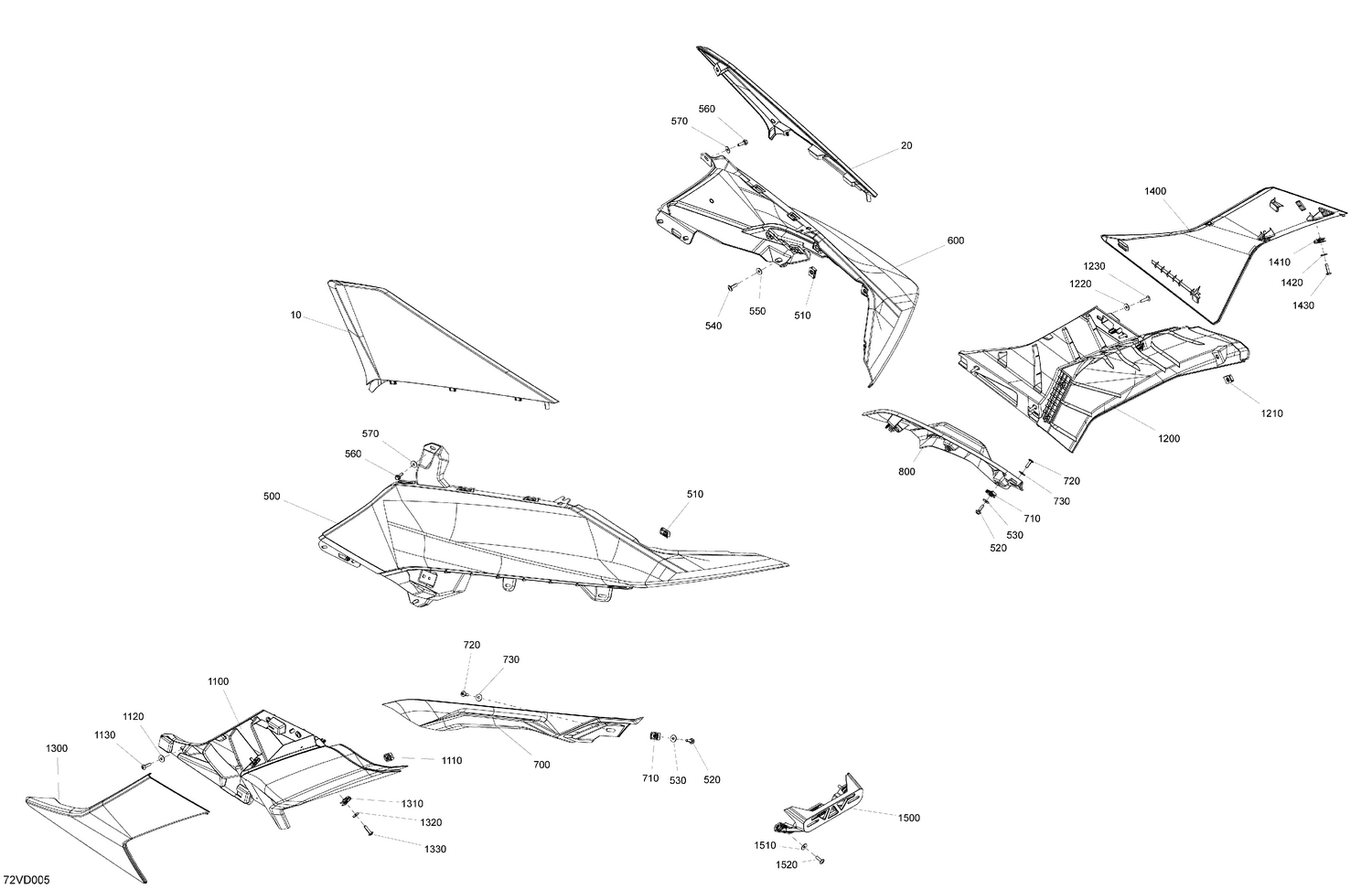

07- Body - Rear Section
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708303784 | Deep Black, LH Exterior Body Panel |
| 20 | 708303785 | Deep Black, RH Exterior Body Panel |
| 500 | 708304932 | Legion Red, LH Rear Fender |
| 510 | 250100208 | Panel Nut M6 X 1.0 |
| 520 | 207662054 | Hex. Flange Screw M6 X 20 |
| 530 | 234062670 | Stainless Steel Flat Washer |
| 540 | 250000807 | Torx Truss Screw M6 X 25 |
| 550 | 234062670 | Stainless Steel Flat Washer |
| 560 | 207662054 | Hex. Flange Screw M6 X 20 |
| 570 | 234062670 | Stainless Steel Flat Washer |
| 600 | 708304933 | Legion Red, RH Rear Fender |
| 700 | 705015534 | LH Rear Mud Guard |
| 710 | 250100208 | Panel Nut M6 X 1.0 |
| 720 | 250000722 | Torx Screw M6 X 20 |
| 730 | 234062670 | Stainless Steel Flat Washer |
| 800 | 705015535 | RH Rear Mud Guard |
| 1100 | 705016469 | LH Rear Mud Guard |
| 1110 | 250100208 | Panel Nut M6 X 1.0 |
| 1120 | 234062670 | Stainless Steel Flat Washer |
| 1130 | 250000807 | Torx Truss Screw M6 X 25 |
| 1200 | 705016470 | RH Rear Mud Guard |
| 1210 | 250100208 | Panel Nut M6 X 1.0 |
| 1220 | 234062670 | Stainless Steel Flat Washer |
| 1230 | 250000807 | Torx Truss Screw M6 X 25 |
| 1300 | 705018949 | Legion Red, LH Lower Body Panel |
| 1310 | 250100208 | Panel Nut M6 X 1.0 |
| 1320 | 234062670 | Stainless Steel Flat Washer |
| 1330 | 250000807 | Torx Truss Screw M6 X 25 |
| 1400 | 705018950 | Legion Red, RH Lower Body Panel |
| 1410 | 250100208 | Panel Nut M6 X 1.0 |
| 1420 | 234062670 | Stainless Steel Flat Washer |
| 1430 | 250000807 | Torx Truss Screw M6 X 25 |
| 1500 | 705017197 | License Plate Support |
| 1510 | 234062670 | Stainless Steel Flat Washer |
