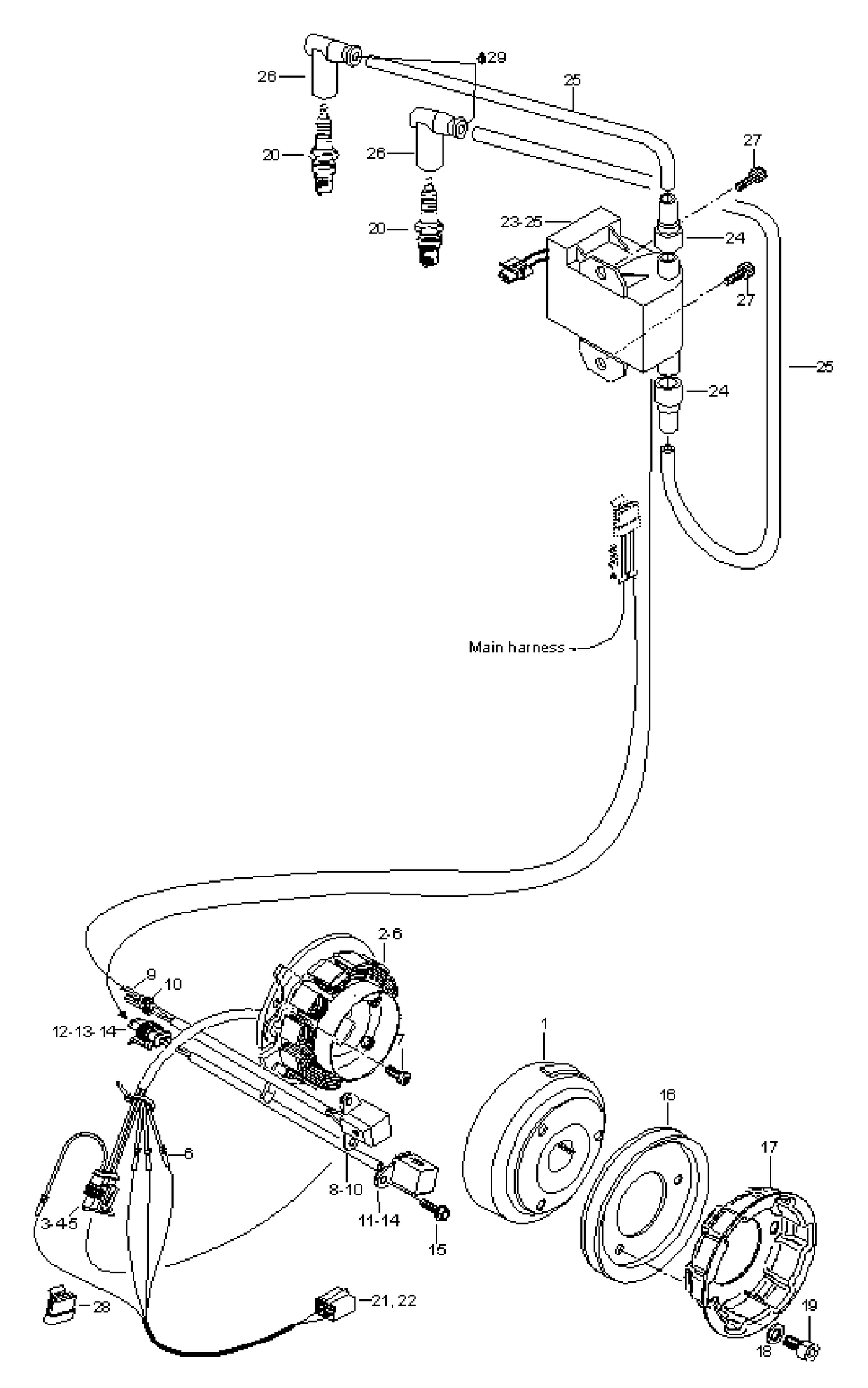

| Ref | Part Number | Description |
|---|
| 1 |
420889376 |
Magneto flywheel This part replaces 420889375. |
| 3 |
409209600 |
Female terminal housing |
| 4 |
278001014 |
Female Terminal |
| 5 |
278001013 |
Wire Seal |
| 6 |
515175567 |
Female terminal |
| 7 |
420641521 |
Screw, Torx M5 x 16 |
| 9 |
278001014 |
Female Terminal |
| 10 |
278001013 |
Wire Seal |
| 12 |
409209500 |
Female Housing, 2 Circuits |
| 13 |
278001014 |
Female Terminal |
| 14 |
278001013 |
Wire Seal |
| 15 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 16 |
420980486 |
V-belt pulley |
| 17 |
420852414 |
Starting pulley |
| 18 |
420845311 |
Spring washer |
| 19 |
420440852 |
Flanged Torx Screw M8 X 16 |
| 20 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 21 |
278001473 |
Male terminal hous. |
| 22 |
278001474 |
Lock wedge |
| 24 |
515174900 |
PROTECTION CAP - Call your local BRP dealership |
| 25 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 26 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 27 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 28 |
42618 |
Male terminal housing (4 circu.1=10pc) - Call your local BRP dealership |
