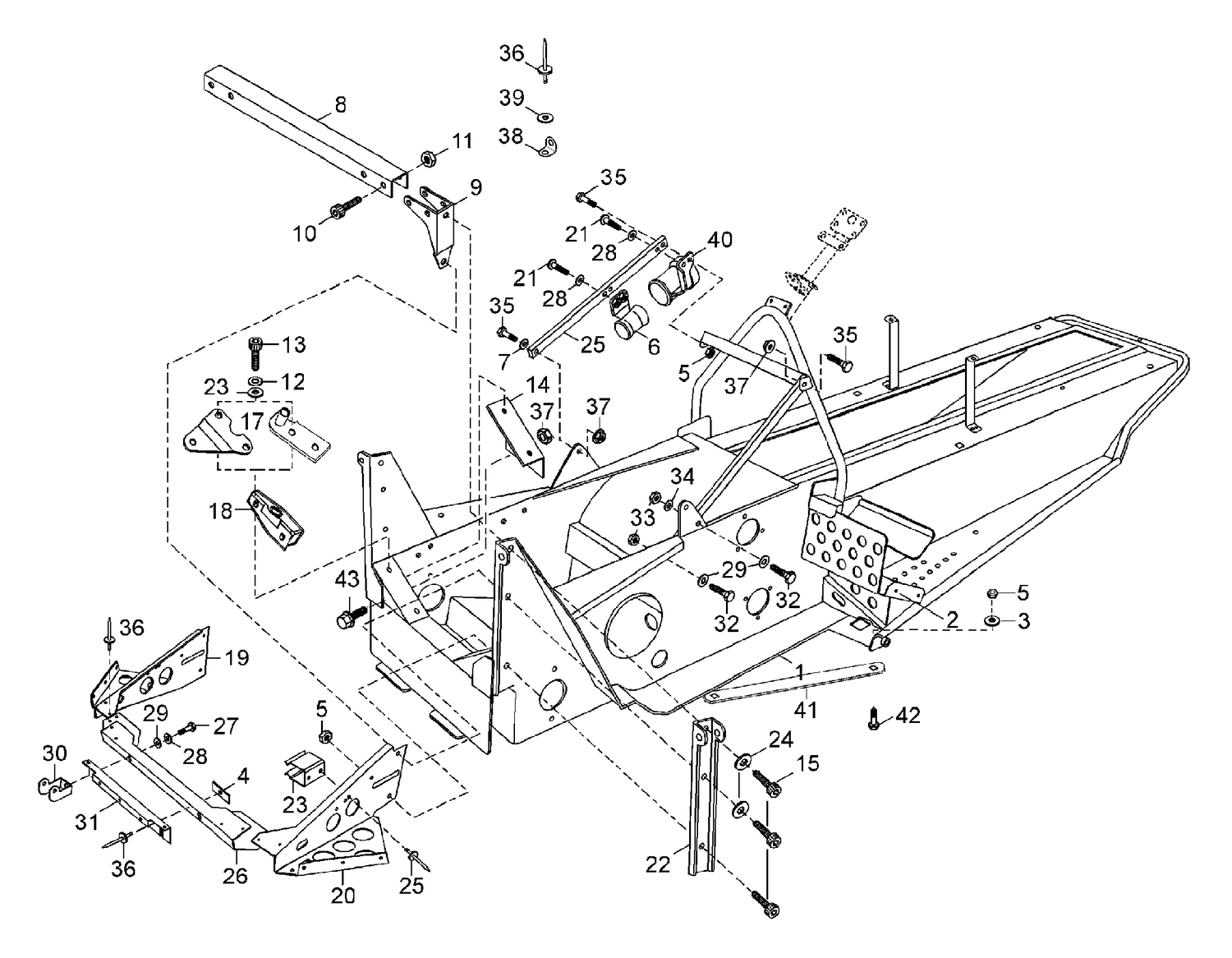

| Ref | Part Number | Description |
|---|
| 1 |
5144475 |
Frame, black |
| 2 |
5243018 |
L.H. Front footrest |
| 2 |
5243019 |
R.H. Front footrest |
| 3 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 4 |
5443926 |
Plate |
| 5 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 6 |
5443756 |
Rope Guide |
| 7 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 8 |
5342569 |
Support tube |
| 9 |
5441938 |
Support weld. |
| 10 |
40286 |
Allen sc. M8 X 45 DIN912m8.8Zn(1=10pcs) - Call your local BRP dealership |
| 11 |
33029 |
Lock nut M8 |
| 12 |
20014 |
Lock washer |
| 13 |
40305 |
Allen screw M8x20 |
| 14 |
5343067 |
Support |
| 15 |
40305 |
Allen screw M8x20 |
| 17 |
5344022 |
Exhaust Pipe Support |
| 18 |
5443069 |
Support weld. |
| 19 |
5241430 |
Bumber support R.H. |
| 20 |
5241429 |
Bumber support L.H. |
| 21 |
40155 |
Screw M6x20 |
| 22 |
5343050 |
Bracket |
| 23 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 24 |
20014 |
Spring washer |
| 25 |
5443066 |
Support R.H. |
| 25 |
5443986 |
Support L.H. |
| 26 |
5341431 |
Hinge bumber |
| 27 |
40029 |
Screw M6x16 |
| 28 |
20052 |
Spring washer |
| 29 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 30 |
5440867 |
Hinge support weld. |
| 31 |
5343948 |
Cover palte |
| 32 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 33 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 34 |
20003 |
Lock washer |
| 35 |
40037 |
Screw M8x25 |
| 36 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 37 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 38 |
548838 |
Cabel End |
| 39 |
20008 |
Washer |
| 40 |
5443999 |
Rope Guide |
| 41 |
5345770 |
Pulling Sheet |
| 42 |
40312 |
Locking screw |
