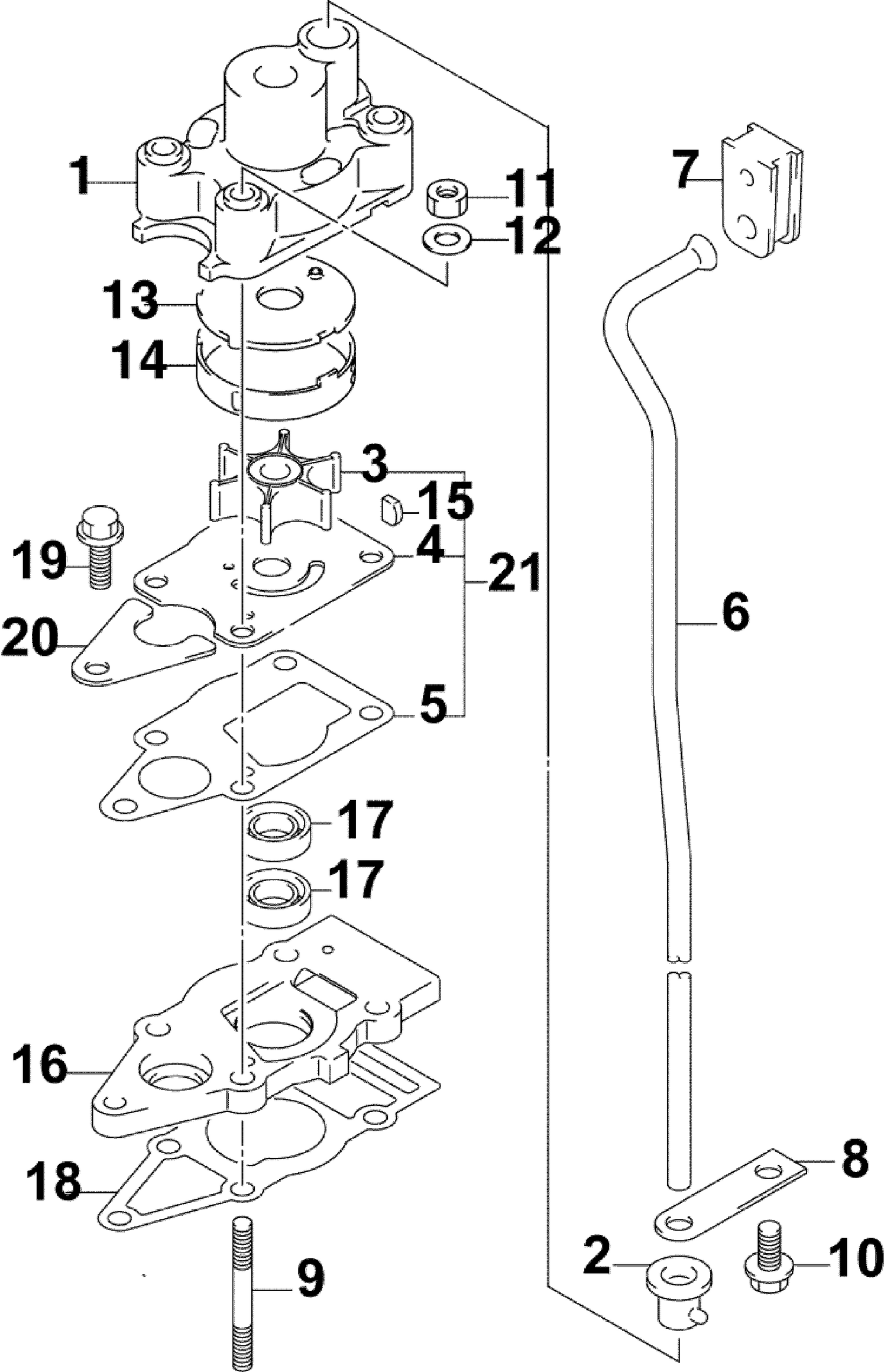

| Ref | Part Number | Description |
|---|
| 1 |
5036218 |
CASE, WATER PUMP |
| 2 |
5030187 |
GROMMET, WATER PUMP |
| 3 |
5030188 |
IMPELLER, Water pump |
| 4 |
5033380 |
PANEL, PUMP CASE UNDER |
| 5 |
5033381 |
GASKET, PUMP CASE PANEL |
| 6 |
5033382 |
TUBE, WATER (15 in. Models) |
| 6 |
5033383 |
TUBE, WATER (20 in. Models) |
| 7 |
5034324 |
GROMMET, WATER TUBE UPPER |
| 8 |
5030194 |
GUIDE, Water tube |
| 9 |
5036146 |
BOLT, Case stud |
| 13 |
5036219 |
PLATE UPPER HOUSING |
| 14 |
5036220 |
SLEEVE, HOUSING |
| 15 |
5030137 |
KEY |
| 16 |
5033427 |
HOUSING, DRIVE SHAFT |
| 18 |
5033428 |
GASKET, DRIVE SHAFT BRG HSG |
| 20 |
5034174 |
PLATE, SHIFT ROD GUIDE |
