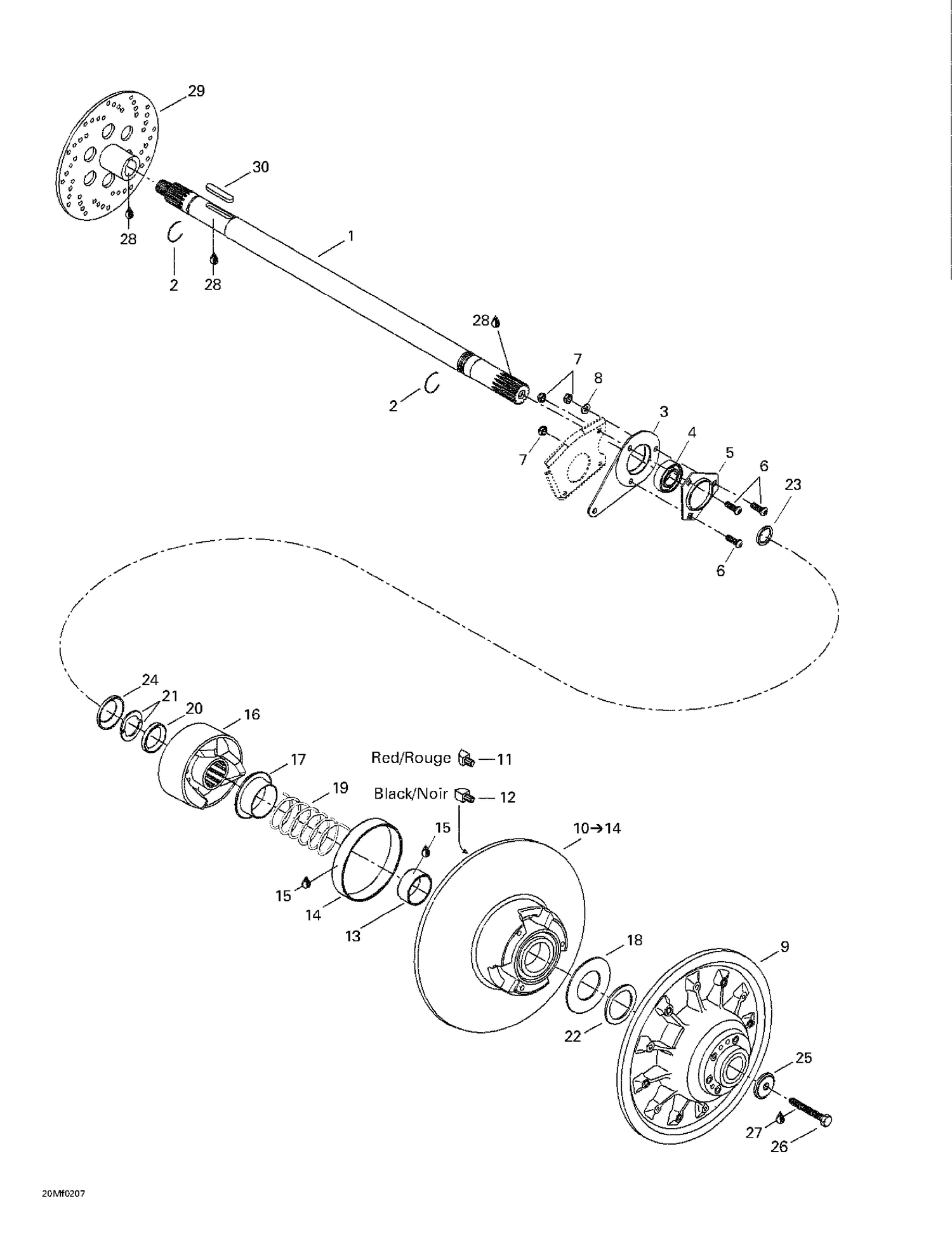

| Ref | Part Number | Description |
|---|
| 1 |
504151858 |
COUNTERSHAFT - Call your local BRP dealership |
| 2 |
371910000 |
Circlip |
| 3 |
080044200 |
Spacer (Casting) |
| 4 |
504152008 |
BALL BEARING - Call your local BRP dealership |
| 5 |
501025000 |
FLANGE - Call your local BRP dealership |
| 6 |
205482546 |
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
234081410 |
Flat Washer 8 mm |
| 9 |
417126526 |
Fixed Flange Ass'y |
| 11 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 12 |
417126374 |
Front Cam Slider Shoe, Black |
| 13 |
417126901 |
BUSHING - Call your local BRP dealership This part replaces 415092600. |
| 14 |
415092700 |
Bushing |
| 15 |
413703100 |
Loctite 609, 10 ml |
| 16 |
417126445 |
CAM ASS'Y - Call your local BRP dealership This part replaces 417126574. |
| 17 |
415006000 |
GUARD - Call your local BRP dealership |
| 18 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 19 |
415092800 |
YELLOW SPRING - Call your local BRP dealership |
| 20 |
417126375 |
Spacer |
| 21 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 22 |
504112300 |
SHIM - Call your local BRP dealership |
| 23 |
417300265 |
Spacer This part replaces 417300054. |
| 24 |
417300055 |
Protector |
| 25 |
517302322 |
Strength Washer |
| 26 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 29 |
507032203 |
Brake Disk |
