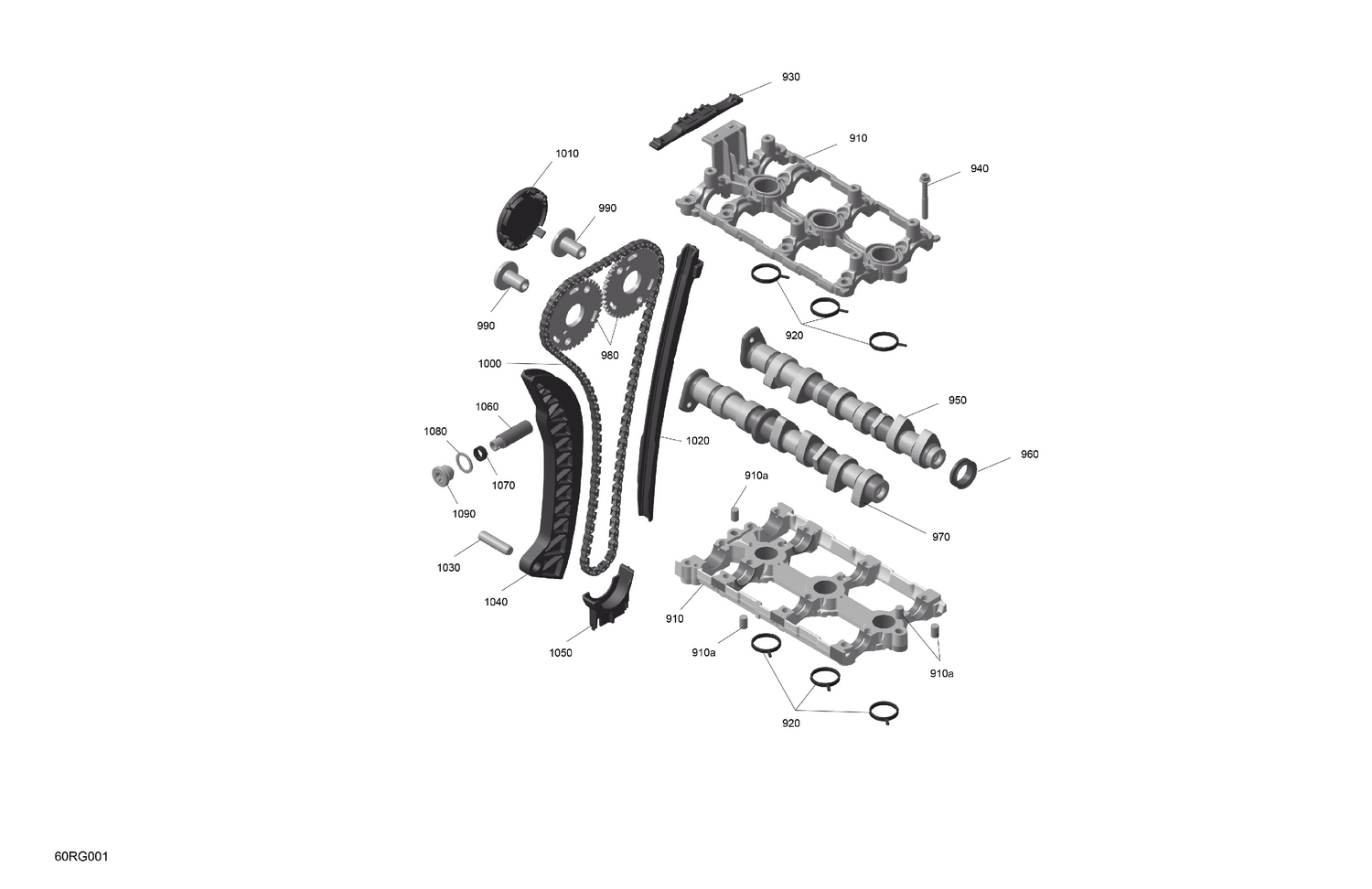

01- ROTAX - Valve Train
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 910a | 420632010 | Center Pin 8 X 12 |
| 920 | 420431760 | Gasket |
| 930 | 420936500 | Chain Guide, Upper |
| 940 | 420440324 | Flanged Torx Screw M6 X 45 |
| 950 | 420820210 | Camshaft Exhaust |
| 960 | 420630127 | V-Ring 22S FPM |
| 970 | 420820200 | Camshaft Intake |
| 980 | 420855120 | Camshaft Sprocket, 40 Teeth |
| 990 | 420441361 | Flat Head Screw M14X1.5 |
| 1000 | 420297086 | Camshaft Chain 6,35X8,25X142 |
| 1010 | 420460920 | Cover |
| 1020 | 420936010 | Chain Guide |
| 1030 | 420929937 | Needle Pin DIN 7979-D 10X40-ST |
| 1040 | 420936020 | Chain Tension Guide |
| 1050 | 420936510 | Chain Guide |
| 1060 | 420236395 | Chain Tensioner |
| 1070 | 420238732 | Compression Spring DM12,6 D1,6 L12,5 |
| 1080 | 420430624 | Gasket Ring |
