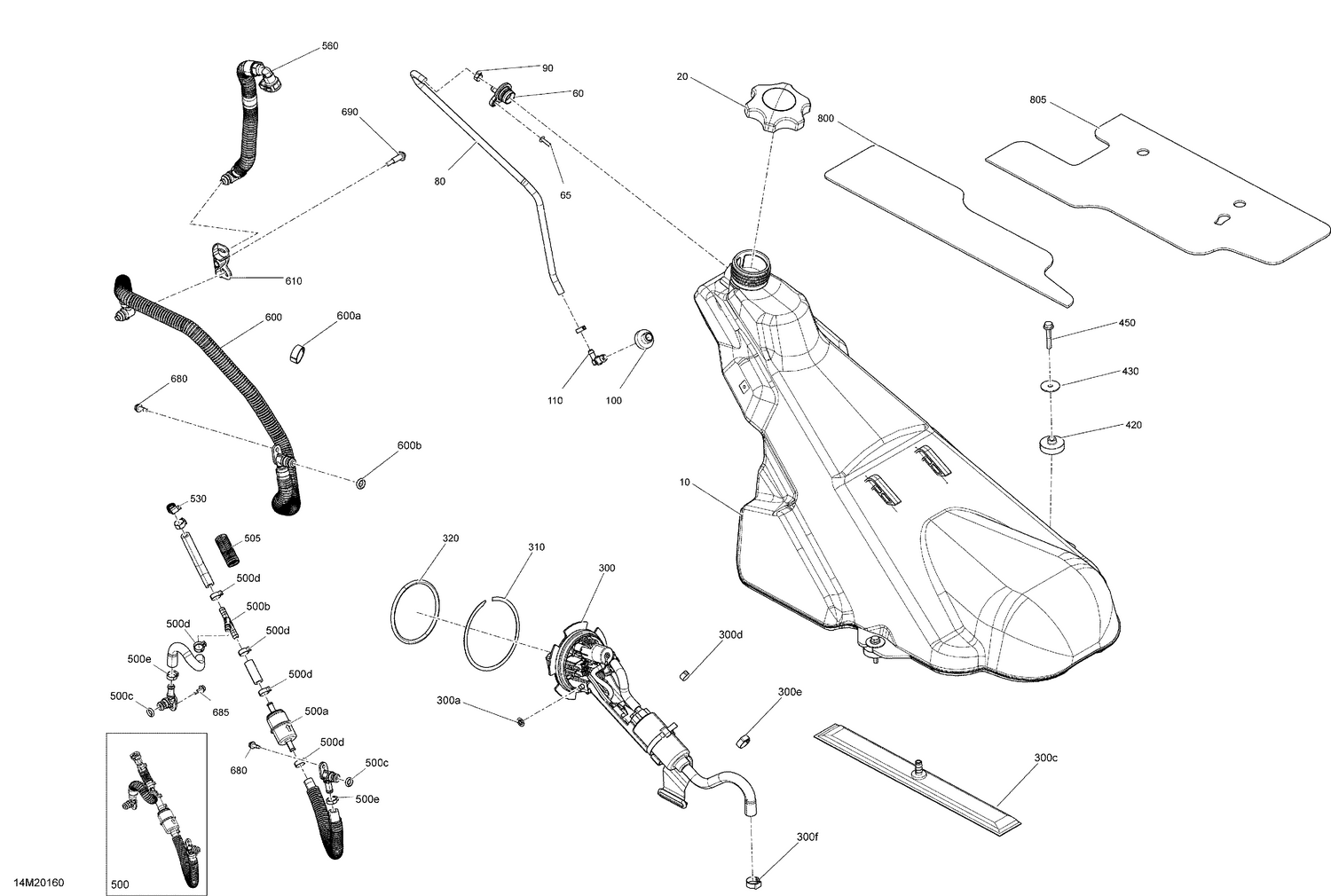

02- Engine - Fuel - Racing
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 513034008 | Fuel Tank |
| 20 | 513033752 | Fuel Tank Cap |
| 60 | 513033864 | Fitting |
| 65 | 250000918 | Truss Torx Screw K40 X 16 |
| 80 | 219704410 | Polyurethane Hose 10000Mm Long |
| 90 | 293650262 | Oeticker Clamp |
| 100 | 709200285 | Grommet |
| 110 | 414580700 | Male Connector |
| 300a | 732610072 | Push Nut |
| 300c | 861805584 | Fuel Filter This part replaces 513033992. |
| 300d | 293650207 | Clamp Oetiker |
| 300e | 293650125 | Oetiker Clamp |
| 300f | 293650053 | Crimp Clamp |
| 310 | 513033798 | Circlip |
| 320 | 513033862 | O-Ring |
| 420 | 513034007 | Socket |
| 430 | 503193995 | Washer |
| 450 | 207663544 | Hex. Flange Screw M6 X 35 |
| 500a | 513034047 | Fuel Filter This part replaces 513033719. |
| 500b | 513033926 | Y Fitting |
| 500c | 513033668 | O-Ring |
| 500d | 293650125 | Oetiker Clamp |
| 500e | 293650053 | Crimp Clamp |
| 505 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 530 | 293650171 | Tridon Gear Clamp |
| 535 | 293650047 | Crimp Clamp, 15.3-706R |
| 560 | 513033931 | Hose Fuel Tank |
| 600a | 513033910 | Ring |
| 600b | 513033668 | O-Ring |
| 610 | 513033903 | Bracket |
| 680 | 250000911 | Hex. Flange Screw M5 X 16 |
| 690 | 250001018 | Hex. Flange Screw M5 X 28 S.Grip |
| 800 | 513033866 | Insulated Foam |
