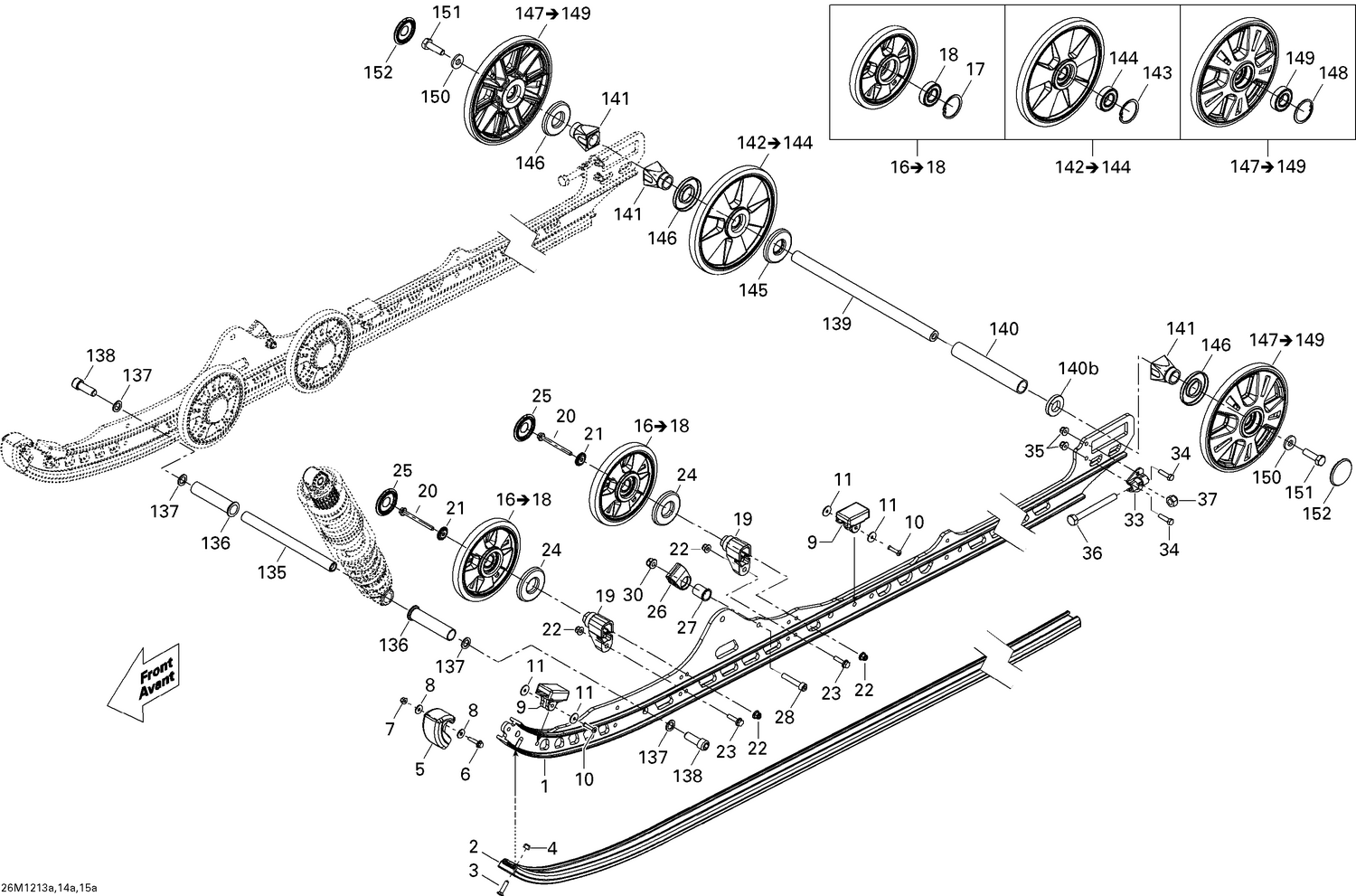

08- Rear Suspension Runner
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192206 | RAIL_SUSPENSION 154 - Call your local BRP dealership |
| 1 | 503192272 | RAIL_SUSPENSION 146 - Call your local BRP dealership |
| 1 | 503192273 | RAIL_SUSPENSION 163 - Call your local BRP dealership |
| 2 | 503191198 | Black, Slider 154 |
| 2 | 503191499 | Black, Slider 146 |
| 2 | 503191501 | Slider Shoe 163" |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503192299 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 8 | 391301600 | Washer |
| 9 | 503190576 | Rubber Stopper |
| 10 | 293150142 | Pop Rivet 3/16" |
| 11 | 503191273 | Washer |
| 17 | 415129371 | Retaining Ring |
| 18 | 503190396 | Ball Bearing |
| 19 | 503193894 | Casted Support This part replaces 503193082. |
| 20 | 250001027 | Hex. Flange Screw M6 X 70 This part replaces 250000475. |
| 21 | 503191820 | Wheel Cup M6 |
| 22 | 250100130 | ELASTIC FLANGE NUT M6 - Call your local BRP dealership |
| 23 | 250000522 | Hex Flange Screw M6 x 25 |
| 24 | 503190434 | Labyrinth Seal |
| 25 | 503192771 | Black, Wheel Cap |
| 26 | 861805547 | Spring Support Kit This part replaces 503191183. |
| 27 | 861805547 | Spring Support Kit This part replaces 503190754. |
| 28 | 205082544 | Socket Head Screw M8 X 25 |
| 30 | 250100131 | Elastic Flange Nut M8 |
| 33 | 503192583 | Tensioner This part replaces 503192814. |
| 34 | 250000479 | HEX. SCREW CAP FULL THREAD M6 X 25 - Call your local BRP dealership |
| 35 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 36 | 230100054 | Hex Screw M10 x 100 |
| 37 | 250100132 | ELASTIC LOCKING NUT M10 - Call your local BRP dealership |
| 135 | 503189272 | CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258. |
| 136 | 503191259 | Center Bushing |
| 137 | 503192491 | Washer |
| 138 | 250000484 | Socket Screw M12 X 35 |
| 139 | 503190429 | Rear Axle |
| 140 | 503196317 | Spacer This part replaces 503190430. |
| 140b | 503190432 | Washer |
| 141 | 503190428 | Rear Wheel Spacer |
| 143 | 415129371 | Retaining Ring |
| 144 | 503190396 | Ball Bearing |
| 145 | 503190682 | Labyrinth Seal |
| 146 | 503190434 | Labyrinth Seal |
| 148 | 415129371 | Retaining Ring |
| 149 | 503190396 | Ball Bearing |
| 150 | 503190439 | Washer |
| 151 | 250000019 | Hex. Screw With Nylon |
