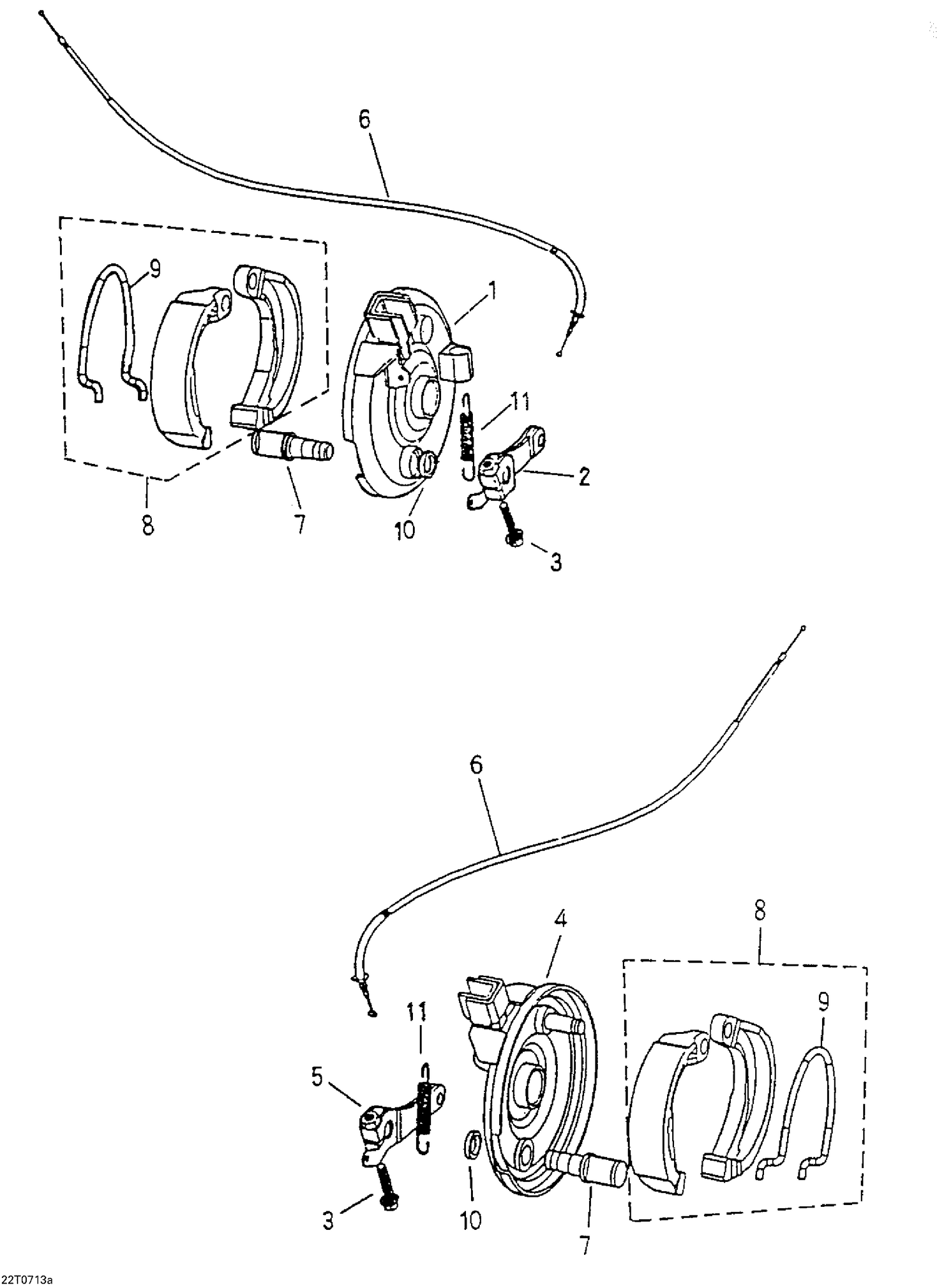

| Ref | Part Number | Description |
|---|
| 1 |
A45010145000 |
FRONT LH BRAKE PANEL - Call your local BRP dealership |
| 2 |
A45410145000 |
FRONT LH BRAKE ARM - Call your local BRP dealership |
| 3 |
A960000502408 |
HEXAGONAL WASHER FACE BOLT M5X24 - Call your local BRP dealership |
| 4 |
A45020145000 |
FRONT RH BRAKE PANEL - Call your local BRP dealership |
| 5 |
A45310145000 |
Front Right Brake Arm |
| 6 |
A45450145000 |
Front Brake Cable |
| 7 |
A45141145000 |
FRONT BRAKE CAM SHAFT - Call your local BRP dealership |
| 9 |
A45133145000 |
STRAIN SPRING - Call your local BRP dealership |
| 10 |
A91313104000 |
OIL RING - Call your local BRP dealership |
