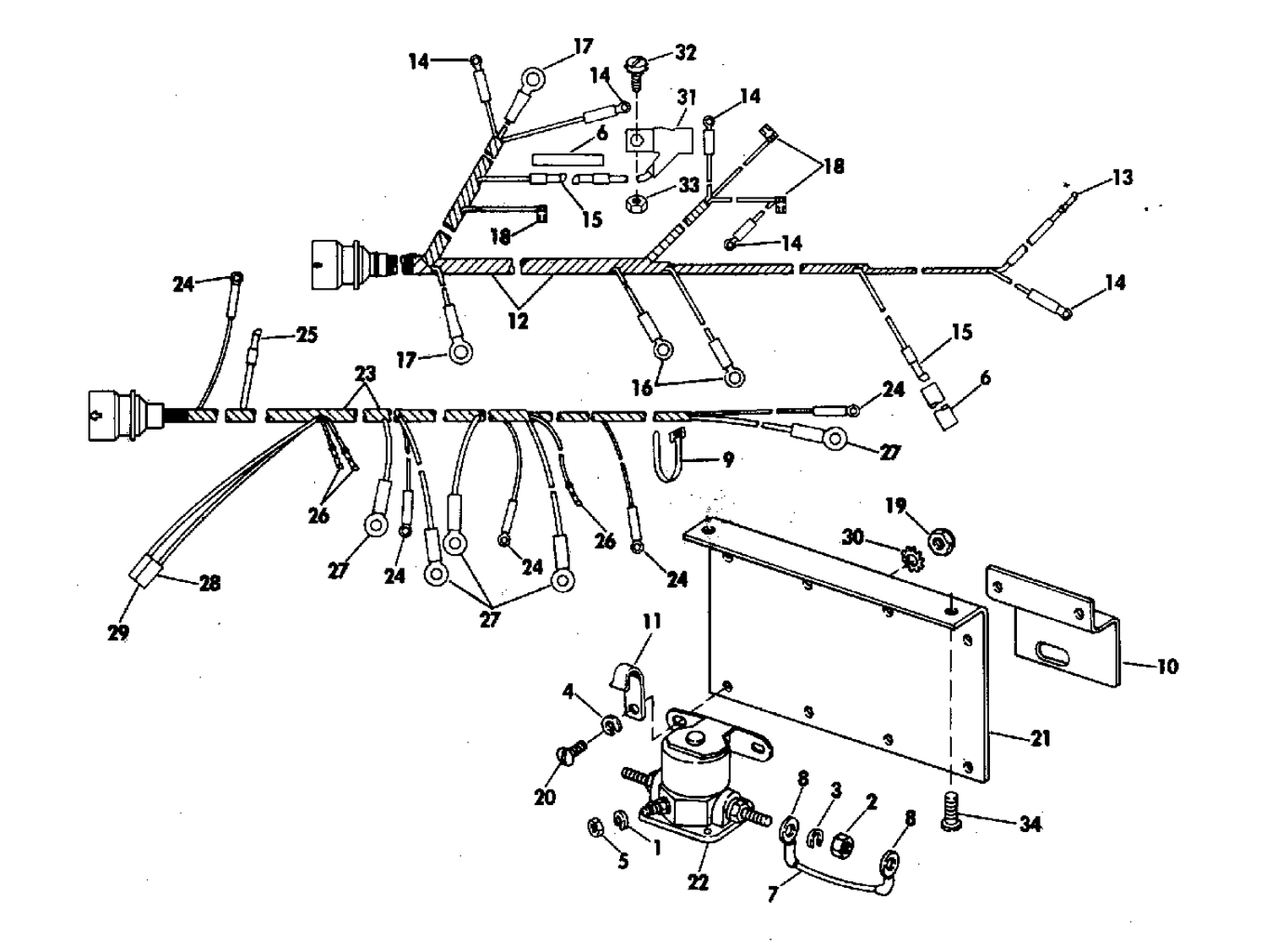

| Ref | Part Number | Description |
|---|
| 4 |
0329241 |
RONDELLE This part replaces 0306482. |
| 6 |
0314936 |
HEAT SHRINK |
| 7 |
0981890 |
LEAAD ASSY This part replaces 0383421. |
| 9 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 0315633. |
| 10 |
0908576 |
SUPPORT, Solenoid bracket, 140 hp |
| 11 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309846. |
| 12 |
0979762 |
CABLE ASSY, Eng, 120 & 140 hp |
| 12 |
0979862 |
CABLE ASSY, Eng, 165 hp |
| 15 |
0314844 |
KNIFE DISCONNECT |
| 19 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 20 |
0300646 |
VIS, ancrage |
| 21 |
0907802 |
BRACKET, Solenoids, 120 & 164 hp |
| 21 |
0908078 |
BRACKET, Solenoids, 140 hp |
| 22 |
0979774 |
SOLENOID |
| 23 |
0979775 |
CABLE ASSEMBLY |
| 23 |
0979859 |
CABLE ASSY, Tilt and trim, 140 & 165 hp |
| 25 |
0314844 |
KNIFE DISCONNECT |
| 28 |
0510471 |
CONNECTOR |
| 29 |
0510469 |
TAB |
| 31 |
0981849 |
FUSE & LEAD ASSY This part replaces 0979788. |
| 32 |
0510490 |
SCREW |
