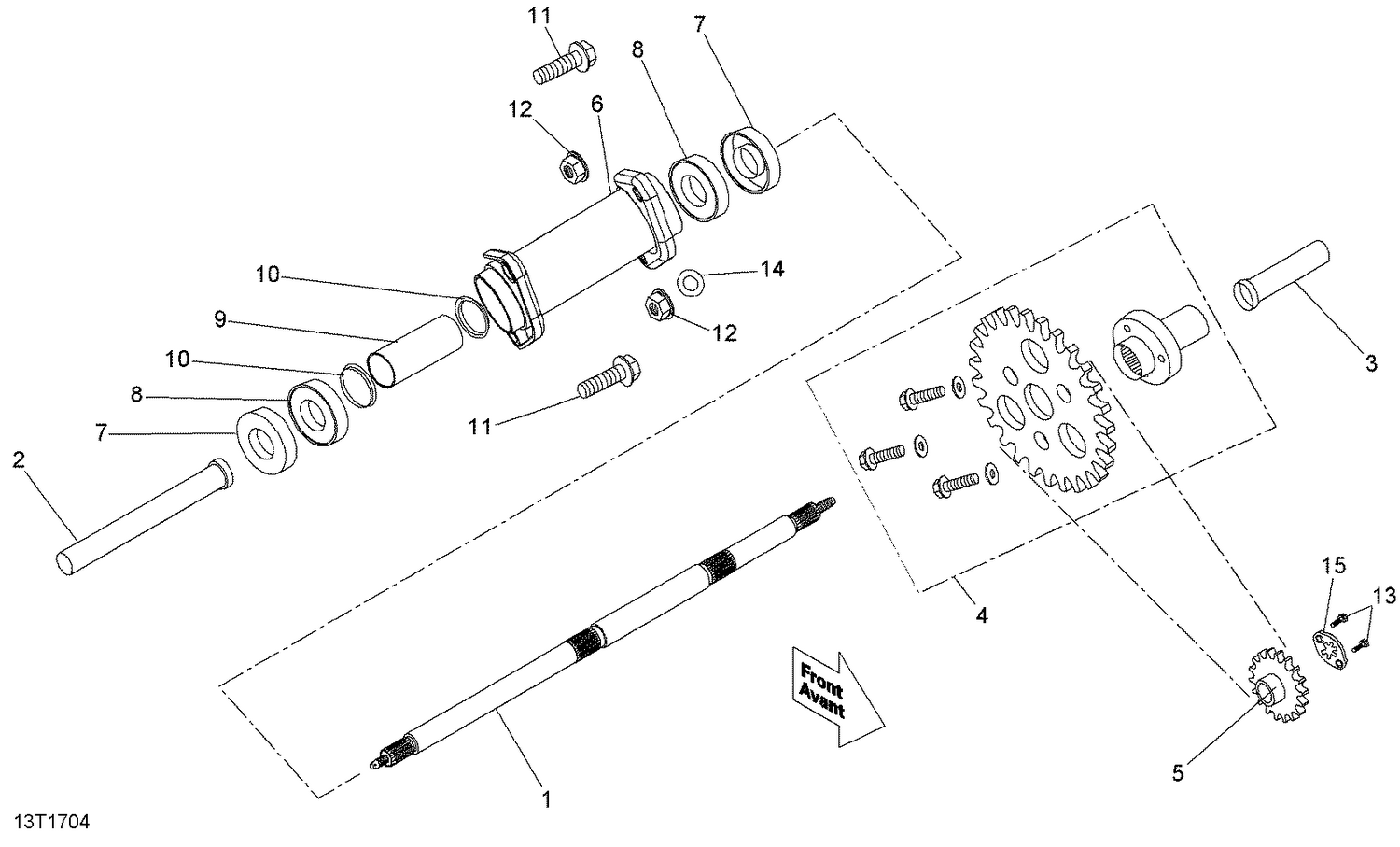

08- Drive System, Rear
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V23511MAA020 | Rear Wheel Axle |
| 2 | V44160MAA020BK | LH Spacer Collar |
| 3 | V44150MAA010BK | RH Spacer Collar |
| 4 | V15240DGE000LL | Cam Chain Sprocket 50T |
| 5 | V15232MAA020 | Cam Chain Sprocket 15T |
| 6 | V52350MAA100BK | Rear Wheel Axle Seat Ass'y |
| 7 | V91203MAA000 | Oil Seal |
| 8 | V961006006ZZ | Radial Ball Bearing This part replaces A961006006ZZ. |
| 9 | V44620MAA000 | Spacer This part replaces V45620MAA000. |
| 10 | V51312MAA010 | Spacer |
| 11 | V960001202801LL | Hex. Flange Bolt |
| 12 | A9035012000G | Hexagonal Nut M12 This part replaces A9035012000. |
| 13 | V9200006010 | Screw |
| 14 | V941011326020 | Washer |
