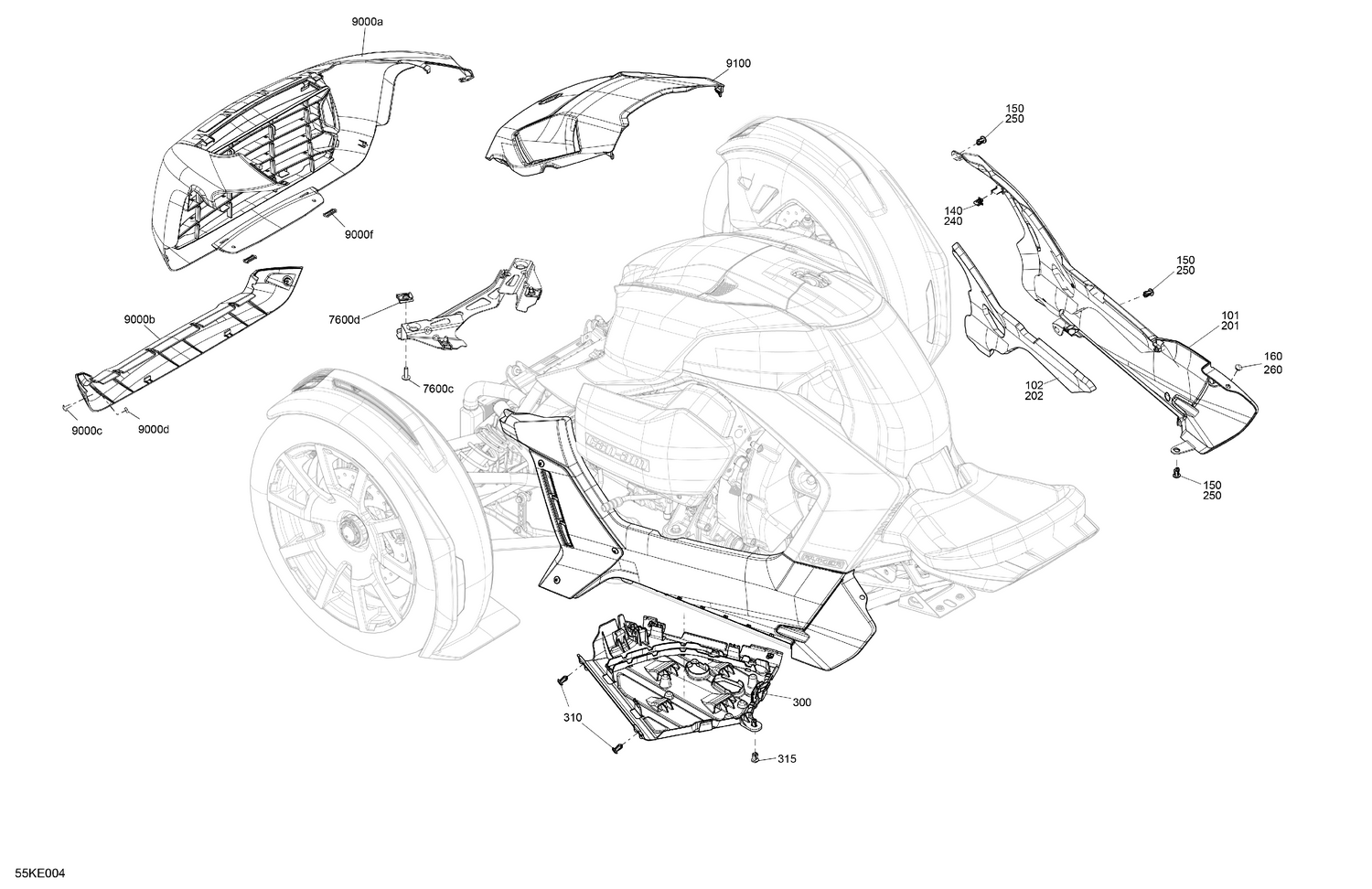

07- Body - Lower Section
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 101 | 219800524 | LH Rocker Panel Kit |
| 102 | 705013940 | LH Rocker Acoustic Foam |
| 140 | 517302785 | Edge Clip |
| 150 | 293150230 | Tuflok Plastic Rivet |
| 160 | 293730060 | Black, Dart 10 mm |
| 201 | 219800525 | RH Rocker Panel Kit |
| 202 | 705013941 | Acoustic Foam |
| 240 | 517302785 | Edge Clip |
| 250 | 293150230 | Tuflok Plastic Rivet |
| 260 | 293730060 | Black, Dart 10 mm |
| 300 | 705012364 | Skid Plate |
| 310 | 293150230 | Tuflok Plastic Rivet |
| 315 | 293150230 | Tuflok Plastic Rivet |
| 7600c | 250000722 | Torx Screw M6 X 20 |
| 7600d | 250100208 | Panel Nut M6 X 1.0 |
| 9000a | 705013345 | Deep Black, Front Fascia |
| 9000b | 705016804 | Lower Bumper Trim |
| 9000c | 250001059 | Torx Truss Head Screw W Nylon M5X14 |
| 9000d | 232852411 | Square Nut M5 X 0.8 |
| 9000f | 705004838 | Flat Clip |
