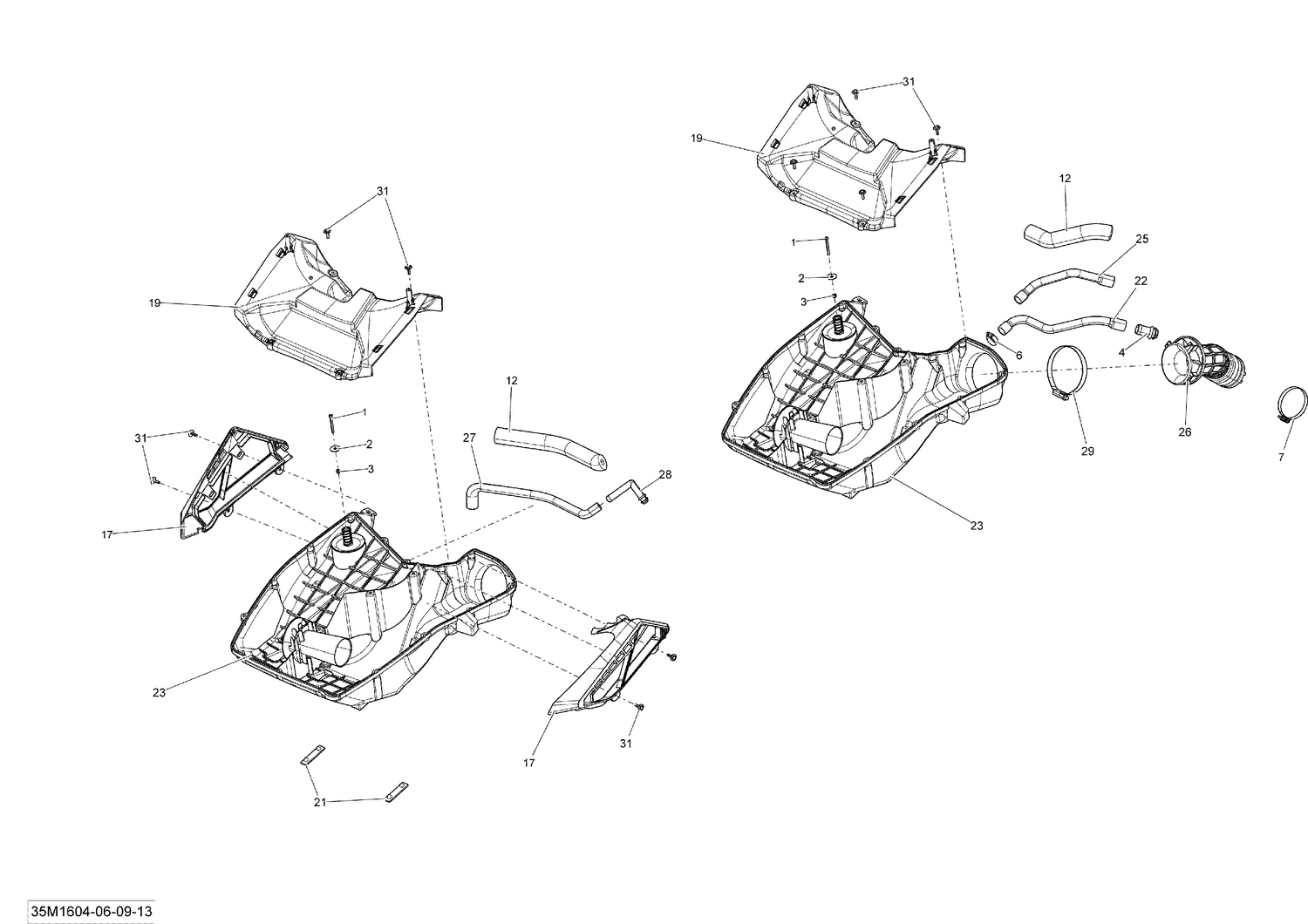

02- Air Intake System
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205444086 | Socket Head Screw M4 X 40 |
| 2 | 224060201 | Flat Washer |
| 3 | 232541414 | Elastic Stop Nut M4 |
| 4 | 273000234 | Breather Valve |
| 6 | 293650172 | Tridon Gear Clamp |
| 7 | 293650229 | Gemi Clamp |
| 12 | 508000648 | Tube Isolator |
| 17 | 508000730 | RH Air Filter |
| 17 | 508000731 | LH Air Filter |
| 19 | 508000732 | Air Duct |
| 21 | 508000744 | Stopper |
| 22 | 508000746 | Hose Vent |
| 23 | 508000747 | Secondary Chamber Ass'y |
| 25 | 508000774 | Formed Vent Hose |
| 26 | 508000827 | Intake Hose |
