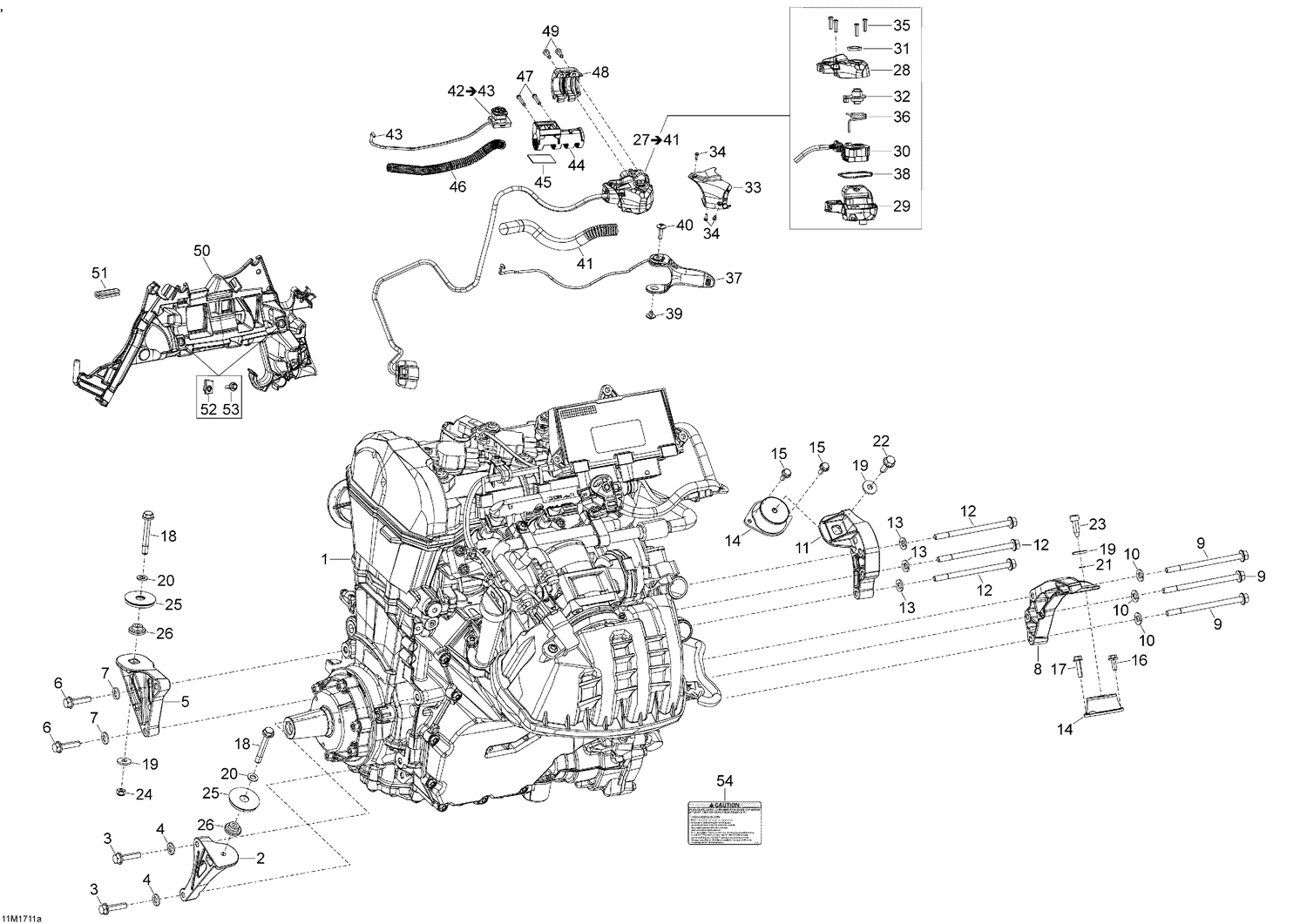

01- Engine And Engine Support - 900 ACE

01- Engine And Engine Support - 900 ACE

Parts (49)

RefPart NumberDescription
1 Not Available As Spare Part - Engine 900 ACE
2 512061139 Rear Support PTO
4 234281474 Conical Spring Washer M8
5 512061140 Front Support PTO
7 234281474 Conical Spring Washer M8
8 512061142 Rear Support MAG
9 207584544 Hex. Flange Screw M8 X 45, Scotch Grip
10 250200157 Conical Spring Washer M8
11 512061141 Front Support MAG
12 207584544 Hex. Flange Screw M8 X 45, Scotch Grip
13 250200157 Conical Spring Washer M8
14 512060729 Rubber Mount
15 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
16 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
17 207562534 Hex. Flange Screw M6 X 25, Scotch Grip
18 207586044 Hex. Flange Screw M8 X 60, Scotch Grip
19 503183200 Yellow, Washer
20 250200008 Flat Washer With Teflon 8 mm
21 293300123 O-Ring
22 250000257 Cone Screw, M8 X 30
23 250000639 Cone Screw, M8 X 25
24 232581414 Hex. Elastic Stop Nut M8
25 512061536 Engine Stopper This part replaces 512060826.
26 512060285 Spacer
28 Not Available As Spare Part - Housing
29 Not Available As Spare Part - Housing
30 Not Available As Spare Part - Sensor
31 Not Available As Spare Part - Shaft Seal
32 Not Available As Spare Part - Swivel
33 512060862 Cap
34 250000623 Torx Screw M2.9 x 9.5
35 250000671 Torx Screw
36 Not Available As Spare Part - Spring
37 Not Available As Spare Part - Handle
38 Not Available As Spare Part - O Ring
39 Not Available As Spare Part - Screw
40 250000528 Torx Screw M5 X 20
41 515177716 Protector Tube
43 515175232 Male Terminal
44 512061453 Switch Support This part replaces 512060844.
45 294000973 Friction Tape
46 515177946 Protector Tube
47 250000263 Torx Screw #8-18
48 512060987 Front Housing
49 250000632 Torx Screw M5 X 14
50 512060994 Module Support
51 219704354 Trim 1000Mm Long
52 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
53 207552044 Hex. Flange Screw M5 X 20, Scotch Grip
