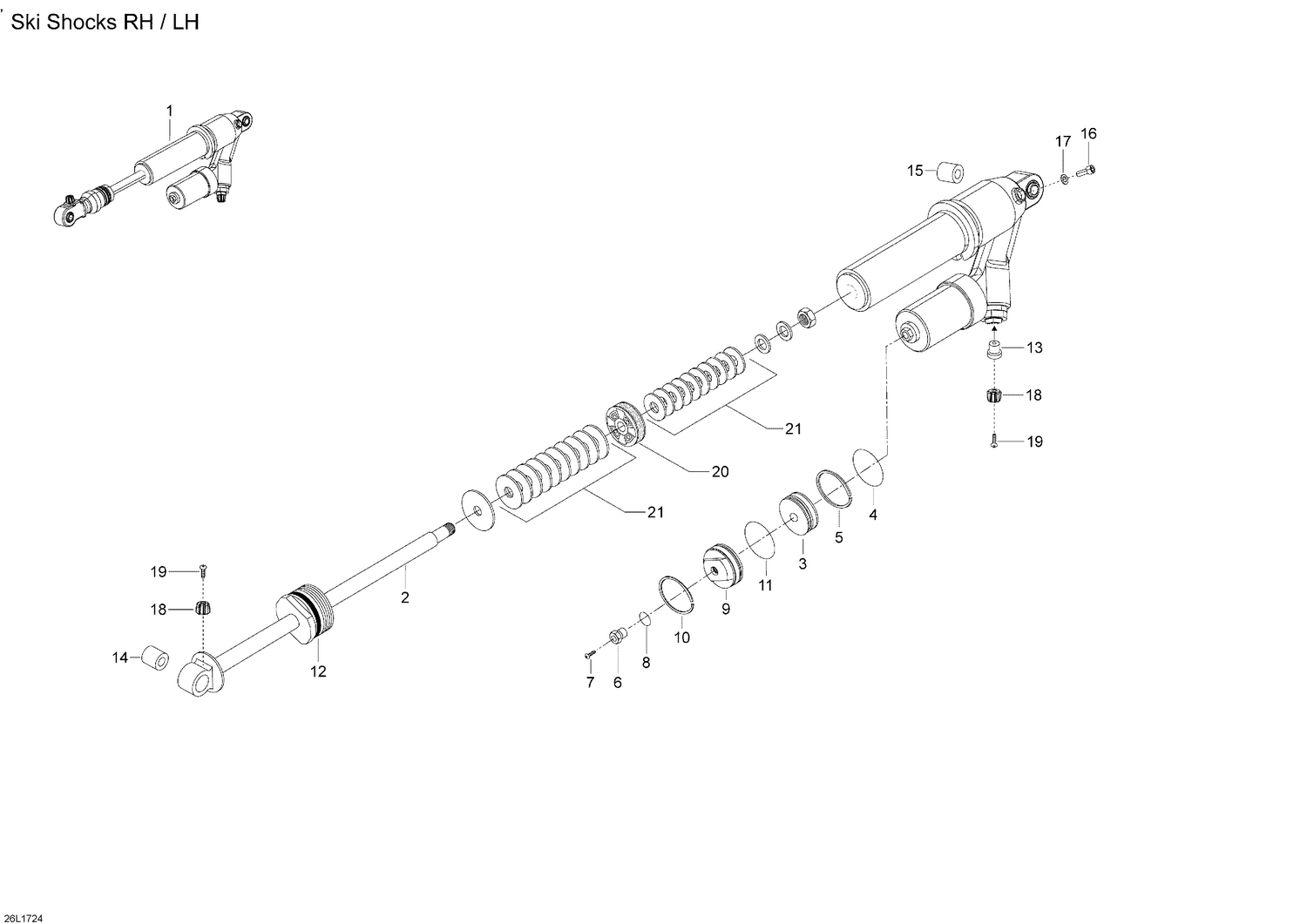

| Ref | Part Number | Description |
|---|
| 1 |
505073694 |
LH FRONT SHOCK - Call your local BRP dealership |
| 1 |
505073695 |
RH FRONT SHOCK - Call your local BRP dealership |
| 2 |
Not |
Available As Spare Part - Rod Ass'y |
| 3 |
619300016 |
Floating Piston |
| 4 |
415093807 |
O-Ring |
| 5 |
415093806 |
Piston Ring |
| 6 |
505070398 |
Air Valve |
| 7 |
505070399 |
Screw |
| 8 |
505070400 |
O-Ring |
| 9 |
Not |
Available As Spare Part - Guide |
| 10 |
619300006 |
Stop Ring |
| 11 |
415093804 |
O-Ring |
| 12 |
Not |
Available As Spare Part - Seal Carrier Ass'y |
| 13 |
Not |
Available As Spare Part - Valve Ass´y |
| 14 |
230055 |
Rubber Bush |
| 15 |
619300028 |
Rubber Bush |
| 16 |
619300026 |
Bolt |
| 17 |
619000025 |
O Ring |
| 18 |
505072753 |
Adjustment Knob |
| 19 |
250000644 |
Allen Screw M3 X 0.5 X 10 |
| 20 |
Not |
Available As Spare Part - Piston 40mm |
| 21 |
230029 |
Shim 40/46 mm, 20 x 0,114 |
| 21 |
230030 |
Shim 40/46 mm, 20 x 0,152 |
| 21 |
230031 |
Shim 40/46 mm, 20 x 0,203 |
| 21 |
230032 |
Shim 40/46 mm, 20 x 0,254 |
| 21 |
230033 |
Shim 40/46 mm, 34 x 0,114 |
| 21 |
230034 |
Shim 40/46 mm, 34 x 0,152 |
| 21 |
230035 |
Shim 40/46 mm, 34 x 0,203 |
| 21 |
230036 |
Shim 40/46 mm, 34 x 0,254 |
| 21 |
230037 |
Shim 40/46 mm, 36 x 0,114 |
| 21 |
230040 |
Shim 40/46 mm, 38 x 0,152 |
| 21 |
230041 |
Shim 40/46 mm, 38 x 0,203 |
| 21 |
230042 |
Shim 40/46 mm, 38 x 0,254 |
| 21 |
230082 |
Shim 40/46 mm, 32 x 0,114 |
| 21 |
503189038 |
Shim 40/46 mm, 36 x 0,254 |
| 21 |
619300022 |
Shim 40/46 mm, 32 x 0,305 |
| 21 |
619300056 |
Shim 40/46 mm, 30 x 0,305 |
| 21 |
619300059 |
Shim 40/46 mm, 32 x 0,254 |
| 21 |
619300060 |
Shim 40/46 mm, 17 x 0,114 |
| 21 |
619300067 |
Shim 40/46 mm, 18 x 0,152 |
| 21 |
619300068 |
Shim 40/46 mm, 18 x 0,114 |
| 21 |
619300069 |
Shim 40/46 mm, 17 x 0,203 |
| 21 |
619300070 |
Shim 40/46 mm, 34 x 0,305 |
| 21 |
619300095 |
Shim 40/46 mm, 24 x 0,254 |
| 21 |
619300097 |
Shim 40/46 mm, 20 x 0,305 |
| 21 |
619300098 |
Shim 40/46 mm, 22 x 0,203 |
| 21 |
619300099 |
Shim 40/46 mm, 26 x 0,254 |
| 21 |
619300100 |
Shim 40/46 mm, 26 x 0,305 |
| 21 |
619300101 |
Shim 40/46 mm, 28 x 0,114 |
| 21 |
619300102 |
Shim 40/46 mm, 28 x 0,203 |
| 21 |
619300103 |
Shim 40/46 mm, 28 x 0,254 |
| 21 |
619300104 |
Shim 40/46 mm, 30 x 0,152 |
| 21 |
619300105 |
Shim 40/46 mm, 36 x 0,305 |
| 21 |
619300106 |
Shim 40/46 mm, 38 x 0,305 |
| 21 |
619300112 |
Shim 40/46 mm, 40 x 0,203 |
| 21 |
619300113 |
Shim 40/46 mm, 30 x 0,254 |
| 21 |
619300134 |
Shim 40/46 mm, 22 x 0,254 |
| 21 |
619300137 |
Shim 40/46 mm, 32 x 0,152 |
| 21 |
619300138 |
Shim 40/46 mm, 32 x 0,203 |
| 21 |
619300140 |
Shim 40/46 mm, 22 x 0,152 |
| 21 |
619300141 |
Shim 40/46 mm, 26 x 0,152 |
| 21 |
619300142 |
Shim 40/46 mm, 36 x 0,203 |
| 21 |
619300143 |
Shim 40/46 mm, 22 x 0,114 |
| 21 |
619300144 |
Shim 40/46 mm, 22 x 0,305 |
| 21 |
619300145 |
Shim 40/46 mm, 24 x 0,114 |
| 21 |
619300146 |
Shim 40/46 mm, 24 x 0,152 |
| 21 |
619300147 |
Shim 40/46 mm, 24 x 0,203 |
| 21 |
619300148 |
Shim 40/46 mm, 24 x 0,305 |
| 21 |
619300149 |
Shim 40/46 mm, 26 x 0,114 |
| 21 |
619300150 |
Shim 40/46 mm, 26 x 0,203 |
| 21 |
619300151 |
Shim 40/46 mm, 28 x 0,152 |
| 21 |
619300152 |
Shim 40/46 mm, 28 x 0,305 |
| 21 |
619300153 |
Shim 40/46 mm, 30 x 0,114 |
| 21 |
619300154 |
Shim 40/46 mm, 30 x 0,203 |
| 21 |
619300155 |
Shim 40/46 mm, 36 x 0,152 |
| 21 |
619300157 |
Shim 40/46 mm, 40 x 0,152 |
| 21 |
619300158 |
Shim 40/46 mm, 40 x 0,254 |
| 21 |
Not |
Available As Spare Part - Shim 40/46 mm, 17 x 0,152 |
