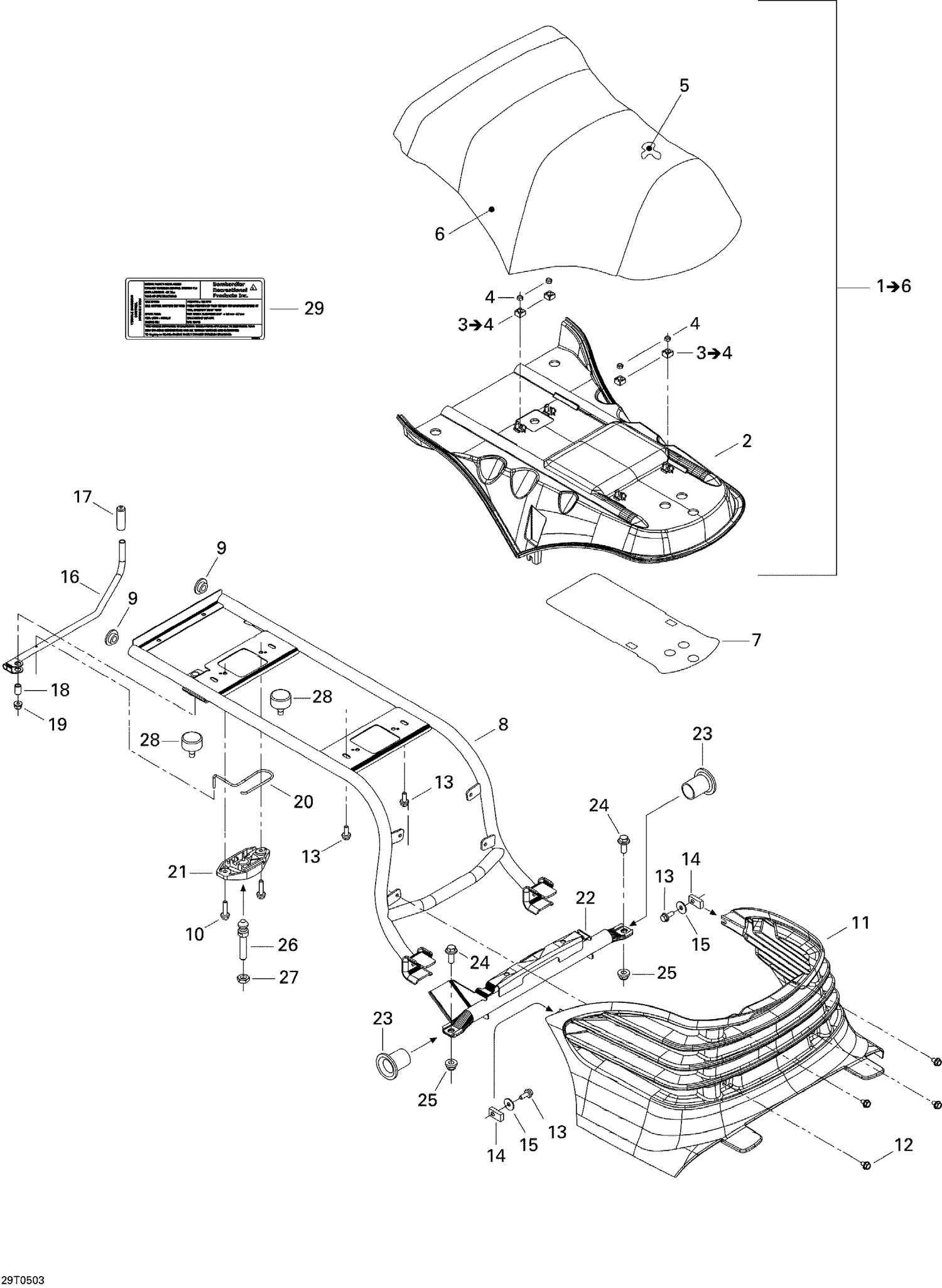

09- Seat
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Seat Base Ass'y |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | Not | Available As Spare Part - Seat Foam |
| 6 | 708000290 | Seat Cover |
| 7 | 708000434 | Reflective Sheet |
| 8 | 708000386 | Seat Support, black |
| 9 | 705003932 | Grommet This part replaces 709200115. |
| 10 | 207662544 | Hex. Flange Screw M6 X 25 |
| 11 | 708000276 | MOTOR COVER - Call your local BRP dealership |
| 12 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 13 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 14 | 708000042 | Nut Housing M6 |
| 15 | 224061201 | Flat Washer |
| 16 | 708000074 | Lever, Black |
| 17 | 708000087 | Vinyl Cap, Black |
| 18 | 293900078 | Sleeve This part replaces 708000084. |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 708000073 | SPRING - Call your local BRP dealership |
| 21 | 708000034 | Latch Base |
| 22 | 708000044 | Seat Pivot, Black |
| 23 | 708000019 | SEAT BUSHING - Call your local BRP dealership |
| 24 | 207682046 | Hex. Flange Screw M8 X 20 |
| 25 | 233281416 | Hex. Elastic Flange Nut M8 |
| 26 | 291000945 | SEAT STUD - Call your local BRP dealership |
| 27 | 232100600 | Hex. Jam Nut M10 |
| 28 | 708000758 | Rubber Stopper This part replaces 708000006. |
