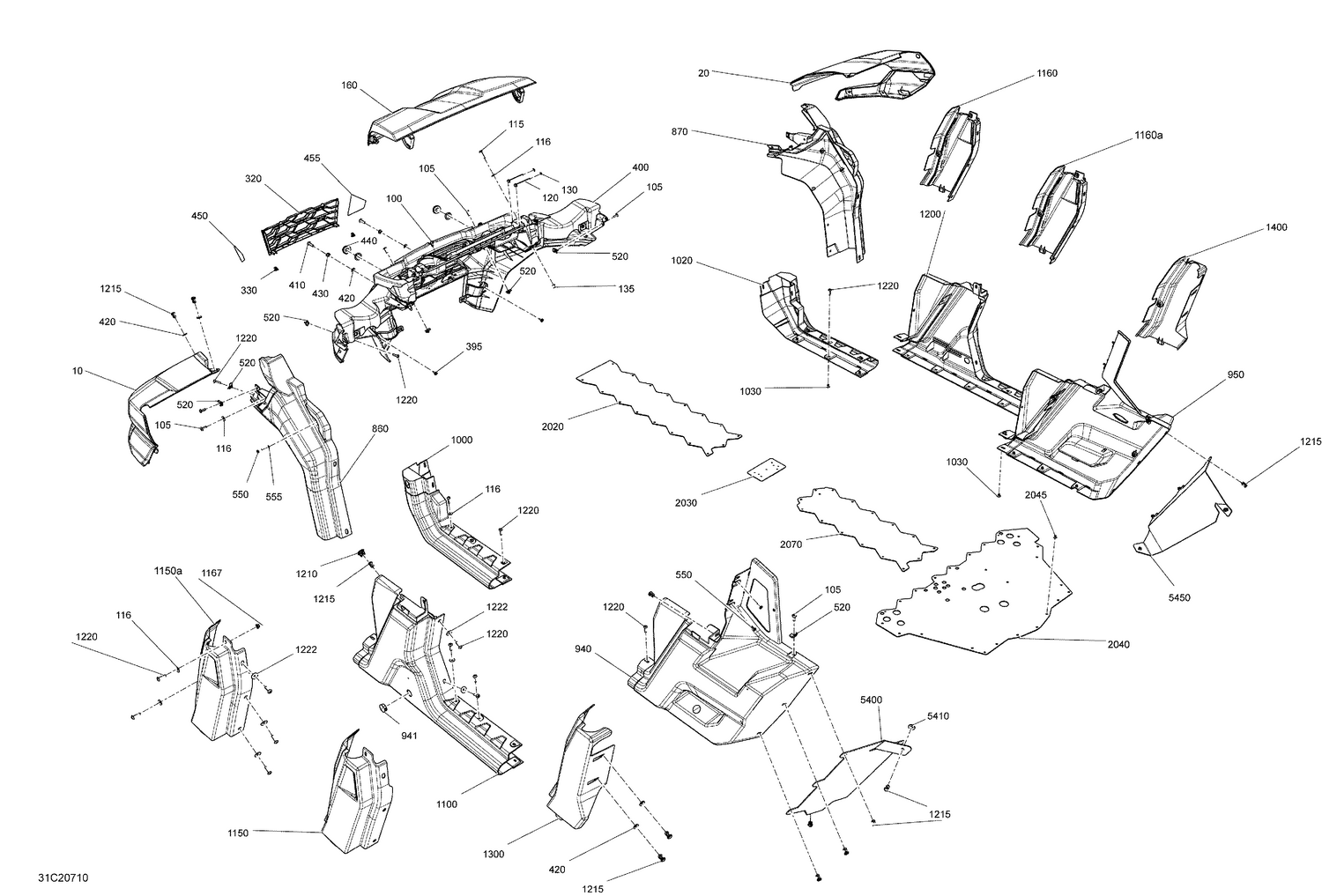

09- Body - Front - Side Section
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 705013766 | Multi Purpose Support |
| 105 | 250000722 | Torx Screw M6 X 20 |
| 115 | 210263050 | Hex. Flange Screw M6 X 30 |
| 116 | 234062670 | Stainless Steel Flat Washer |
| 120 | 207667554 | Hex. Flange Screw M6 X 75 |
| 130 | 732610072 | Push Nut |
| 135 | 293900125 | Bushing |
| 320 | 705013590 | Grille |
| 330 | 517306478 | Clip |
| 395 | 250000725 | Screw M4 X 16 |
| 400 | 705013591 | Deep Black, Front Fascia |
| 410 | 250000886 | Torx Screw M8 X 30 |
| 420 | 503192494 | Washer |
| 430 | 233281414 | Hex. Flange Elastic Nut M8 |
| 440 | 705010718 | Grommet |
| 450 | 704905072 | LH Front Reflector |
| 455 | 704905073 | RH Front Reflector |
| 520 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 550 | 250000720 | Torx Screw K50 X 16 |
| 555 | 234051670 | Flat Washer M5 |
| 860 | 705008152 | LH Front Lateral Panel |
| 870 | 705008153 | RH Front Lateral Panel |
| 940 | 705013658 | Deep Black, LH Rear Body Panel |
| 941 | 414916600 | Black, Nylon Cap |
| 950 | 705013659 | Deep Black, RH Rear Body Panel |
| 1000 | 705019037 | Deep Black, LH Central Panel This part replaces 705008699. |
| 1020 | 705019038 | Deep Black, RH Central Panel This part replaces 705008700. |
| 1030 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1100 | 705013660 | LH Middle Side Panel |
| 1150 | 705010601 | LH Middle Cage Cover |
| 1150 | 705011955 | LH Middle Cage Cover |
| 1150a | 705010601 | LH Middle Cage Cover |
| 1160a | 705010602 | RH Middle Cage Cover |
| 1167 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 1200 | 705013661 | RH Middle Side Panel |
| 1210 | 707900133 | Insert |
| 1215 | 293150230 | Tuflok Plastic Rivet |
| 1220 | 250000807 | Torx Truss Screw M6 X 25 |
| 1222 | 250200162 | Flat Washer M6.6 X 22 |
| 1300 | 715003564 | LH Rear Cage Cover Kit |
| 1400 | 715003565 | RH Rear Cage Cover Kit |
| 2020 | 705017204 | Central Skid Panel This part replaces 705009151. |
| 2030 | 705010884 | Connection Plate |
| 2040 | 705017205 | Rear Skid Panel This part replaces 705015114. |
| 2045 | 293150104 | Pop Rivet 3/16" |
| 2070 | 705010588 | Rear Central Skid Plate |
| 5400 | 705016336 | LH Rear Deflector This part replaces 705013057. |
| 5410 | 292001663 | Flat Washer 8 mm, Nylon |
