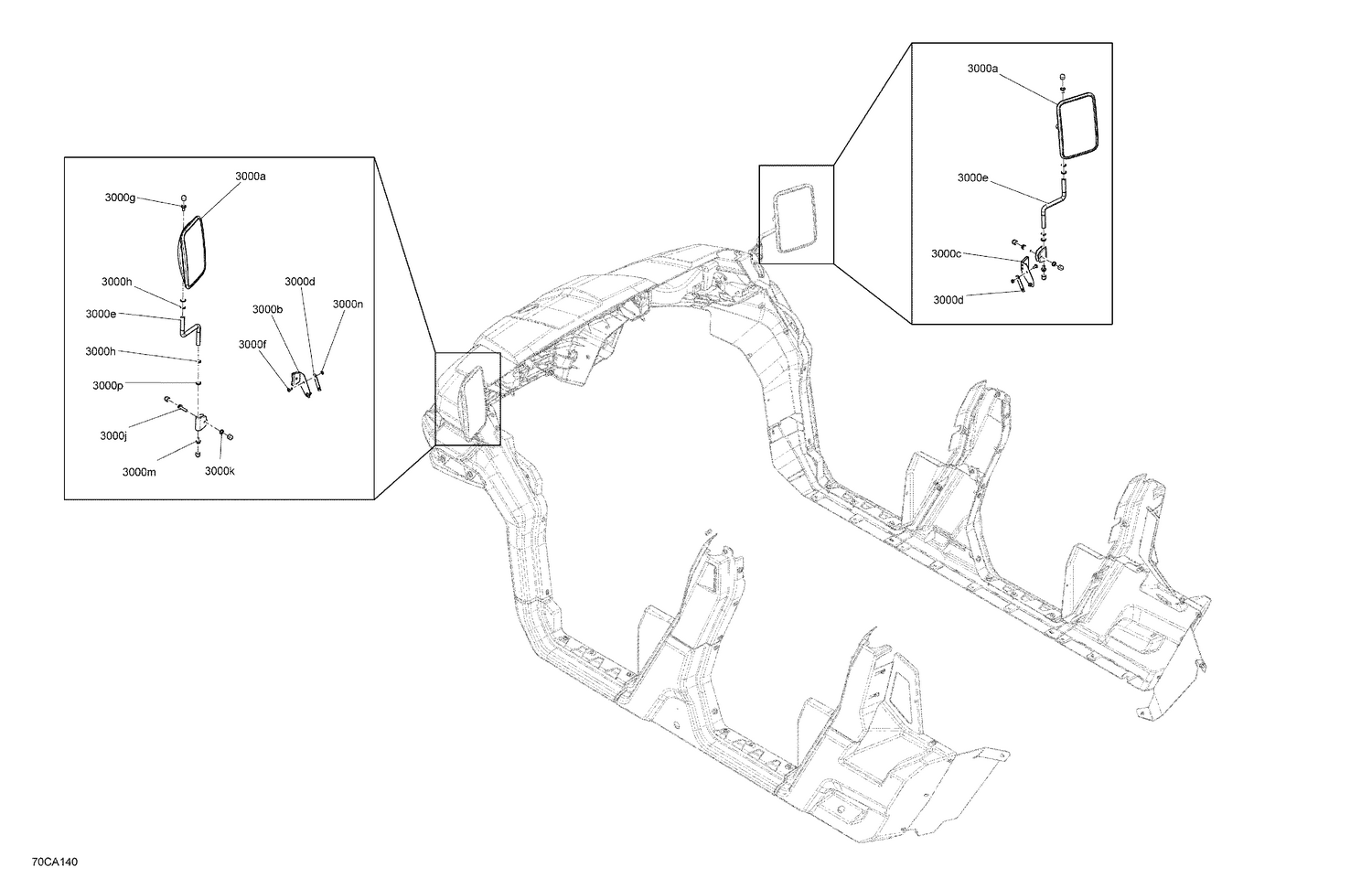

07- Body - System - Mirrors
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 3000a | 705011497 | Mirror |
| 3000b | 705012151 | LH Mirror Support |
| 3000c | 705012152 | RH Mirror Support |
| 3000d | 705010469 | Plate |
| 3000e | 705012671 | Mirror Rod |
| 3000f | 250000348 | Torx Truss Screw M6 X 16 |
| 3000g | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 3000h | 293370131 | Snap Ring |
| 3000j | 207683544 | Hex. Flange Screw M8 X 35 |
| 3000k | 233281414 | Hex. Flange Elastic Nut M8 |
| 3000m | 250000758 | Torx Screw M6 X 25 |
| 3000n | 233261494 | Hex. Flange Elastic Nut M6 |
