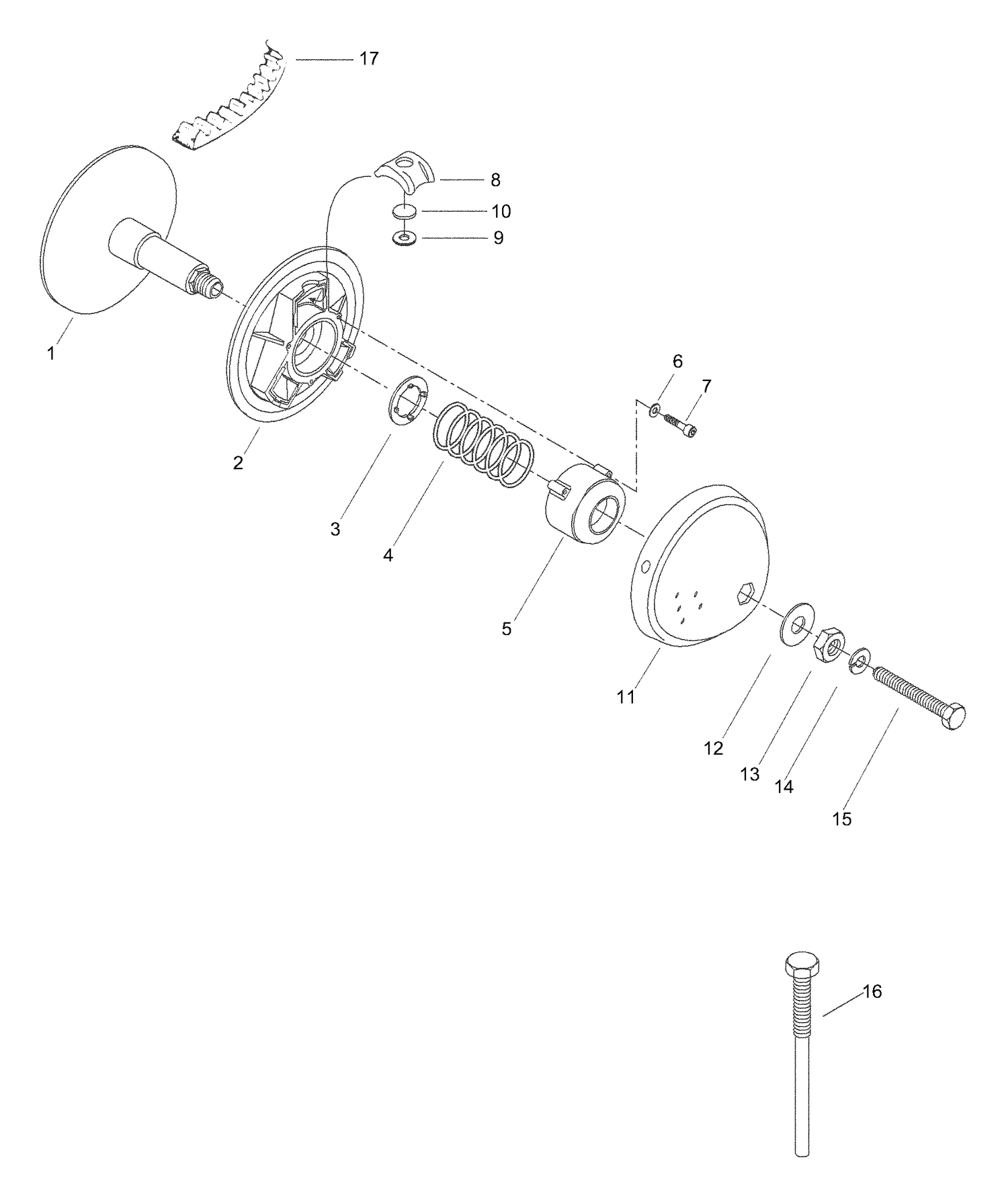

05- Clutch
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417121200 | Fixed half pulley |
| 2 | 417121300 | Sliding half pulley |
| 3 | 417116200 | Guide washer |
| 4 | 417118400 | Spring, red7blue |
| 5 | 417121400 | Spring cover |
| 6 | 420245370 | WASHER - Call your local BRP dealership |
| 7 | 205064086 | Screw M6x40 |
| 8 | 417118100 | CENTRIFUGE BLOCK - Call your local BRP dealership |
| 9 | 417114500 | CAPSULE - Call your local BRP dealership |
| 10 | 417120400 | ADJUSTMENT WEIGH - Call your local BRP dealership |
| 11 | 417125100 | Domed cup |
| 12 | 417122400 | Washer |
| 13 | 417118300 | NUT - Call your local BRP dealership |
| 14 | 20024 | Spring washer |
| 15 | 417113800 | BOLT - Call your local BRP dealership |
| 16 | 529031400 | Puller inner half |
