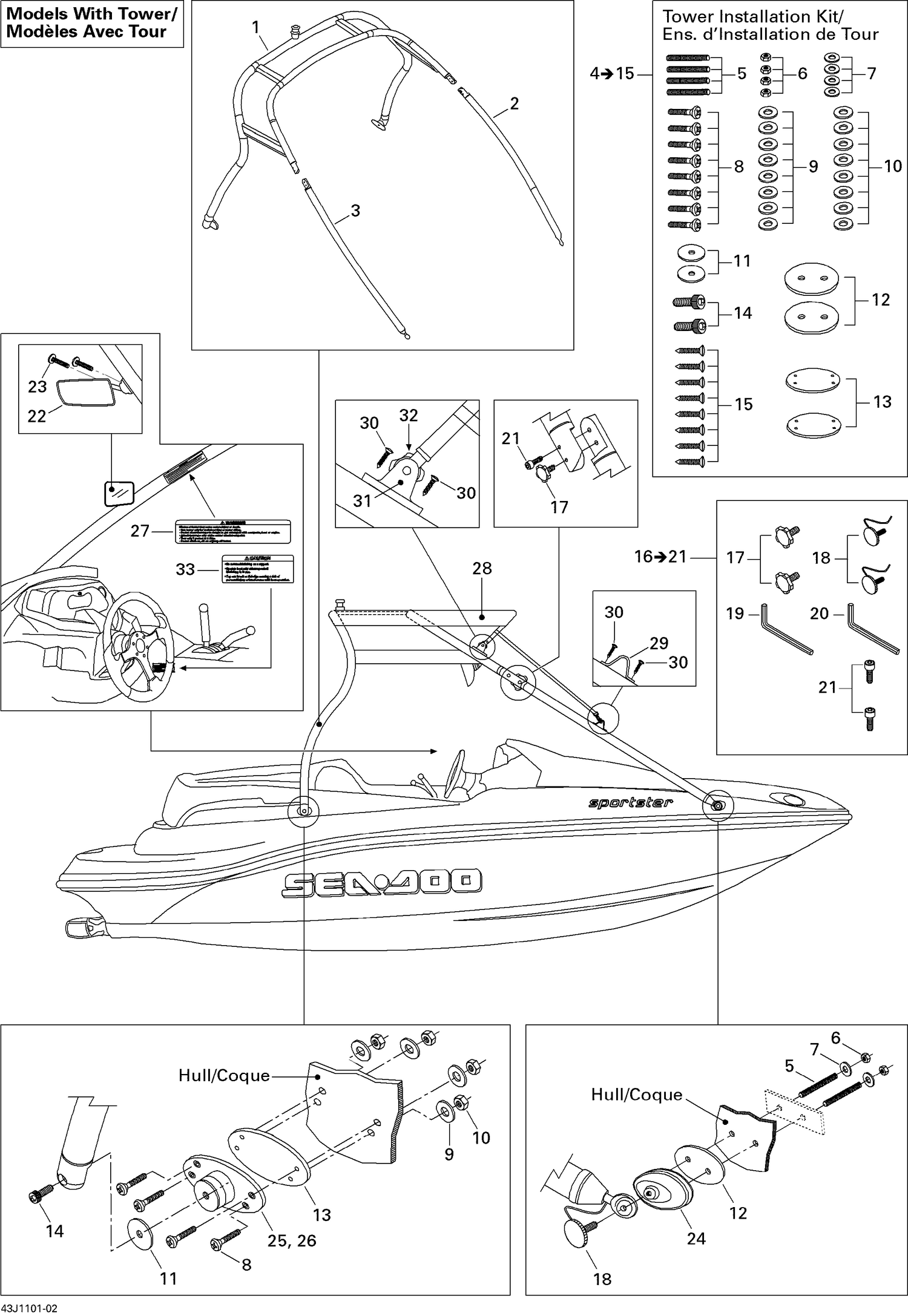

| Ref | Part Number | Description |
|---|
| 1 |
204950180 |
Upper Tower |
| 2 |
204950224 |
LOWER TOWER, PORT - Call your local BRP dealership |
| 3 |
204950225 |
LOWER TOWER, STARBOARD - Call your local BRP dealership |
| 5 |
204100152 |
Threaded Stud |
| 6 |
204100131 |
LOCK NUT 1/2? - Call your local BRP dealership |
| 7 |
204100132 |
FENDER WASHER - Call your local BRP dealership |
| 8 |
204100014 |
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership |
| 9 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 10 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - Washer, Nylon |
| 12 |
204130272 |
Front Gasket |
| 13 |
204130273 |
REAR GASKET - Call your local BRP dealership |
| 14 |
204100190 |
Socket Screw 1/2-13 X 1-1/2" |
| 15 |
204100240 |
PHILLIP HEAD SCREW 8-18 X 1 - Call your local BRP dealership |
| 17 |
204071433 |
Fluted Knob |
| 18 |
204950176 |
FLUTED KNOB - Call your local BRP dealership |
| 19 |
Not |
Available As Spare Part - Allen Wrench, 8 mm |
| 20 |
Not |
Available As Spare Part - Allen Wrench, 3/8" |
| 21 |
204100135 |
HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership |
| 22 |
295100386 |
SKI MIRROR - Call your local BRP dealership This part replaces 204071420. |
| 23 |
204100129 |
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership |
| 24 |
204950143 |
FRONT TOWER SUPPORT, ANODIZED - Call your local BRP dealership |
| 25 |
204950178 |
Tower Mount Support, Starboard |
| 26 |
204950226 |
Tower Mount Support, Port |
| 27 |
204902068 |
WARNING LABEL, TOWER - Call your local BRP dealership |
| 28 |
204950213 |
BIMINI TOP - Call your local BRP dealership |
| 29 |
269800358 |
STRAP EYE, STAINLESS - Call your local BRP dealership |
| 30 |
269800422 |
SCREW 8-18 X 1 - Call your local BRP dealership |
| 31 |
204072822 |
Bimini Top Mount Support |
| 32 |
204072823 |
BIMINI TOP KNOB - Call your local BRP dealership |
