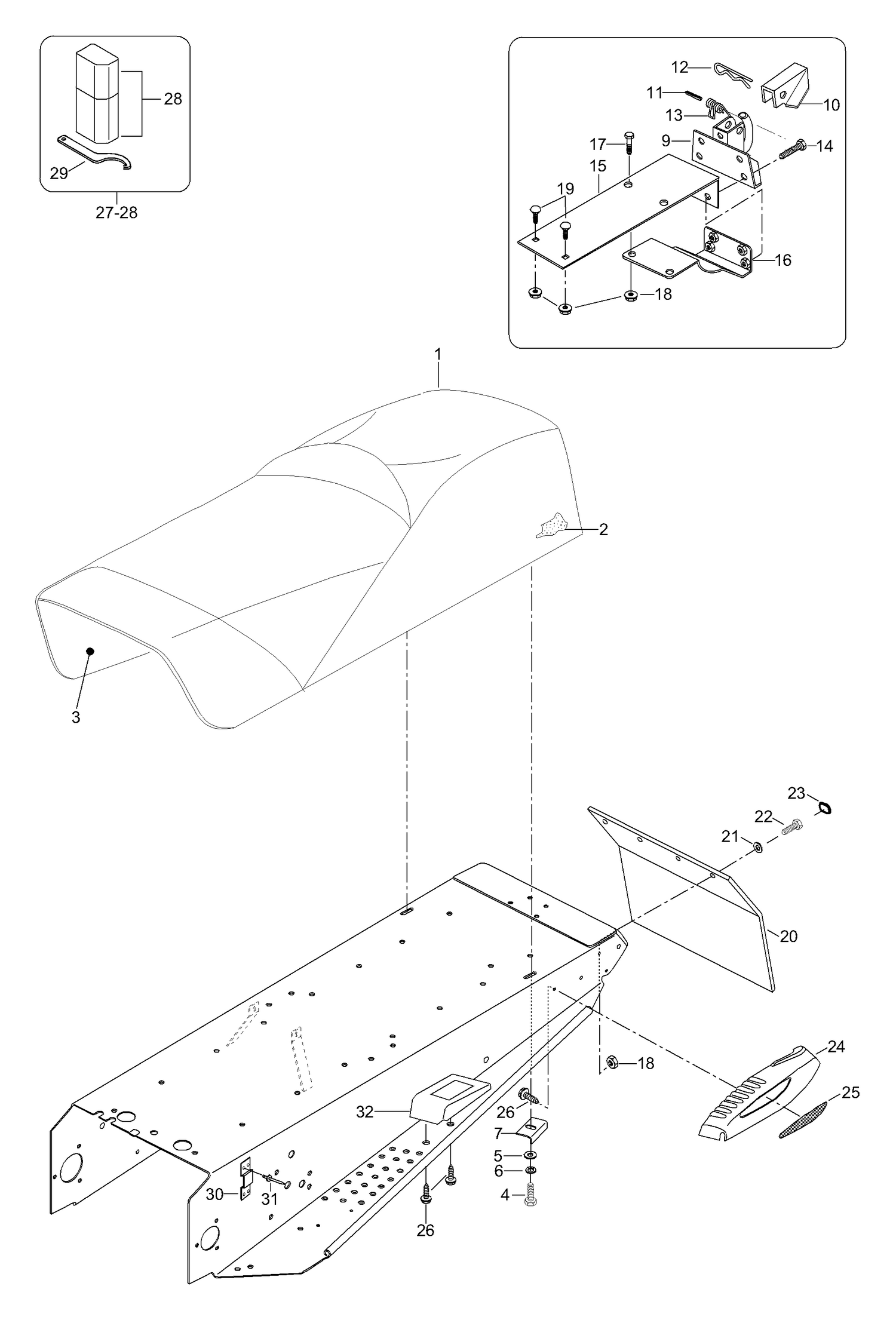

| Ref | Part Number | Description |
|---|
| 1 |
605148618 |
Seat cover |
| 2 |
5146604 |
Seat foam |
| 3 |
5146603 |
Seat base |
| 4 |
40027 |
Screw M8 x 40 |
| 5 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 6 |
20014 |
Lock washer |
| 7 |
605449812 |
Support plate |
| 9 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 10 |
5440767 |
Lock |
| 11 |
41012 |
Spring Pin |
| 12 |
41029 |
Needle Pin |
| 13 |
545693 |
SPRING - Call your local BRP dealership |
| 14 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 15 |
605450084 |
Bracket |
| 16 |
605350085 |
Bracket |
| 17 |
40030 |
Screw M6 x 20 |
| 18 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 19 |
40866 |
Locking screw M6 x 20 |
| 20 |
5246859 |
Snow guard |
| 21 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 22 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 23 |
415073300 |
Cap |
| 24 |
861777700 |
RH MOULDING KIT - Call your local BRP dealership |
| 24 |
861777800 |
L.H. moulding |
| 25 |
516000241 |
R.H. rear reflector |
| 25 |
516000242 |
L.H. rear reflector |
| 26 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 28 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 29 |
529000035 |
Wrench adjuster This part replaces 529032900. |
| 30 |
5447908 |
Bracket |
| 31 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 32 |
572088700 |
GT SE Foot Rest RH |
